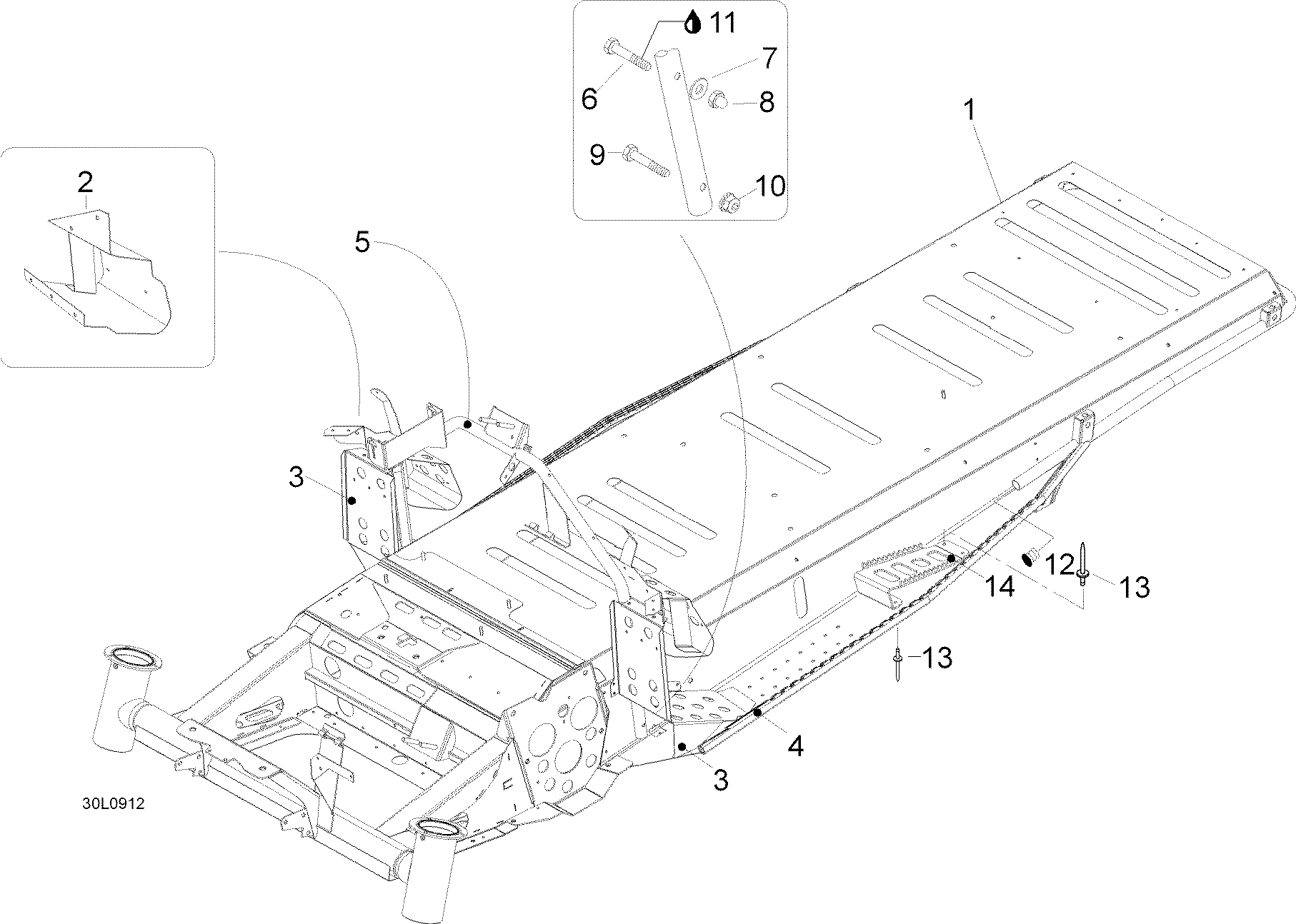

09- Frame для BRP Lynx YETI Pro Army V-800 - 2009
-
№АртикулНазвание
-
1605155168 Frame ass'y. Includes 1 to 4Frame ass'y. Includes 1 to 4
-
2605253504 R.H. FootrestR.H. Footrest
-
2605253505 L.H. FootrestL.H. Footrest
-
3605153502 L.H. SupportL.H. Support
-
3605153503 R.H. SupportR.H. Support
-
4605253506 R.H. SupportR.H. Support
-
4605253507 L.H. SupportL.H. Support
-
428210 PlugPlug
-
5605153995 Steering supportSteering support
-
640003 Hex. screw M6 x 35Hex. screw M6 x 35
-
720003 Washer A6,4Washer A6,4
-
833051 Nut M6Nut M6
-
940002 Hex. screw M6 x 40Hex. screw M6 x 40
-
1033200 Elastic flanged nut M6Elastic flanged nut M6
-
11293800060 Loctite 243 10mlLoctite 243 10ml
-
1228210 PluggPlugg
-
1336489 RivetRivet
-
14605355909 Footrest, passanger (white)Footrest, passanger (white)
