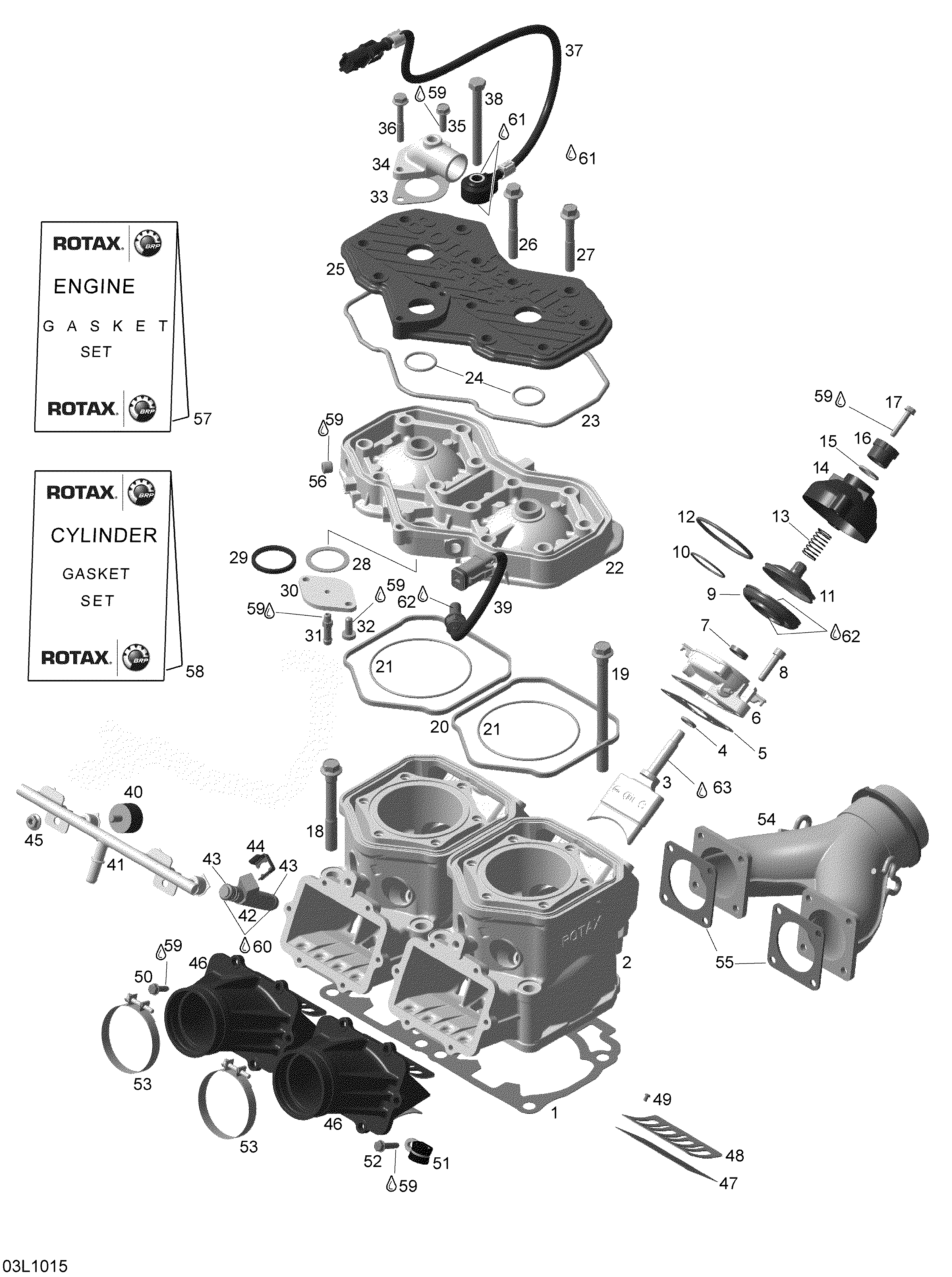

01- Cylinder And Cylinder Head для BRP Lynx Xtrim Commander 600 SDI - 2010
-
№АртикулНазвание
-
1420431160 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
1420431161 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
1420931894 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
1420931895 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
2420613944 Cylinder H.O. SDICylinder H.O. SDI
-
3420854650 Exhaust ValveExhaust Valve
-
4420430110 O-RingO-Ring
-
5420931542 GasketGasket
-
6420854454 Valve HousingValve Housing
-
7420950730 Oil SealOil Seal
-
8205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
9420260729 BellowsBellows
-
10420838255 Hose SpringHose Spring
-
11420854449 Exhaust ValveExhaust Valve
-
12420939280 Hose SpringHose Spring
-
13420239942 SpringSpring
-
14420911558 Valve CoverValve Cover
-
15420430220 O-RingO-Ring
-
16420241221 Adjuster ScrewAdjuster Screw
-
17420241270 Hex. Taptite Screw M5 X 25Hex. Taptite Screw M5 X 25
-
18420640524 Hex. Collar ScrewHex. Collar Screw
-
19420640534 Hex. Collar ScrewHex. Collar Screw
-
20420931590 Rubber RingRubber Ring
-
21293300026 O-RingO-Ring
-
22420613704 Cylinder HeadCylinder Head
-
23420950320 O-RingO-Ring
-
24420430782 O-RingO-Ring
-
25420923465 Cylinder Head CoverCylinder Head Cover
-
26420841306 Hex. Collar Screw M8 X 65Hex. Collar Screw M8 X 65
-
27420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
28420927745 Retaining DiskRetaining Disk
-
29420931272 Sealing RingSealing Ring
-
30420926267 CoverCover
-
31420924720 Hose NippleHose Nipple
-
32420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
33420850338 GasketGasket
-
34420922062 Bent Outlet SocketBent Outlet Socket
-
35420941250 Hex. Tapping Screw M6 X 20Hex. Tapping Screw M6 X 20
-
36420941451 Hex. Collar Screw M6 X 40Hex. Collar Screw M6 X 40
-
37270000484 Noise SensorNoise Sensor
-
38420941221 Hex. Screw M8 X 80Hex. Screw M8 X 80
-
39420664505 Temperarure SensorTemperarure Sensor
-
40420960065 StopperStopper
-
41420874492 Rail FuelRail Fuel
-
42420874485 Fuel InjectorsFuel Injectors
-
43420631220 O-RingO-Ring
-
44420851800 ClipClip
-
45420442172 NutNut
-
46420667530 Socket Carburetor Ass'y. Includes 46 to 49Socket Carburetor Ass'y. Includes 46 to 49
-
47420924680 Reed PedalReed Pedal
-
48420924695 Reed Pedal StopReed Pedal Stop
-
49420941215 Phillips Screw M3 X 5Phillips Screw M3 X 5
-
50420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
51420851250 ClampClamp
-
52420841550 Tapping Screw M5 X 22Tapping Screw M5 X 22
-
53420851065 ClampClamp
-
54420673420 Exhaust ManifoldExhaust Manifold
-
55420850552 GasketGasket
-
56420240480 Plug ScrewPlug Screw
-
57420889923 Gasket Set, EngineGasket Set, Engine
-
58420889927 Gasket Set, CylinderGasket Set, Cylinder
-
59293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
61293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
62420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
63420297433 Molykote G-N, 50 gMolykote G-N, 50 g
-
64413802900 Injection Oil, 12 X 1 LiterInjection Oil, 12 X 1 Liter
