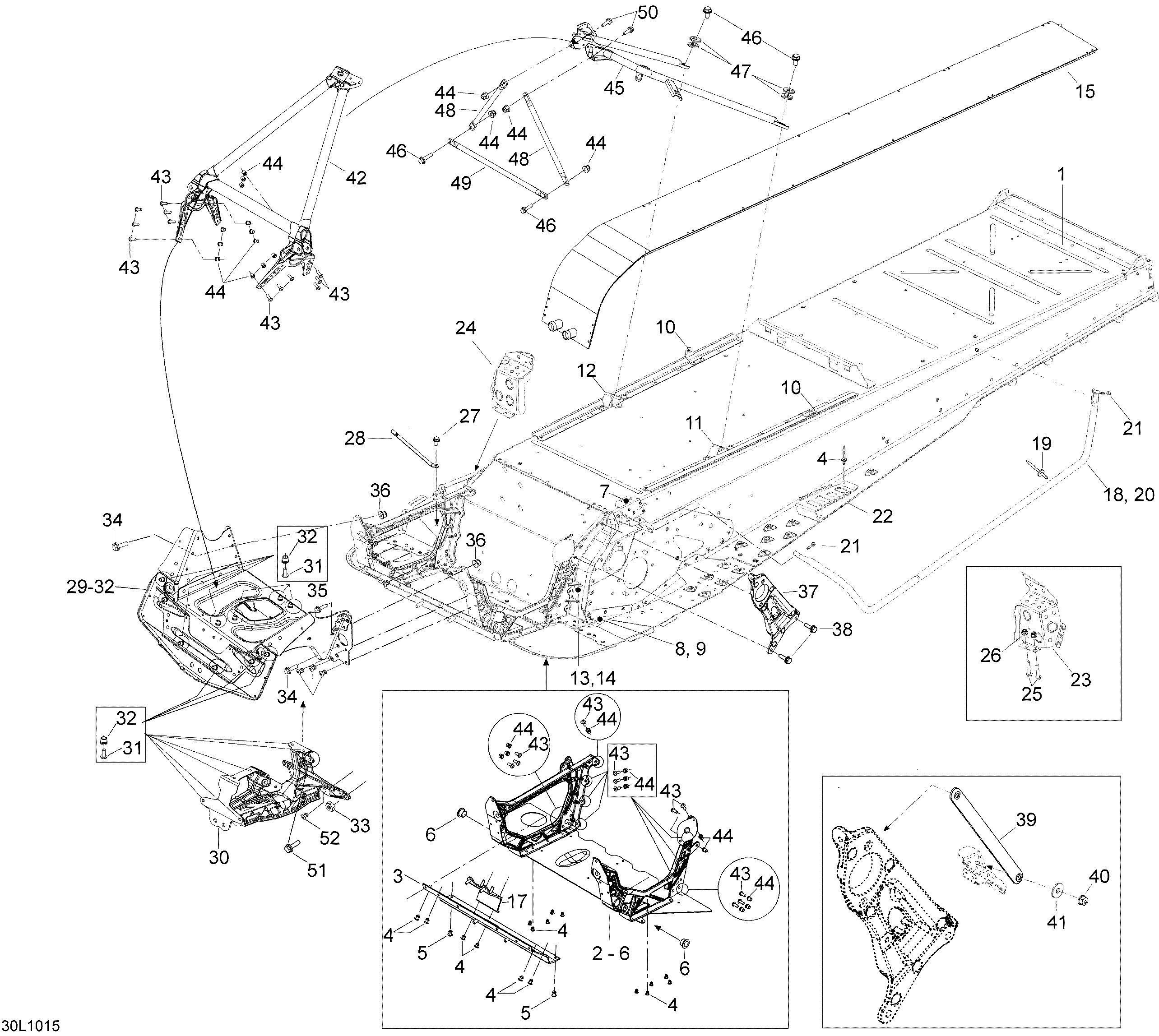

09- Frame для BRP Lynx Xtrim Commander 600 SDI - 2010
-
№АртикулНазвание
-
1518326425 Frame Ass'y. Includes 1 - 12Frame Ass'y. Includes 1 - 12
-
2518326480 ''E'' Module. Includes 2 - 6''E'' Module. Includes 2 - 6
-
3518326198 Front MemberFront Member
-
4293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
5293150164 Hucklok Rivet 6,4 mm HKLP-R8-6Hucklok Rivet 6,4 mm HKLP-R8-6
-
6505070954 CushionCushion
-
7605355235 Fastening BracketFastening Bracket
-
8518326439 Drive Axle Cover LHDrive Axle Cover LH
-
9518326440 Drive Axle Cover RHDrive Axle Cover RH
-
10518325987 Seat Box BracketSeat Box Bracket
-
11518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
12518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
13518325524 Frame Corner LHFrame Corner LH
-
14518325526 Frame Corner RHFrame Corner RH
-
15509000586 RadiatorRadiator
-
17518325943 MAG Engine SupportMAG Engine Support
-
18605254999 LH Footboard Support TubeLH Footboard Support Tube
-
19293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
20605255000 RH Footboard Support TubeRH Footboard Support Tube
-
21207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
22605354068 FootrestFootrest
-
23518326464 Toe Hook LHToe Hook LH
-
24518326465 Toe Hook RHToe Hook RH
-
25207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28514054616 Spring BracketSpring Bracket
-
29518325924 S-Module. Includes 29-32S-Module. Includes 29-32
-
30518327475 Front Suspension SupportFront Suspension Support
-
31207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
34210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
35250000450 Hex. Flange Screw DIN.6921Hex. Flange Screw DIN.6921
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37518326185 Pulley Support MachinedPulley Support Machined
-
38207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
39518326449 Draft BarDraft Bar
-
40233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
41234081430 Flat Washer M8Flat Washer M8
-
42518325929 Front MemberFront Member
-
43207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
44233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
45518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
46207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
4720061 Lock washer D6Lock washer D6
-
48518325114 Upper Column SupportUpper Column Support
-
49518325115 Center Column SupportCenter Column Support
-
50250000450 Hex. Flange Screw DIN.6921Hex. Flange Screw DIN.6921
-
51207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
52293150147 Hemlock RivetHemlock Rivet
