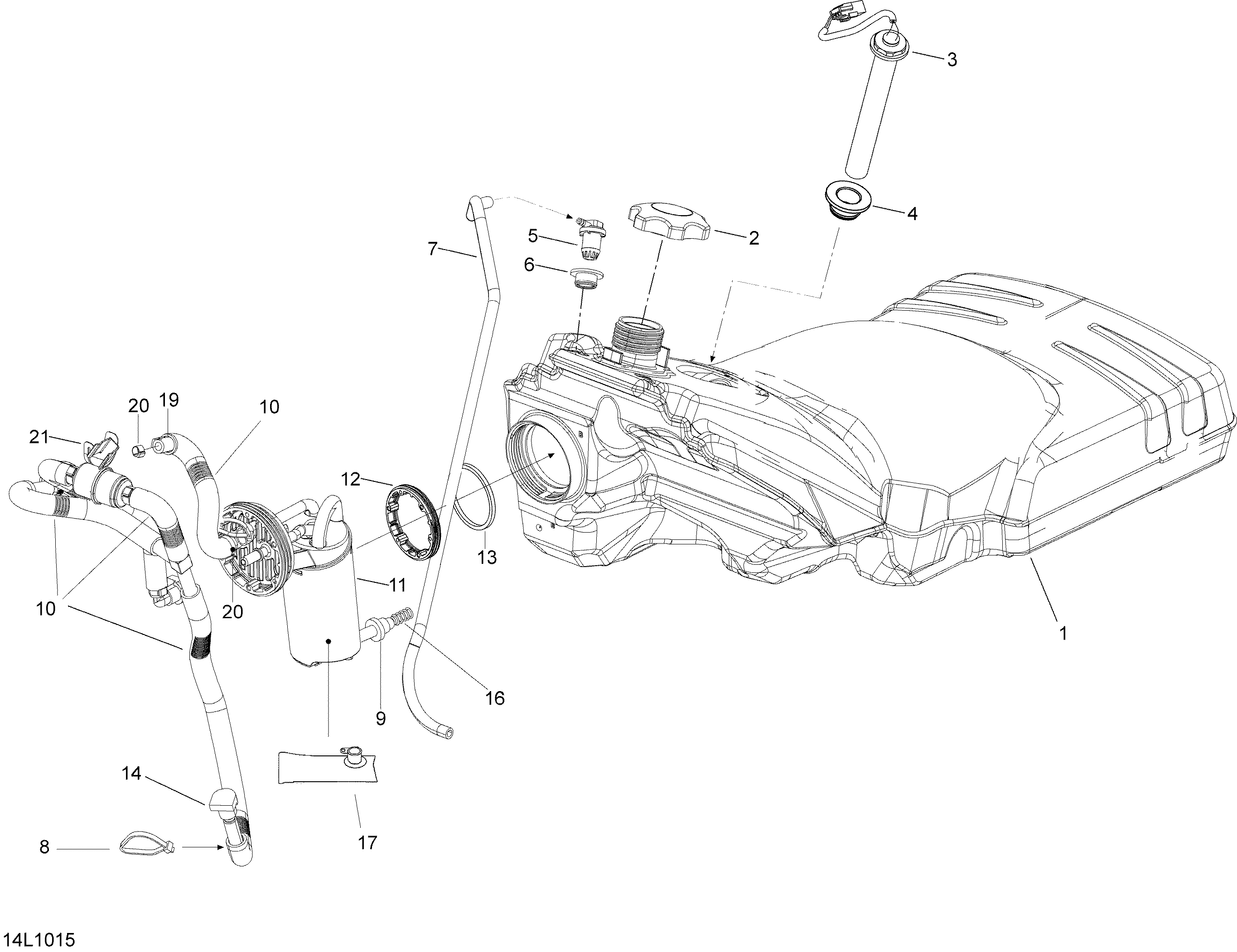

02- Fuel System для BRP Lynx Xtrim Commander 600 SDI - 2010
-
№АртикулНазвание
-
1513033386 Fuel TankFuel Tank
-
2513033025 Fuel Tank CapFuel Tank Cap
-
3513033538 Fuel SensorFuel Sensor
-
4293720058 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7513033571 HoseHose
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
928037 GrommetGrommet
-
10415080000 Tubing 16 mmTubing 16 mm
-
11513033585 Fuel PumpFuel Pump
-
12513033180 RingRing
-
13513033334 GasketGasket
-
14513033339 Hose Ass'yHose Ass'y
-
16414872100 Fuel FilterFuel Filter
-
17415129451 Fuel FilterFuel Filter
-
19513033544 HoseHose
-
20293650047 Oetiker ClampOetiker Clamp
-
21513033336 Filter ClipFilter Clip
