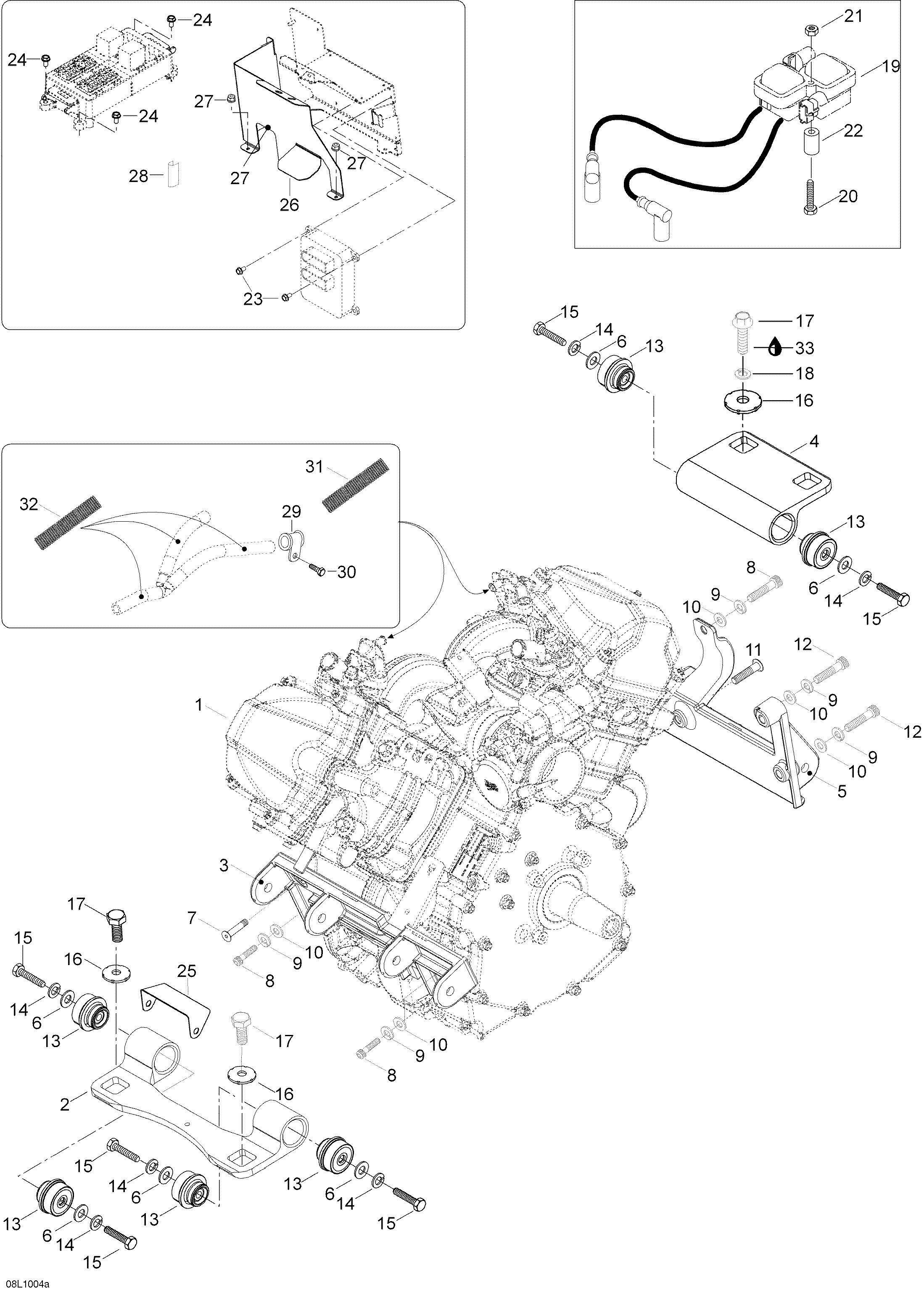

01- Engine And Engine Support для BRP Lynx YETI Pro V-800 - 2010
-
№АртикулНазвание
-
1300081001 EngineEngine
-
2605255710 Engine SupportEngine Support
-
3605253109 Front Engine Mounting SupportFront Engine Mounting Support
-
4605255711 Rear Engine Mounting SupportRear Engine Mounting Support
-
5605253110 Rear SupportRear Support
-
620005 Washer A10,5Washer A10,5
-
740839 Socket head screw M8 x 20Socket head screw M8 x 20
-
840289 Socket head screw M8 x 25Socket head screw M8 x 25
-
920014 Lock washer A8Lock washer A8
-
10234081410 Flat Washer 8 mmFlat Washer 8 mm
-
11605640012 Socket Screw M8 X 25Socket Screw M8 X 25
-
1240286 Socket head screw M8 x 45Socket head screw M8 x 45
-
13512059691 Rubber MountRubber Mount
-
1420113 Lock washer M10Lock washer M10
-
1540041 Hex. Screw M10 x 30Hex. Screw M10 x 30
-
16512056700 Lock WasherLock Washer
-
1740040 Screw M10 x 25Screw M10 x 25
-
1820113 Lock washer M10Lock washer M10
-
19278001546 Ignition CoilIgnition Coil
-
2040084 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22512059812 SpacerSpacer
-
2340327 Screw M6 x 12Screw M6 x 12
-
24210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
25605354238 Front DeflectorFront Deflector
-
26605353299 Heat CoverHeat Cover
-
27233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2828413 ProtectorProtector
-
2927092 ClampClamp
-
3040327 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
3127127 TubingTubing
-
3228012 TubingTubing
-
33219701421 Instant GasketInstant Gasket
