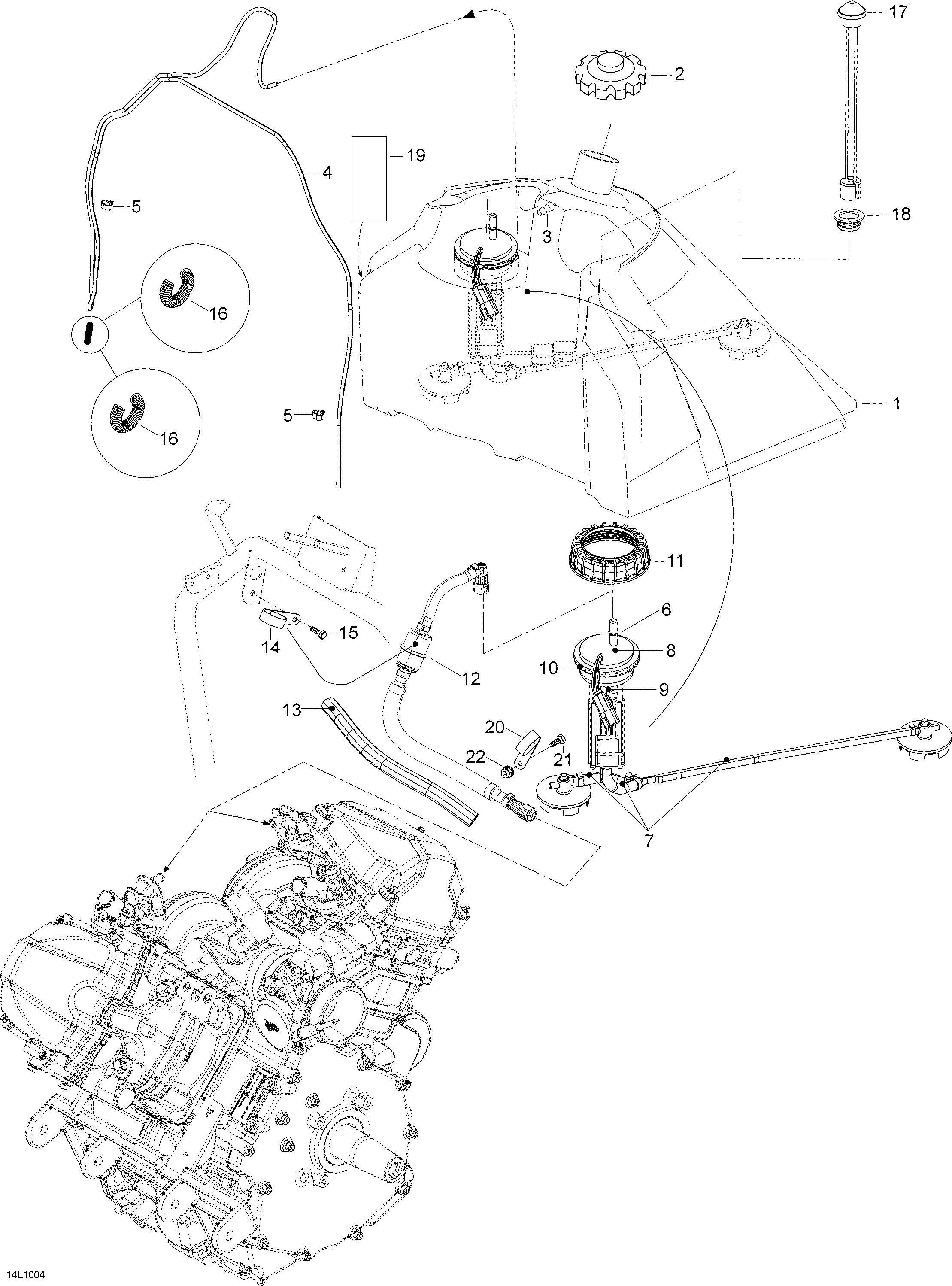

02- Fuel Tank And Fuel Pump для BRP Lynx YETI Pro V-800 - 2010
-
№АртикулНазвание
-
1605151302 Fuel TankFuel Tank
-
2580259400 CapCap
-
3404127600 NippleNipple
-
439035 HoseHose
-
5513032923 Tube ClampTube Clamp
-
6605355331 Fuel Sensor Module Ass'yFuel Sensor Module Ass'y
-
719183 Fuel hose kitFuel hose kit
-
8861302600 Pump Hose KitPump Hose Kit
-
9861302100 Regulator KitRegulator Kit
-
10513033039 SealSeal
-
11513033040 Nut, Fuel Pump ModuleNut, Fuel Pump Module
-
12605356034 Hose Ass'yHose Ass'y
-
1327127 TubingTubing
-
14513033047 Open ClampOpen Clamp
-
1540327 Hex. screw M6 x 12Hex. screw M6 x 12
-
1625003 SpringSpring
-
17605351982 Fuel GaugeFuel Gauge
-
18293720058 GrommetGrommet
-
1944001 Al-protector (1000mm x 1000mm)Al-protector (1000mm x 1000mm)
