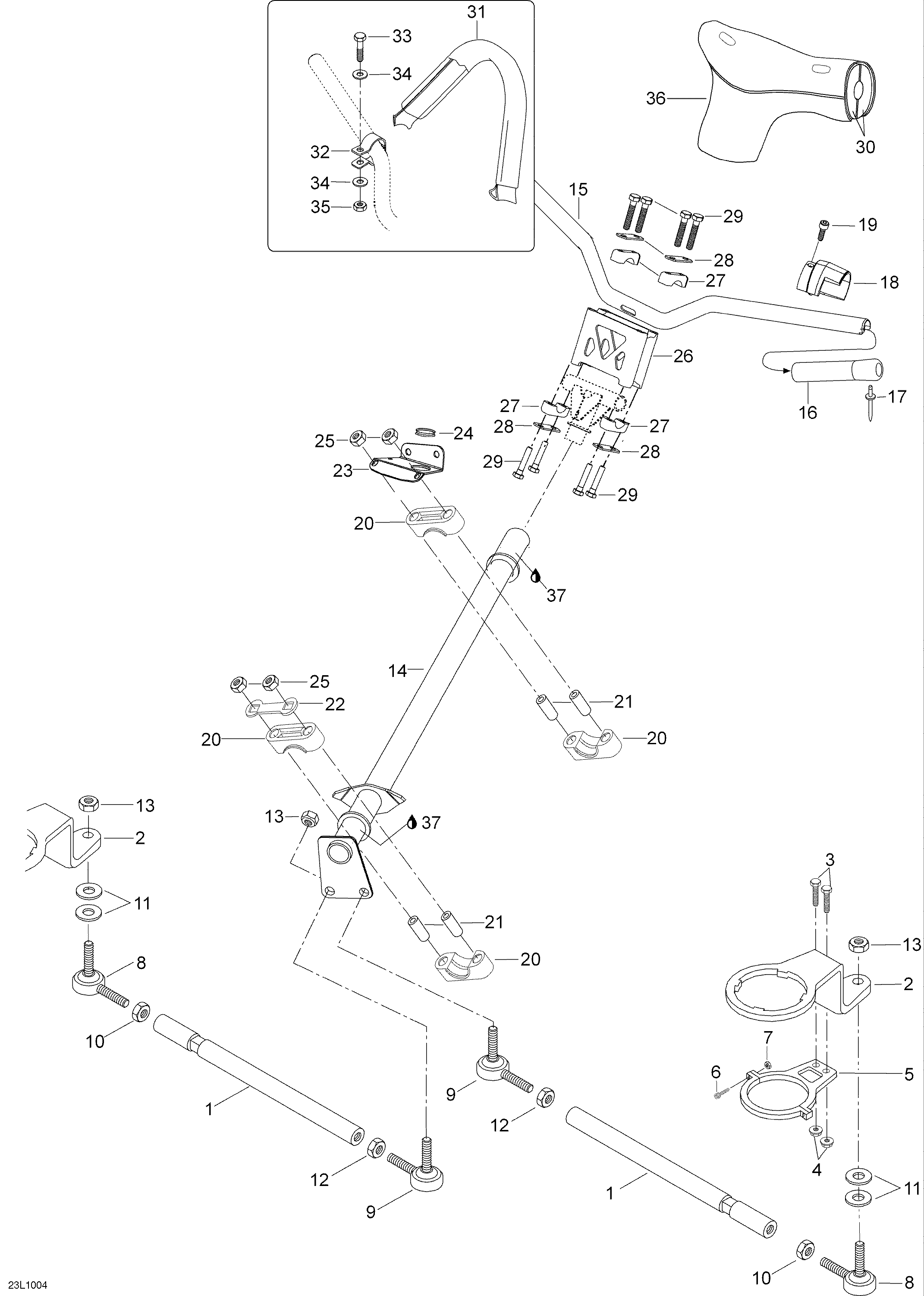

07- Steering System для BRP Lynx YETI Pro V-800 - 2010
-
№АртикулНазвание
-
1605454772 R.H Tie rodR.H Tie rod
-
1605454293 L.H Tie rodL.H Tie rod
-
2605353422 RH Steering ArmRH Steering Arm
-
2605353423 LH Steering ArmLH Steering Arm
-
340031 Screw M6 x 25Screw M6 x 25
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
55344180 Support ass'ySupport ass'y
-
640146 Socket head screw M6 x 20Socket head screw M6 x 20
-
733008 Elastic stop nut M4Elastic stop nut M4
-
8506151845 LH Joint BallLH Joint Ball
-
9506151492 RH Ball JointRH Ball Joint
-
1033019 Nut R.H.Nut R.H.
-
1131014 ShimShim
-
1233017 Nut L.H.Nut L.H.
-
1333023 Elastic stop nut M10Elastic stop nut M10
-
14605253421 Main TubeMain Tube
-
15605251368 Handle BarHandle Bar
-
165340464 GripGrip
-
1736005 RivetRivet
-
18506151566 AdaptatorAdaptator
-
1940390 Socket head screw M8 x 20Socket head screw M8 x 20
-
20506150400 Housing HalfHousing Half
-
21506150500 Housing BushingHousing Bushing
-
22506150600 Stopper PlateStopper Plate
-
23605351973 BracketBracket
-
2428022 GrommetGrommet
-
2533201 Elastic flanged nut M8Elastic flanged nut M8
-
27506151622 Steering SupportSteering Support
-
28709400509 StiffnerStiffner
-
29250000074 Hex. Screw With Nylon M8 X 40Hex. Screw With Nylon M8 X 40
-
30605354907 FoamFoam
-
31506152115 Strap Ass'yStrap Ass'y
-
32506151792 Support Plate, BlackSupport Plate, Black
-
3340031 Hex. screw M6 x 25Hex. screw M6 x 25
-
3420003 WasherWasher
-
3533010 Elastic stop nut M6Elastic stop nut M6
-
36605254571 Steering CoverSteering Cover
-
37293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
