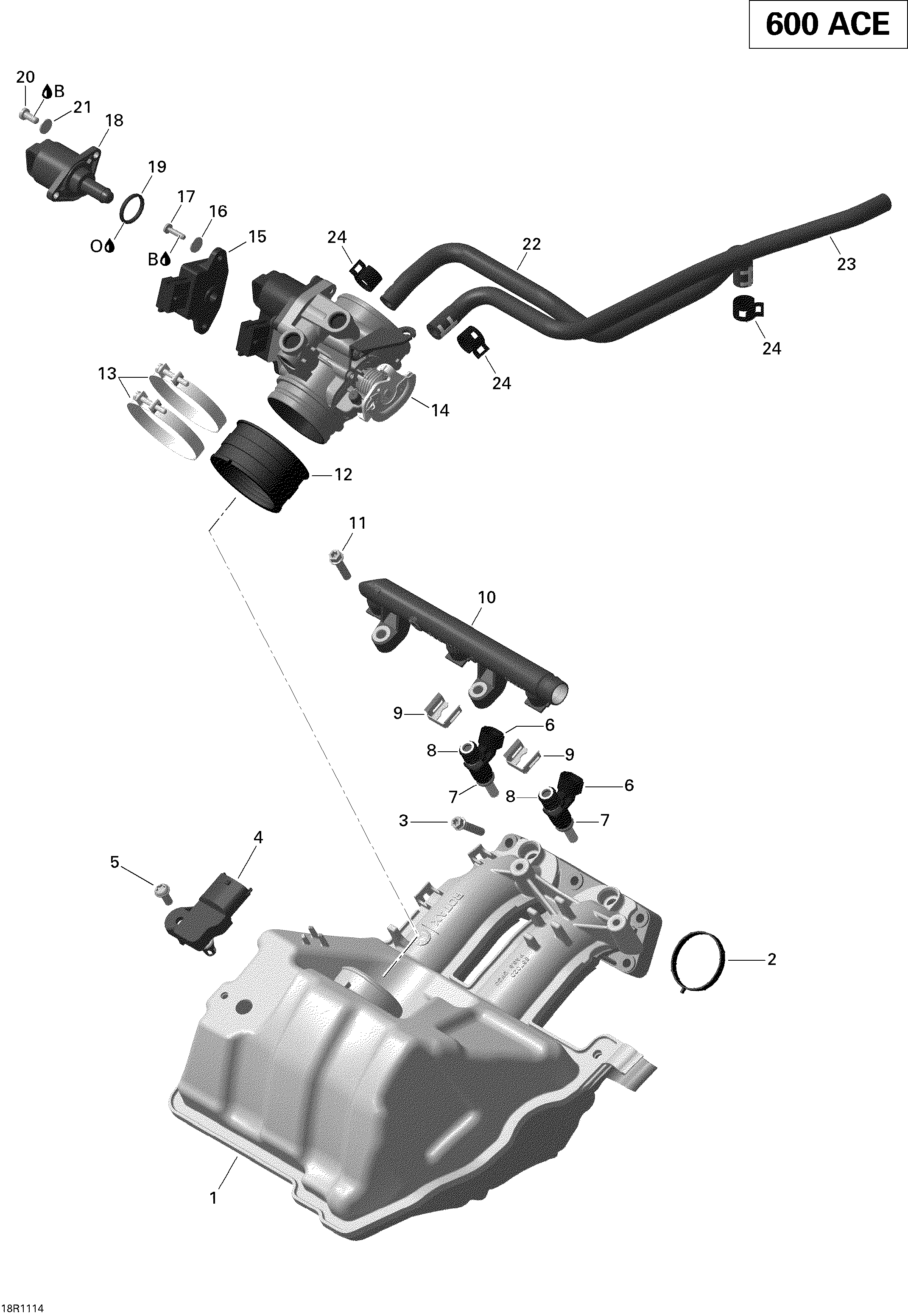

02- Air Intake Manifold And Throttle Body для BRP Lynx Adventure LX 600 ACE - 2011
-
№АртикулНазвание
-
1420867020 Air Intake Manifold Ass'y. Includes 1 to 2Air Intake Manifold Ass'y. Includes 1 to 2
-
2420431660 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4707000564 Pressure And Temperature SensorPressure And Temperature Sensor
-
5420641583 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420874838 Injection Valve Ass'y. Includes 6 to 8Injection Valve Ass'y. Includes 6 to 8
-
7420431890 O-RingO-Ring
-
8420631220 O-RingO-Ring
-
9420853030 ClipClip
-
10420874960 Fuel RailFuel Rail
-
11420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
12420460495 Intake AdaptorIntake Adaptor
-
13420251480 ClampClamp
-
14420296879 Throttle Body Ass'y. Includes 14 to 21Throttle Body Ass'y. Includes 14 to 21
-
15415129603 Throttle Position SensorThrottle Position Sensor
-
16234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
17208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
18420665940 Idle Bypass ValveIdle Bypass Valve
-
19420631780 O-RingO-Ring
-
20420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
21420845710 Snap RingSnap Ring
-
22420460910 Molded HoseMolded Hose
-
23420460915 Molded HoseMolded Hose
-
24420853511 ClampClamp
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
