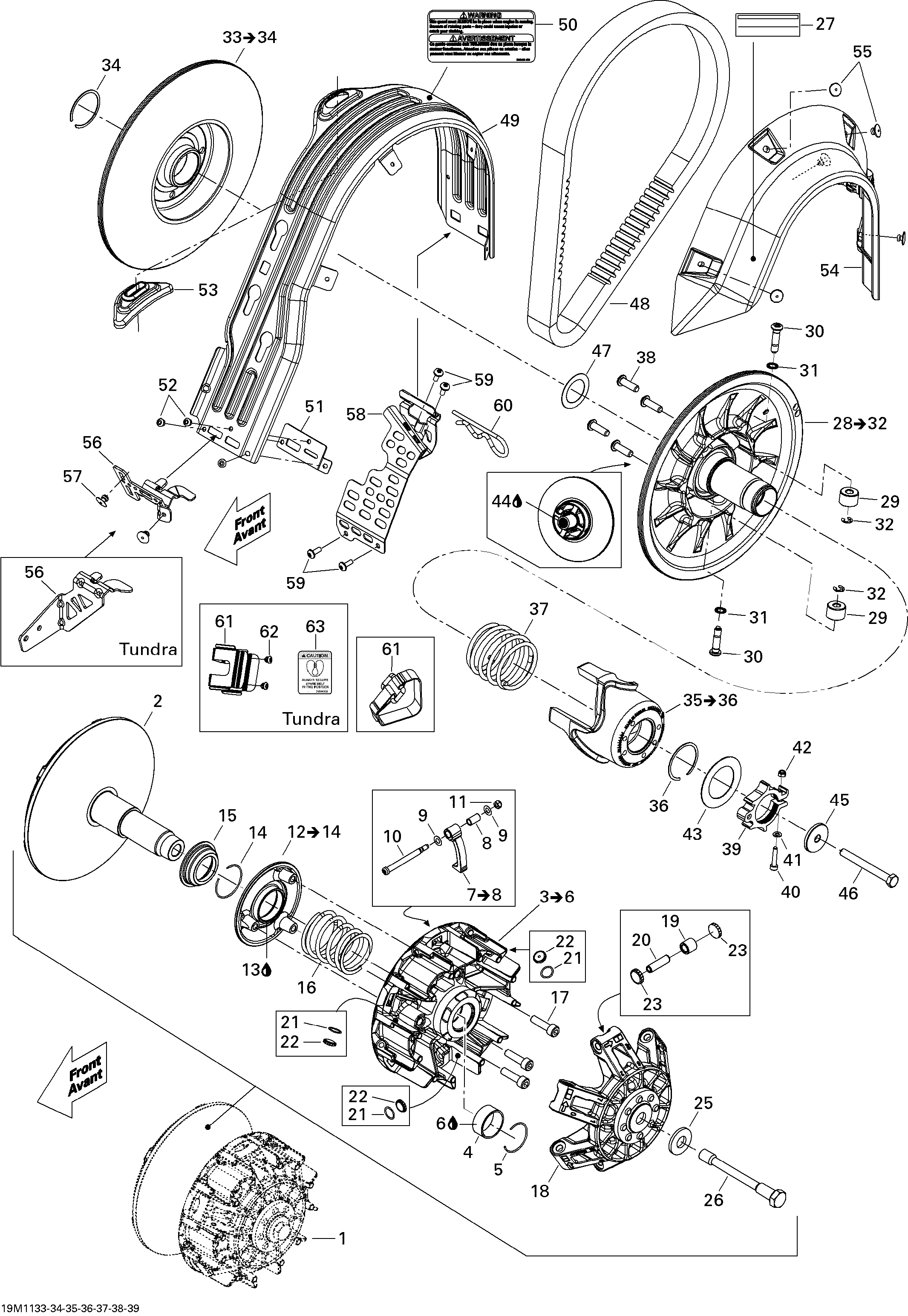

05- Pulley System (Europe) для BRP Lynx Adventure LX 600 ACE - 2011
-
№АртикулНазвание
-
2417223286 Fixe Flange Ass'yFixe Flange Ass'y
-
3417223288 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4293350079 Journal BearingJournal Bearing
-
5293370065 CirclipCirclip
-
6293800118 Loctite 680, 50 mlLoctite 680, 50 ml
-
7417223452 Ramp 715. Includes 7 to 8Ramp 715. Includes 7 to 8
-
9417223255 Thrust WasherThrust Washer
-
10417223258 Axle RampAxle Ramp
-
11232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
12417223373 Sliding Adaptor Ass'y. Includes 12 to 14Sliding Adaptor Ass'y. Includes 12 to 14
-
13293800118 Loctite 680, 50 mlLoctite 680, 50 ml
-
14293370063 CirclipCirclip
-
15417223155 Spring SeatSpring Seat
-
16417223314 Spring ClutchSpring Clutch
-
17250000473 Hex. Socket Head ScrewHex. Socket Head Screw
-
18417223283 Governor Cup Ass'yGovernor Cup Ass'y
-
19417223387 RollerRoller
-
20417223257 Roller AxleRoller Axle
-
21293300145 O-ringO-ring
-
22417223254 Slider ShoeSlider Shoe
-
23417223269 Slider ShoeSlider Shoe
-
25250200006 Spring Washer 14 mmSpring Washer 14 mm
-
26417300407 Drive Bolt PulleyDrive Bolt Pulley
-
27516004542 English DecalEnglish Decal
-
28417127229 Fixed Flange Ass'y. Includes 28 to 32Fixed Flange Ass'y. Includes 28 to 32
-
29417127016 RollerRoller
-
30417127128 StudStud
-
31250200009 Lock Washer 8 mmLock Washer 8 mm
-
32414753500 CirclipCirclip
-
33417127231 Slider Flange Ass'y. Includes 33 to 34Slider Flange Ass'y. Includes 33 to 34
-
34293370049 CirclipCirclip
-
35417127235 Cam Ass'y. Includes 35 to 36Cam Ass'y. Includes 35 to 36
-
36293370049 CirclipCirclip
-
37417127236 Spring ReleaseSpring Release
-
38250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
39417127248 Adjustment Pulley Ass'yAdjustment Pulley Ass'y
-
40205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
41234051410 Flat Washer M5Flat Washer M5
-
42232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
43417127155 WasherWasher
-
44293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
45517302322 Strength WasherStrength Washer
-
46207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
47504112000 ShimShim
-
48414860700 Drive BeltDrive Belt
-
49417300382 Belt GuardBelt Guard
-
50516004595 Security Label Decal EnglishSecurity Label Decal English
-
51417300380 ReinforcementReinforcement
-
52390909200 Avex RivetAvex Rivet
-
53417300381 GuideGuide
-
54417300356 Side ProtectorSide Protector
-
55293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
56417300360 Front Belt Guard BracketFront Belt Guard Bracket
-
57293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
58417300375 Belt Guard BracketBelt Guard Bracket
-
59250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
60114045200 Hair PinHair Pin
-
61508000599 Velcro StripVelcro Strip
