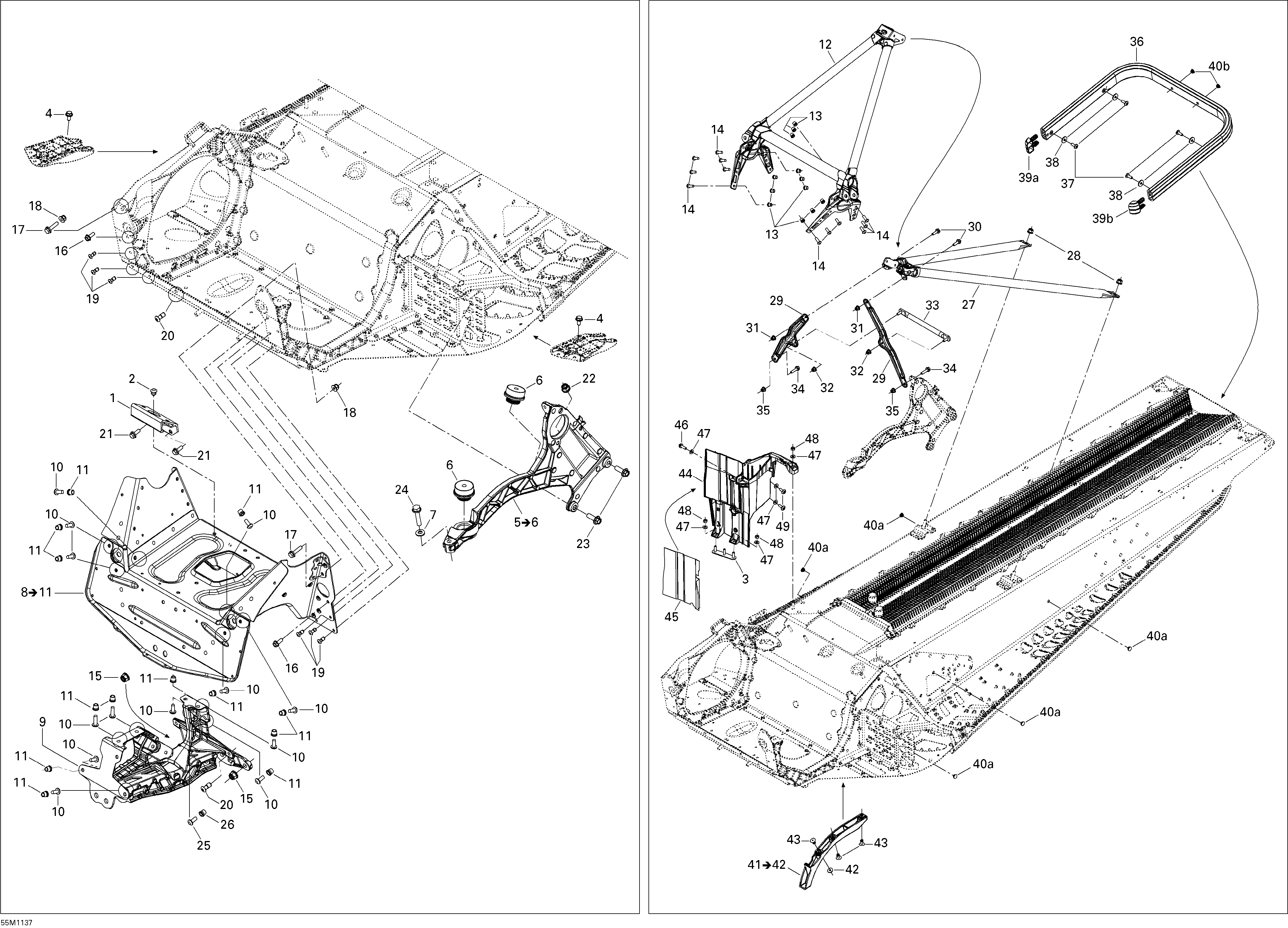

09- Frame and Components для BRP Lynx Adventure LX 600 ACE - 2011
-
№АртикулНазвание
-
1518326178 Engine SupportEngine Support
-
2293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
3518326550 Retaining PlateRetaining Plate
-
4207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
5518326142 Brace Ass.. Includes 5 to 6Brace Ass.. Includes 5 to 6
-
6512060295 Rubber MountRubber Mount
-
7234281474 Conical Spring Washer M8Conical Spring Washer M8
-
8518325924 S-Module. Includes 8 to 11S-Module. Includes 8 to 11
-
9518325925 Front Suspension SupportFront Suspension Support
-
10207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12518326555 Front MemberFront Member
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
17207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
20293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
21207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
24207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
25207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27518326559 Rear MemberRear Member
-
28233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
29518326848 Upper Column SupportUpper Column Support
-
30207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33518326355 Center Column SupportCenter Column Support
-
34207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
35233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
36518325577 Rear BumperRear Bumper
-
37250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
38224061201 Flat WasherFlat Washer
-
39a520000711 RH CapRH Cap
-
39b520000712 LH CapLH Cap
-
40a293730041 Dart 8 mm, Full MoonDart 8 mm, Full Moon
-
40b293730041 Dart 8 mm, Full MoonDart 8 mm, Full Moon
-
41518326973 Front Protector. Includes 41 to 42Front Protector. Includes 41 to 42
-
42517124300 WasherWasher
-
43293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
44518326472 Battery SupportBattery Support
-
45514054755 Heat ShieldHeat Shield
-
46210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
47250200039 Flat WasherFlat Washer
-
48232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
49250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
