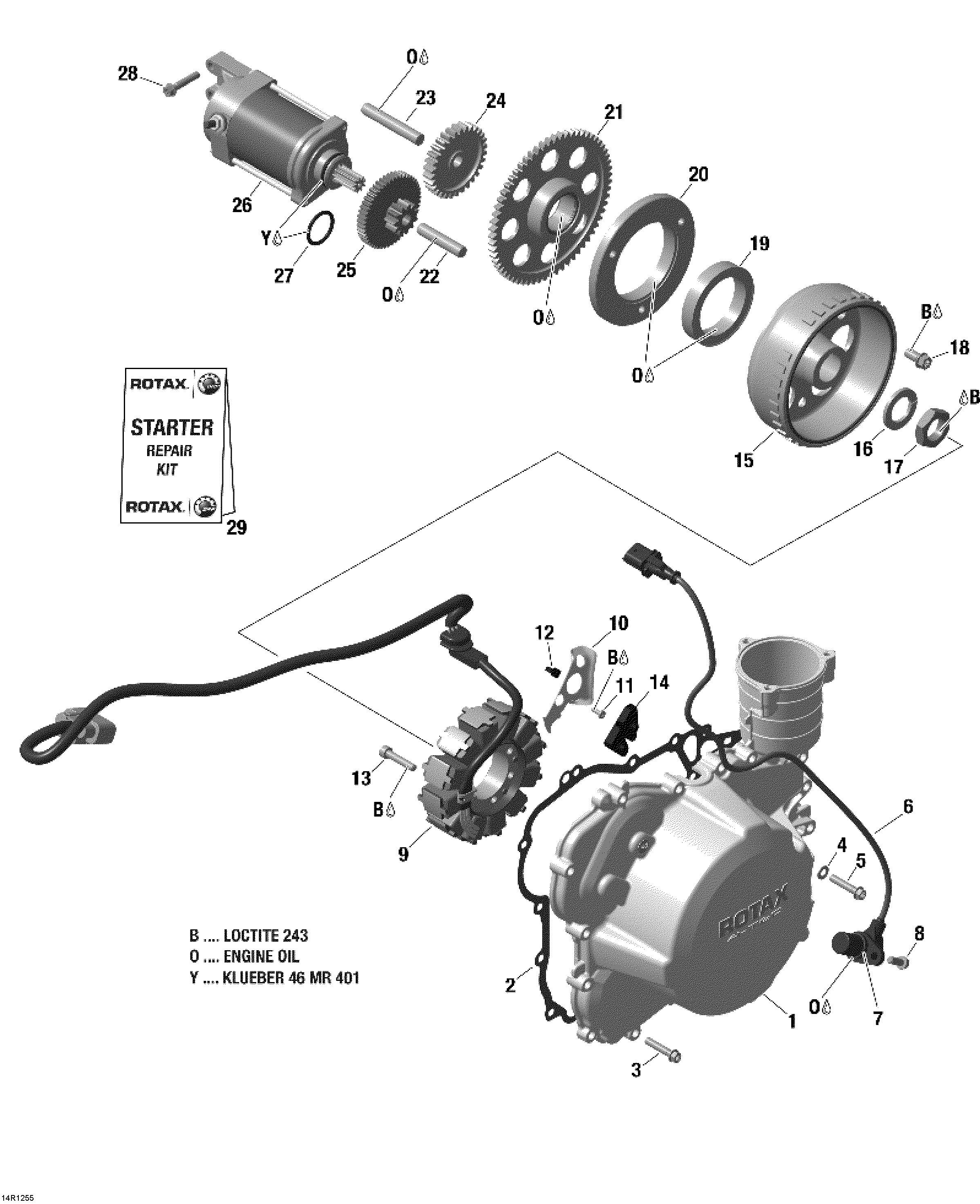

03- Magneto And Electric Starter для BRP Lynx Adventure GT 1200 4-TEC - 2012
-
№АртикулНазвание
-
1420611833 CoverCover
-
2420430750 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
5420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
6420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
7420431580 O-RingO-Ring
-
8420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
9420892373 Stator PlateStator Plate
-
10420951192 Cable HolderCable Holder
-
11420640085 Torx Screw 3.5 X 8Torx Screw 3.5 X 8
-
12420866717 ClampClamp
-
13205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
14420860052 SpacerSpacer
-
15420892361 Magneto FlywheelMagneto Flywheel
-
16420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
17420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
18420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
19420659113 Sprag ClutchSprag Clutch
-
20420659266 Housing Sprag ClutchHousing Sprag Clutch
-
21420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
22420229302 Location PinLocation Pin
-
23420229475 Needle PinNeedle Pin
-
24420634605 Gear, 30 TeethGear, 30 Teeth
-
25420634741 Double GearDouble Gear
-
26420892421 Starter Ass'y. Includes 23 to 24Starter Ass'y. Includes 23 to 24
-
27420250140 O-RingO-Ring
-
28420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
29420881140 Carbon Brush SetCarbon Brush Set
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
O293600112 Synthetic Oil 4T 12X1 L.Synthetic Oil 4T 12X1 L.
-
Y420297616 Klueber Paste, 46 MR 401, 60 gKlueber Paste, 46 MR 401, 60 g
