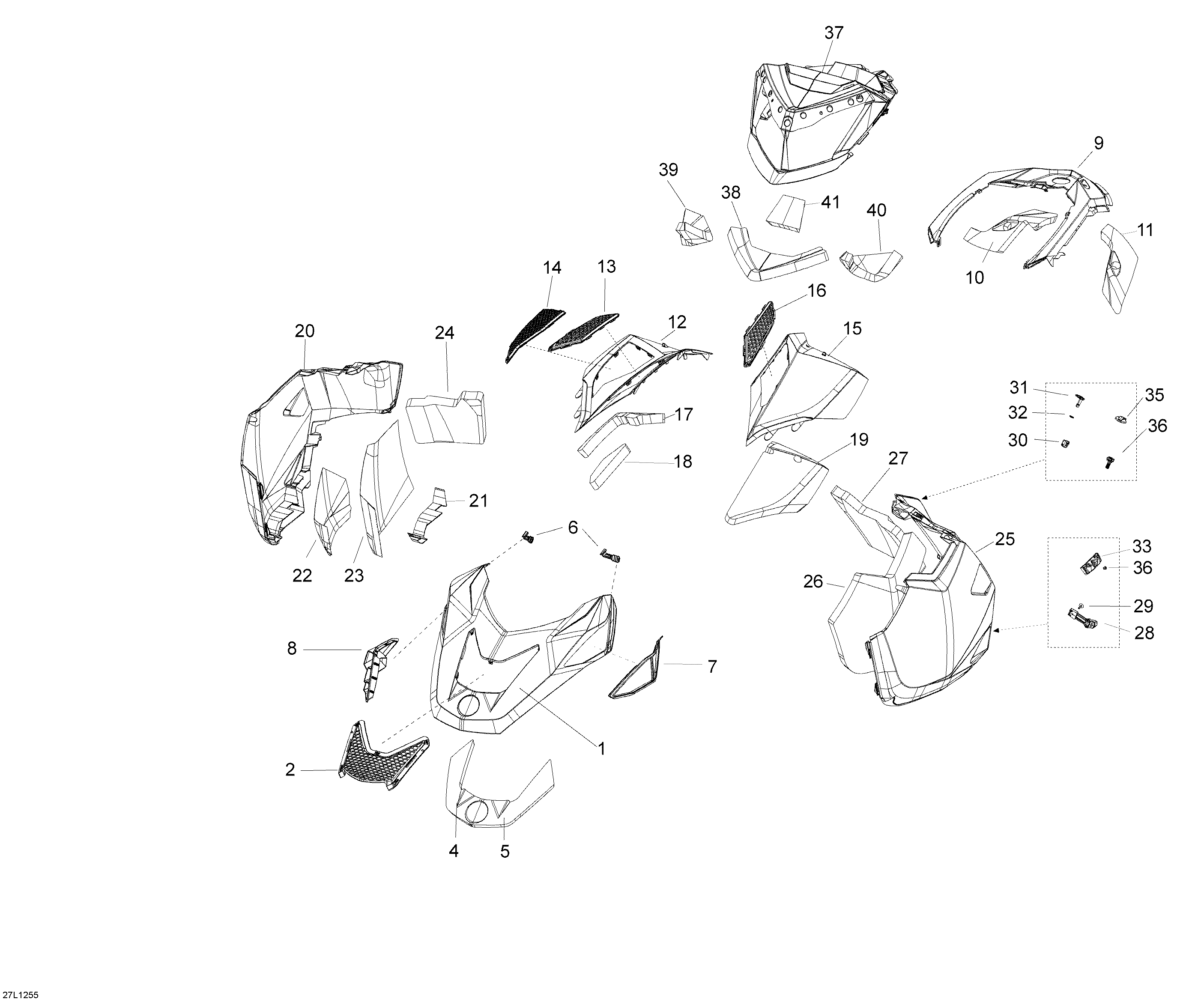

09- Hood для BRP Lynx Adventure GT 1200 4-TEC - 2012
-
№АртикулНазвание
-
1517304812 HoodHood
-
2517304843 Hood GrillHood Grill
-
4517304330 InsulatorInsulator
-
5517304214 InsulatorInsulator
-
6517304289 Latch PannelLatch Pannel
-
7508000609 Air FilterAir Filter
-
8517304855 Intake GrillIntake Grill
-
9517304820 ConsoleConsole
-
10517304318 InsulatorInsulator
-
11517304317 InsulatorInsulator
-
12517304829 Side Access Panel RHSide Access Panel RH
-
13517304015 RH Access Panel GrillRH Access Panel Grill
-
14517304016 RH Lower Acces GrillRH Lower Acces Grill
-
15517304839 Side Access Panel LHSide Access Panel LH
-
16517303893 LH Access Panel GrillLH Access Panel Grill
-
17517304311 InsulatorInsulator
-
18517304312 InsulatorInsulator
-
19517304313 InsulatorInsulator
-
20517304866 Side Pannel RHSide Pannel RH
-
21517304215 Aluminium FoilAluminium Foil
-
22517304216 Aluminium FoilAluminium Foil
-
23517304512 Aluminium FoilAluminium Foil
-
24517304310 RH Rear FoamRH Rear Foam
-
25517304869 Side Pannel LHSide Pannel LH
-
26517303891 LH FoamLH Foam
-
27517304309 LH Rear FoamLH Rear Foam
-
28517304572 Latch-PanelLatch-Panel
-
29293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
30517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
31517304296 Quarter-Turn HandleQuarter-Turn Handle
-
32517304538 Locking PlateLocking Plate
-
33517304497 Side Panel SupportSide Panel Support
-
35860200239 Latch Kit, BlackLatch Kit, Black
-
36517304573 Latch-PanelLatch-Panel
-
37517304272 Indicator SupportIndicator Support
-
38517304314 InsulatorInsulator
-
39517304316 InsulatorInsulator
-
40517304315 InsulatorInsulator
-
41517304319 InsulatorInsulator
