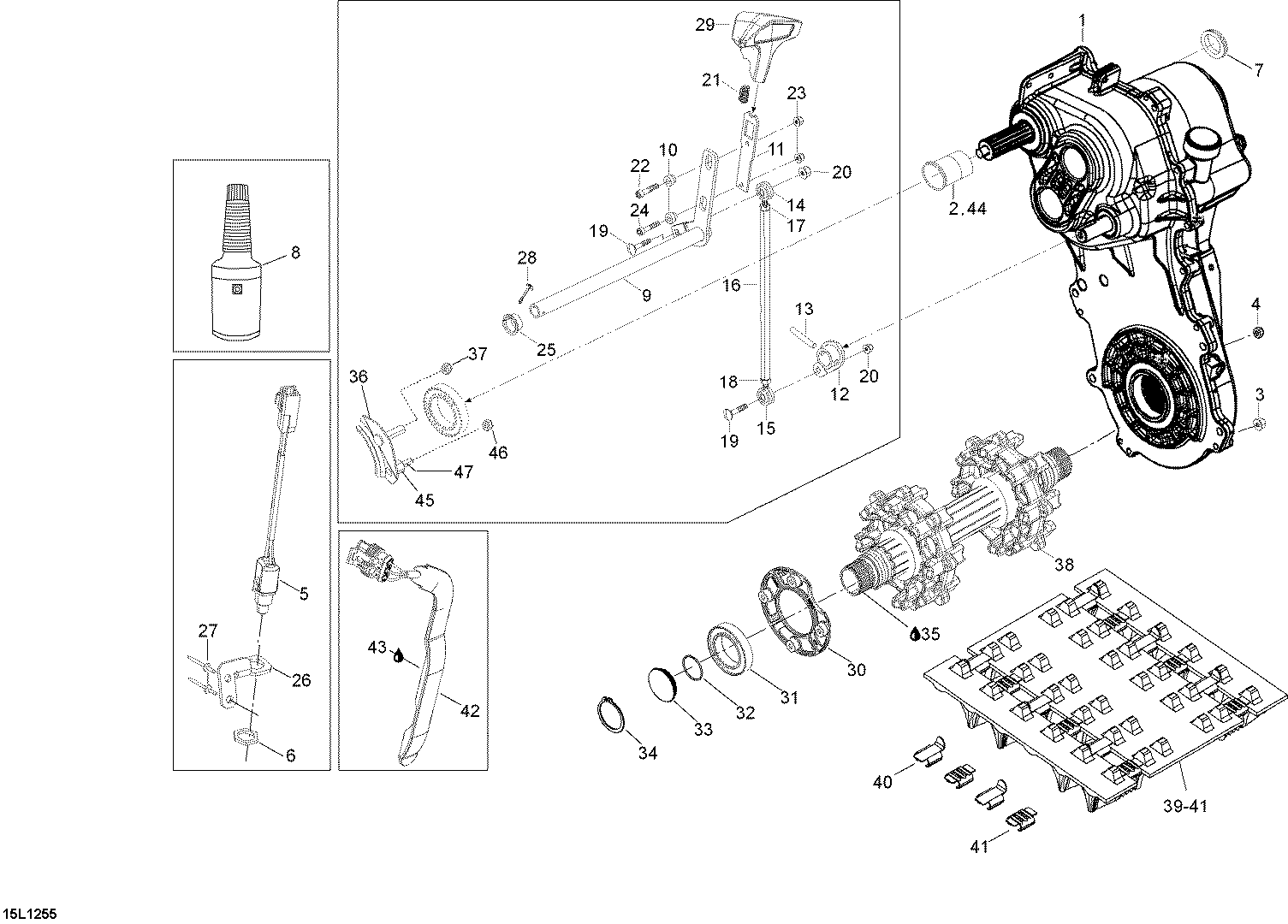

05- Drive System для BRP Lynx Adventure GT 1200 4-TEC - 2012
-
№АртикулНазвание
-
1504153005 Transmission H 2F+N+R MY10Transmission H 2F+N+R MY10
-
2504153054 Protective RubberProtective Rubber
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
5515176472 Switch Ass'ySwitch Ass'y
-
6250000373 Brass NutBrass Nut
-
7504152818 Rubber PlugRubber Plug
-
8293600138 Chaincase oil 12 x 355mlChaincase oil 12 x 355ml
-
9504152887 Lever ShifterLever Shifter
-
10504152787 SleeveSleeve
-
11504152831 Shifter ArmShifter Arm
-
12504152834 Welded LeverWelded Lever
-
1341012 PinPin
-
14707000689 RH Ball JointRH Ball Joint
-
15707000690 LH Ball JointLH Ball Joint
-
16504152836 RodRod
-
17232061414 Hex. Nut M6Hex. Nut M6
-
18232066414 LH Hex. Nut M6LH Hex. Nut M6
-
19207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
2033010 Elastic stop nut M6Elastic stop nut M6
-
21504152882 SpringSpring
-
22205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
23233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
24732600030 ScrewScrew
-
25504152890 BearingBearing
-
26504152902 Sensor BracketSensor Bracket
-
27293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
28250400035 Cotter PinCotter Pin
-
29504152837 HandleHandle
-
30504152949 Housing BearingHousing Bearing
-
31293350059 Ball BearingBall Bearing
-
32293300122 O-RingO-Ring
-
33504152619 Magnetic CapMagnetic Cap
-
34504152572 CirclipCirclip
-
35293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
36504152974 Bearing HousingBearing Housing
-
37232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
38504153104 Drive Axle Ass'yDrive Axle Ass'y
-
39504152817 Track Ass'yTrack Ass'y
-
405318323 GuideGuide
-
42504152896 SensorSensor
-
43293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
44504153034 Protective RingProtective Ring
-
45605456296 SleeveSleeve
-
46233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
47207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
