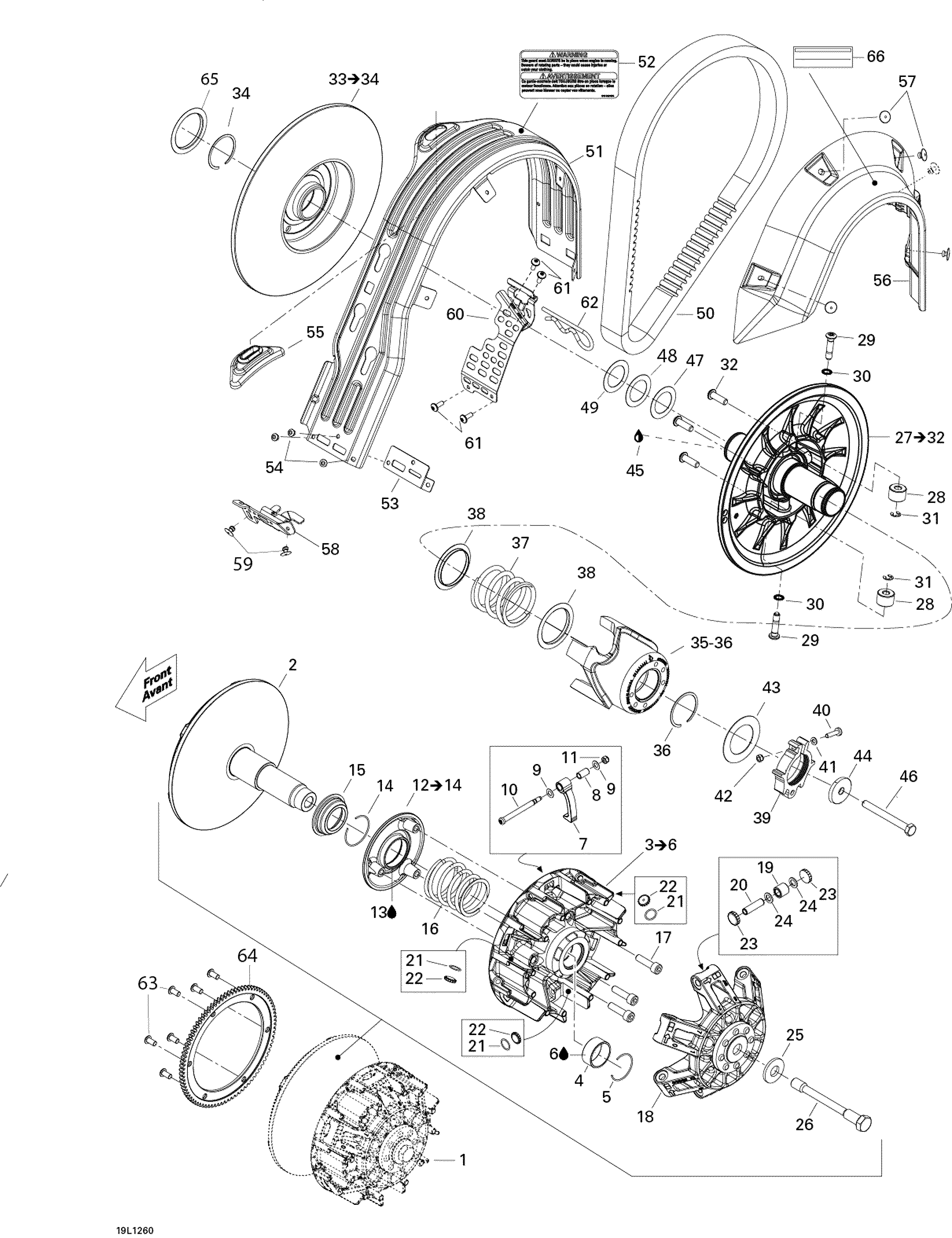

05- Pulley System для BRP Lynx Rave 550 - 2012
-
№АртикулНазвание
-
2417223534 Fixe Flange Ass'yFixe Flange Ass'y
-
3417223606 Slider Flange Ass'ySlider Flange Ass'y
-
4417223288 Sliding Flange Ass'ySliding Flange Ass'y
-
5293370065 CirclipCirclip
-
6293800118 Loctite 680, 50 mlLoctite 680, 50 ml
-
7417223558 Ramp 730Ramp 730
-
8293350078 Journal BearingJournal Bearing
-
9417223255 Thrust WasherThrust Washer
-
10417223609 Axle RampAxle Ramp
-
11232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
12417223461 Slider Adaptor Ass'ySlider Adaptor Ass'y
-
13293800118 Loctite 680, 50 mlLoctite 680, 50 ml
-
14293370063 CirclipCirclip
-
15417223155 Spring SeatSpring Seat
-
16417223315 Spring ClutchSpring Clutch
-
17250000473 Hex. Socket Head ScrewHex. Socket Head Screw
-
18417223565 Governor Cup Ass'yGovernor Cup Ass'y
-
19417223387 RollerRoller
-
20417223257 Roller AxleRoller Axle
-
21293300145 O-ringO-ring
-
22417223269 Slider ShoeSlider Shoe
-
23417223269 Slider ShoeSlider Shoe
-
25250200006 Spring Washer 14 mmSpring Washer 14 mm
-
26417300407 Drive Bolt PulleyDrive Bolt Pulley
-
27417127262 Fix Flange Ass'yFix Flange Ass'y
-
28417127016 RollerRoller
-
29417127259 Pivot StudPivot Stud
-
30250200009 Lock Washer 8 mmLock Washer 8 mm
-
31414753500 CirclipCirclip
-
32250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
33417127231 Slider Flange Ass'ySlider Flange Ass'y
-
34293370049 CirclipCirclip
-
35417127109 Cam Ass'yCam Ass'y
-
36293370049 CirclipCirclip
-
37417127061 SpringSpring
-
38417127116 Swivel AbutmentSwivel Abutment
-
39417127248 Adjustment Pulley Ass'yAdjustment Pulley Ass'y
-
40205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
41234051410 Flat Washer M5Flat Washer M5
-
42232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
43417127155 WasherWasher
-
44517302322 Strength WasherStrength Washer
-
45293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
46207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
47417300265 SpacerSpacer
-
48504112000 ShimShim
-
49417300399 SpacerSpacer
-
50414860700 Drive BeltDrive Belt
-
51417300382 Belt GuardBelt Guard
-
52516004595 Security Label Decal EnglishSecurity Label Decal English
-
53417300380 ReinforcementReinforcement
-
54390909200 Avex RivetAvex Rivet
-
55417300381 GuideGuide
-
56417300356 Side ProtectorSide Protector
-
57293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
58417300386 Front Belt Guard BracketFront Belt Guard Bracket
-
59293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
60417300378 Belt Guard AttachBelt Guard Attach
-
61250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
62114045200 Hair PinHair Pin
-
63250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
64417223476 Crown Gear LaunchCrown Gear Launch
-
65417300238 ProtectorProtector
-
66516003708 Decal, Notice, Drive Pulley BoltDecal, Notice, Drive Pulley Bolt
