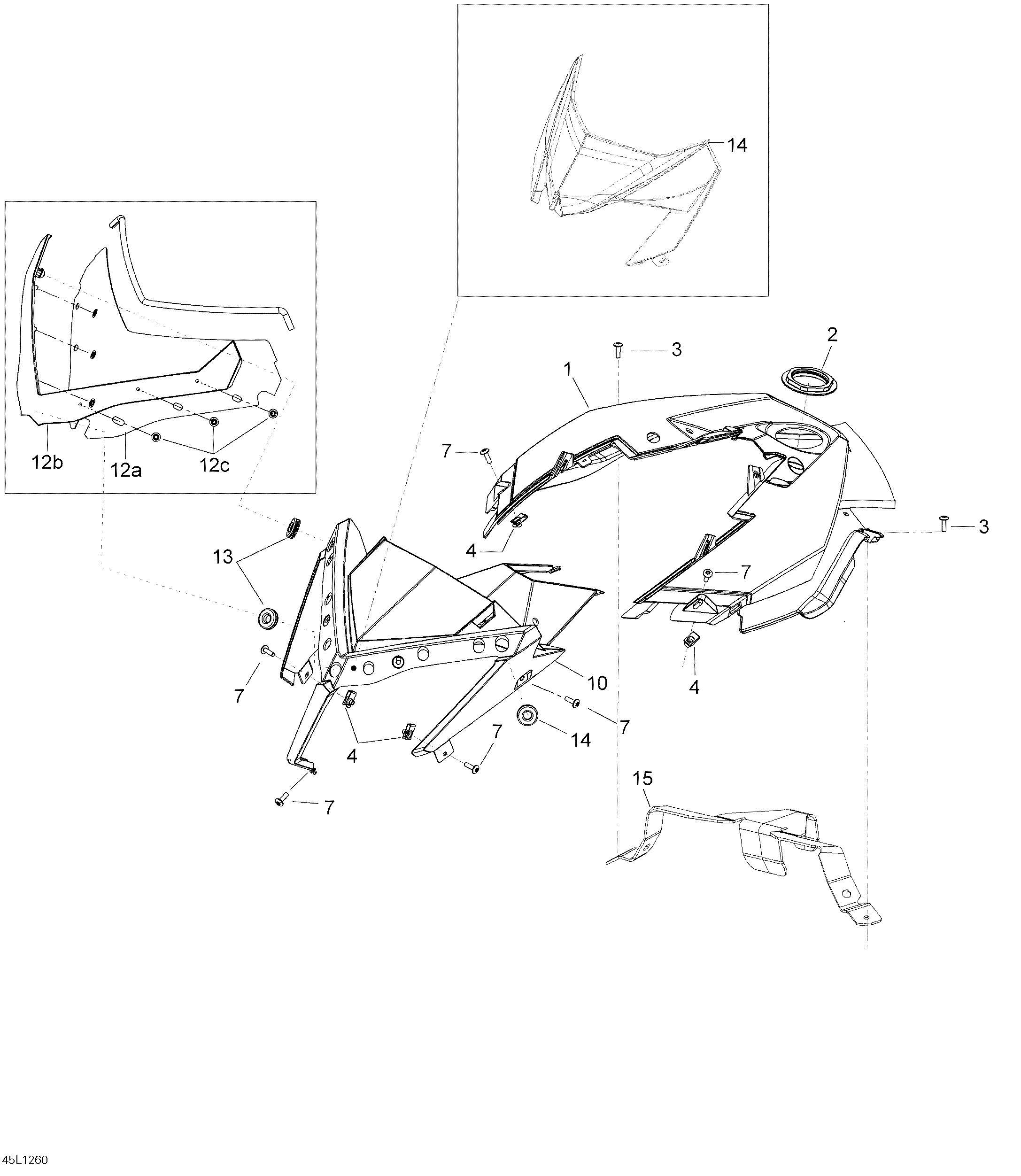

09- Windshield And Console для BRP Lynx Rave 550 - 2012
-
№АртикулНазвание
-
1517304642 Console whiteConsole white
-
2517302575 Console NutConsole Nut
-
3293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
4250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
10517304578 Gauge SupportGauge Support
-
12a517304293 WindshieldWindshield
-
12b860200089 Windshield Support KitWindshield Support Kit
-
12c732610072 Push NutPush Nut
-
13517303756 GrommetGrommet
-
14517303979 Headlamp coverHeadlamp cover
-
15517304230 Support plate for consoleSupport plate for console
