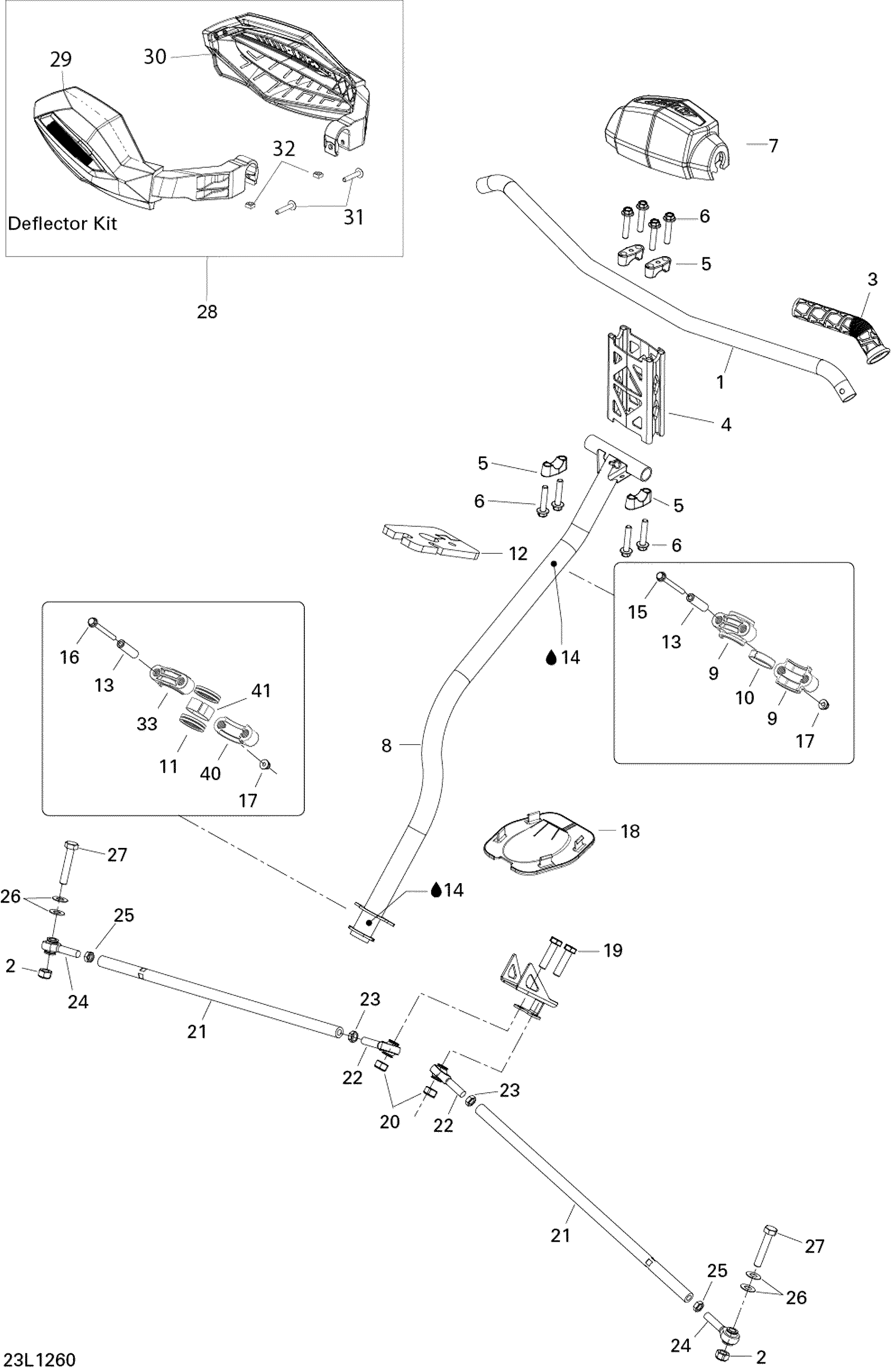

07- Steering System для BRP Lynx Rave 550 - 2012
-
№АртикулНазвание
-
1506152399 Hanlde BarHanlde Bar
-
2232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
3506152483 GripGrip
-
4860200268 Handlebar Extension KitHandlebar Extension Kit
-
5506152395 Steering SupportSteering Support
-
6250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
7506152265 Steering PadSteering Pad
-
8506152473 Main TubeMain Tube
-
9506152508 Upper Half-HousingUpper Half-Housing
-
10506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
11506152518 Lower Vibration RingLower Vibration Ring
-
12506152521 CushionCushion
-
13506152297 Housing BushingHousing Bushing
-
14293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
15207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
16207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
17233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
18506152163 PlatePlate
-
19207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
20232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21506152496 Tie-RodTie-Rod
-
22506152081 LH Ball JointLH Ball Joint
-
23250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
24506152019 RH Ball JointRH Ball Joint
-
25732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
26506152194 WasherWasher
-
27207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
28517305053 Deflector packDeflector pack
-
29517305054 RH deflectorRH deflector
-
30517305055 LH deflectorLH deflector
-
31250000501 Phillips Screw M6 X 35Phillips Screw M6 X 35
-
32250000498 Square Nut M6Square Nut M6
-
33506152217 Lower Half-HousingLower Half-Housing
