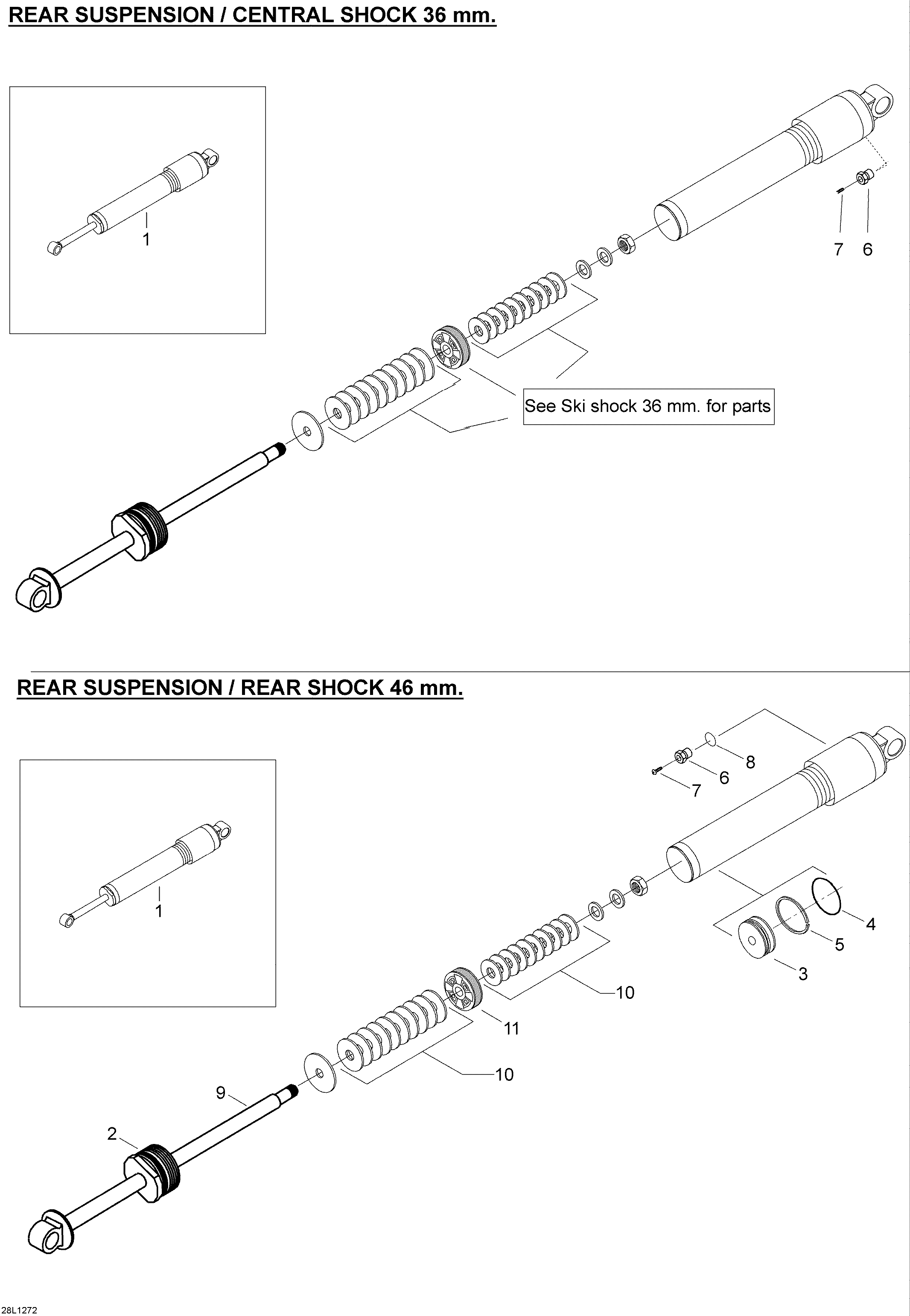

08- Rear Shocks для BRP Lynx Rave SC 600 E-TEC - 2012
-
№АртикулНазвание
-
1619330004 Shock, Front Arm (cal.503191863)Shock, Front Arm (cal.503191863)
-
1503192998 Shock, Rear Arm (cal.503192998)Shock, Rear Arm (cal.503192998)
-
2230060 Seal Carrier Ass?y 46 mm.Seal Carrier Ass?y 46 mm.
-
3503189008 Flotting PistonFlotting Piston
-
4503189007 O-RingO-Ring
-
5503189006 Piston RingPiston Ring
-
6505070398 Air ValveAir Valve
-
7505070399 ScrewScrew
-
8505070400 O-RingO-Ring
-
10619300060 Shim 46 mm. 17 X 0,114Shim 46 mm. 17 X 0,114
-
10619300069 Shim 46 mm. 17 X 0,203Shim 46 mm. 17 X 0,203
-
10619300068 Shim 46 mm. 18 X 0,114Shim 46 mm. 18 X 0,114
-
10619300067 Shim 46 mm. 18 X 0,152Shim 46 mm. 18 X 0,152
-
10230029 Shim 46 mm. 20 X 0,114Shim 46 mm. 20 X 0,114
-
10230030 Shim 46 mm. 20 X 0,152Shim 46 mm. 20 X 0,152
-
10230031 Shim 46 mm. 20 X 0,203Shim 46 mm. 20 X 0,203
-
10230032 Shim 46 mm. 20 X 0,254Shim 46 mm. 20 X 0,254
-
10619300097 Shim 46 mm. 20 X 0,305Shim 46 mm. 20 X 0,305
-
10619300143 Shim 46 mm. 22 X 0,114Shim 46 mm. 22 X 0,114
-
10619300140 Shim 46 mm. 22 X 0,152Shim 46 mm. 22 X 0,152
-
10619300098 Shim 46 mm. 22 X 0,203Shim 46 mm. 22 X 0,203
-
10619300134 Shim 46 mm. 22 X 0,254Shim 46 mm. 22 X 0,254
-
10619300144 Shim 46 mm. 22 X 0,305Shim 46 mm. 22 X 0,305
-
10619300145 Shim 46 mm. 24 X 0,114Shim 46 mm. 24 X 0,114
-
10619300146 Shim 46 mm. 24 X 0,152Shim 46 mm. 24 X 0,152
-
10619300147 Shim 46 mm. 24 X 0,203Shim 46 mm. 24 X 0,203
-
10619300095 Shim 46 mm. 24 X 0,254Shim 46 mm. 24 X 0,254
-
10619300148 Shim 46 mm. 24 X 0,305Shim 46 mm. 24 X 0,305
-
10619300149 Shim 46 mm. 26 X 0,114Shim 46 mm. 26 X 0,114
-
10619300141 Shim 46 mm. 26 X 0,152Shim 46 mm. 26 X 0,152
-
10619300150 Shim 46 mm. 26 X 0,203Shim 46 mm. 26 X 0,203
-
10619300099 Shim 46 mm. 26 X 0,254Shim 46 mm. 26 X 0,254
-
10619300100 Shim 46 mm. 26 X 0,305Shim 46 mm. 26 X 0,305
-
10619300101 Shim 46 mm. 28 X 0,114Shim 46 mm. 28 X 0,114
-
10619300151 Shim 46 mm. 28 X 0,152Shim 46 mm. 28 X 0,152
-
10619300102 Shim 46 mm. 28 X 0,203Shim 46 mm. 28 X 0,203
-
10619300103 Shim 46 mm. 28 X 0,254Shim 46 mm. 28 X 0,254
-
10619300152 Shim 46 mm. 28 X 0,305Shim 46 mm. 28 X 0,305
-
10619300153 Shim 46 mm. 30 X 0,114Shim 46 mm. 30 X 0,114
-
10619300104 Shim 46 mm. 30 X 0,152Shim 46 mm. 30 X 0,152
-
10619300154 Shim 46 mm. 30 X 0,203Shim 46 mm. 30 X 0,203
-
10619300113 Shim 46 mm. 30 X 0,254Shim 46 mm. 30 X 0,254
-
10619300056 Shim 46 mm. 30 X 0,305Shim 46 mm. 30 X 0,305
-
10230082 Shim 46 mm. 32 X 0,114Shim 46 mm. 32 X 0,114
-
10619300137 Shim 46 mm. 32 X 0,152Shim 46 mm. 32 X 0,152
-
10619300142 Shim 46 mm. 32 X 0,203Shim 46 mm. 32 X 0,203
-
10619300059 Shim 46 mm. 32 X 0,254Shim 46 mm. 32 X 0,254
-
10619300022 Shim 46 mm. 32 X 0,305Shim 46 mm. 32 X 0,305
-
10230033 Shim 46 mm. 34 X 0,114Shim 46 mm. 34 X 0,114
-
10230034 Shim 46 mm. 34 X 0,152Shim 46 mm. 34 X 0,152
-
10230035 Shim 46 mm. 34 X 0,203Shim 46 mm. 34 X 0,203
-
10230036 Shim 46 mm. 34 X 0,254Shim 46 mm. 34 X 0,254
-
10619300070 Shim 46 mm. 34 X 0,305Shim 46 mm. 34 X 0,305
-
10230037 Shim 46 mm. 36 X 0,114Shim 46 mm. 36 X 0,114
-
10619300155 Shim 46 mm. 36 X 0,152Shim 46 mm. 36 X 0,152
-
10619300142 Shim 46 mm. 36 X 0,203Shim 46 mm. 36 X 0,203
-
10619300156 Shim 46 mm. 36 X 0,254Shim 46 mm. 36 X 0,254
-
10619300105 Shim 46 mm. 36 X 0,305Shim 46 mm. 36 X 0,305
-
10230040 Shim 46 mm. 38 X 0,152Shim 46 mm. 38 X 0,152
-
10230041 Shim 46 mm. 38 X 0,203Shim 46 mm. 38 X 0,203
-
10230042 Shim 46 mm. 38 X 0,254Shim 46 mm. 38 X 0,254
-
10619300106 Shim 46 mm. 38 X 0,305Shim 46 mm. 38 X 0,305
-
10619300157 Shim 46 mm. 40 X 0,152Shim 46 mm. 40 X 0,152
-
10619300112 Shim 46 mm. 40 X 0,203Shim 46 mm. 40 X 0,203
-
10619300158 Shim 46 mm. 40 X 0,254Shim 46 mm. 40 X 0,254
-
10619300107 Shim 46 mm. 40 X 0,305Shim 46 mm. 40 X 0,305
-
11619300159 Piston 46 mm. 1.2 mmPiston 46 mm. 1.2 mm
-
11619300160 Piston 46 mm. 1.7 mmPiston 46 mm. 1.7 mm
-
11230039 Piston 46 mm. 2.0 mmPiston 46 mm. 2.0 mm
-
11230043 Piston 46 mm. 0 mm.Piston 46 mm. 0 mm.
