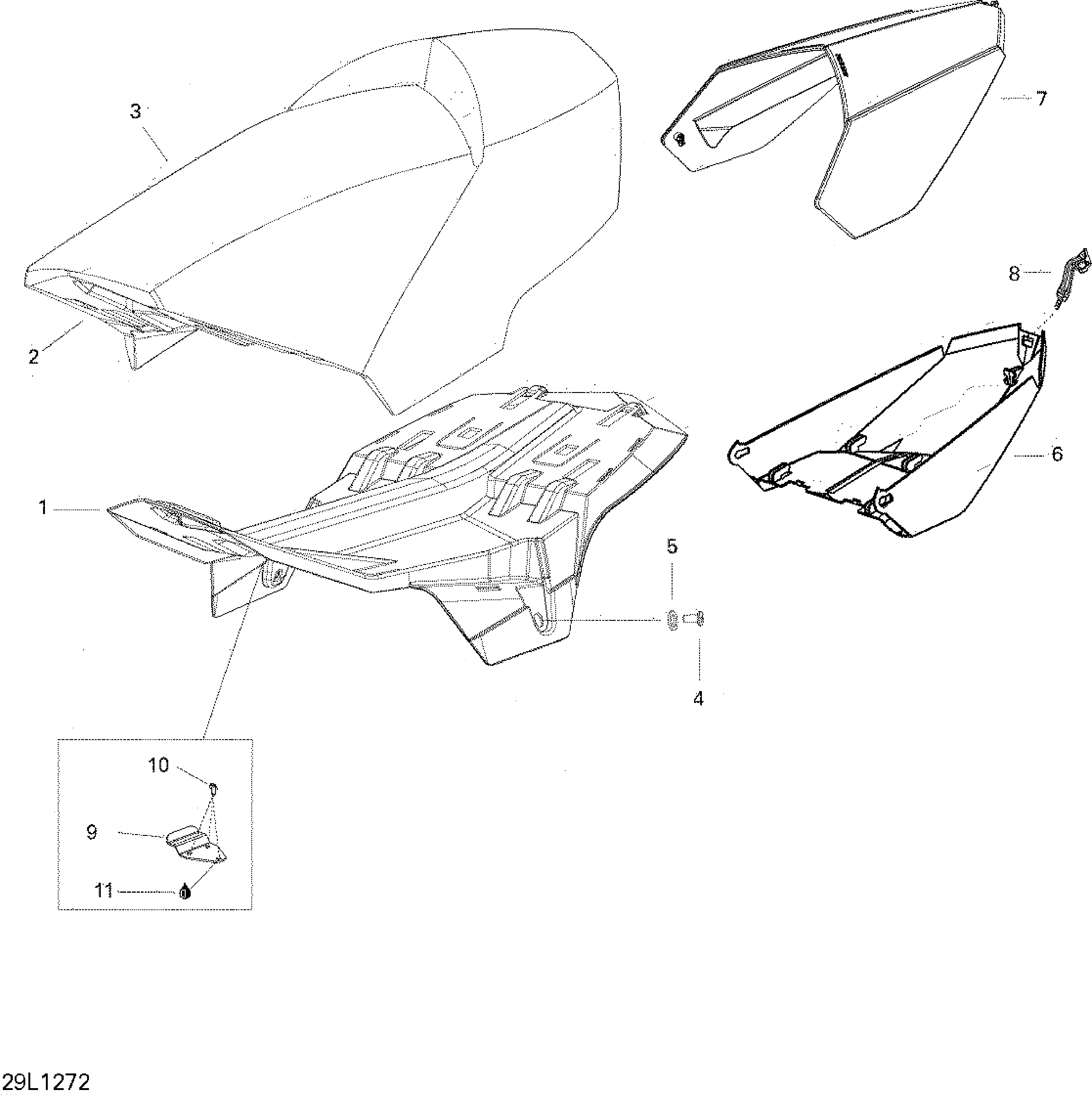

09- Seat для BRP Lynx Rave SC 600 E-TEC - 2012
-
№АртикулНазвание
-
1510004899 Seat baseSeat base
-
2510004932 FoamFoam
-
3510005533 CoverCover
-
4250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
5510005346 WasherWasher
-
6511000757 TrunkTrunk
-
7511000568 Trunk CoverTrunk Cover
-
8511000528 BracketBracket
-
9510005129 Seat front fastening plateSeat front fastening plate
-
10205461046 Screw socketScrew socket
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
