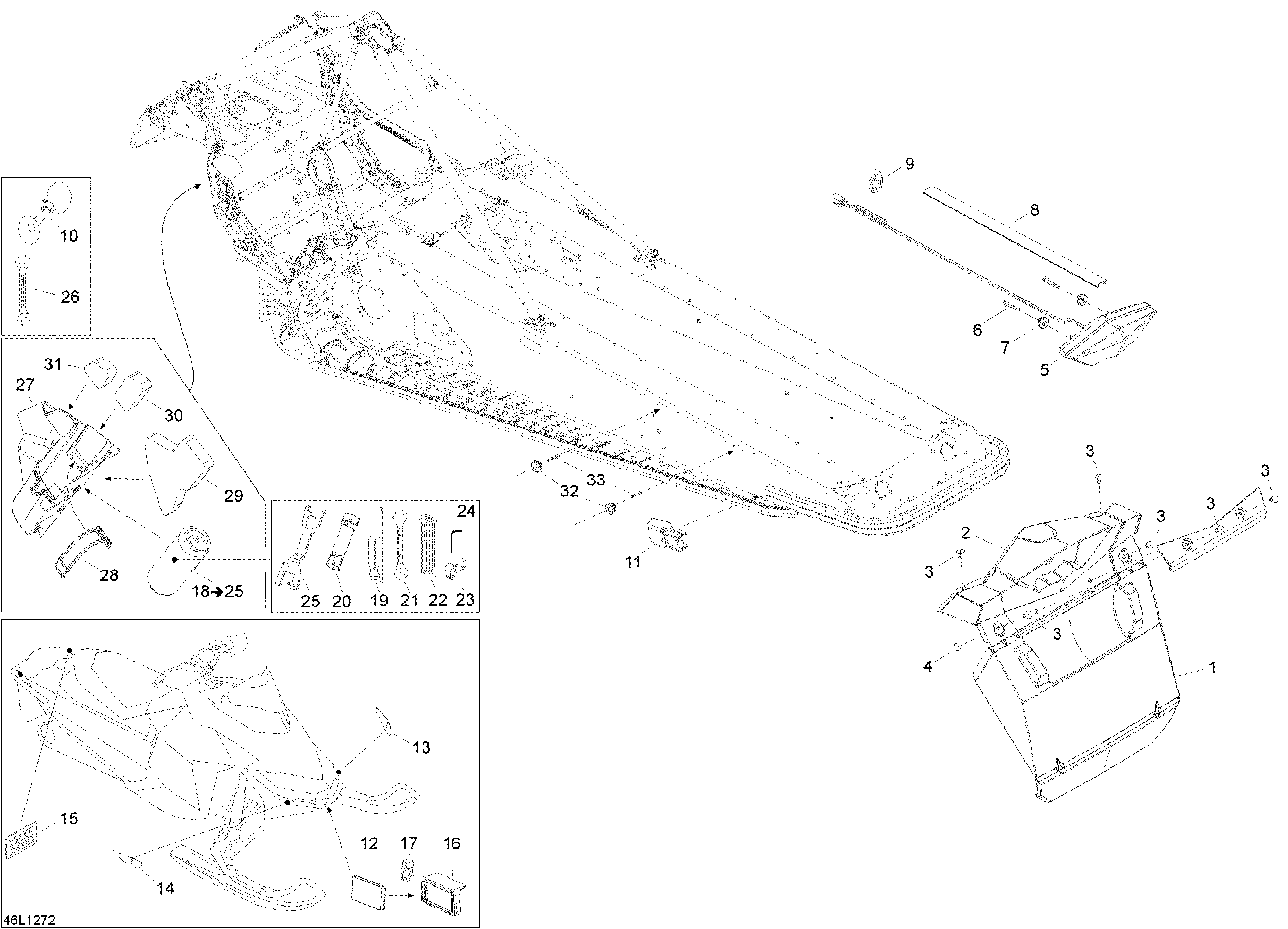

09- Utilities для BRP Lynx Rave SC 600 E-TEC - 2012
-
№АртикулНазвание
-
1520001070 Snow GuardSnow Guard
-
2511000583 Light CoverLight Cover
-
3293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
4517124300 WasherWasher
-
5520000967 Rear LightRear Light
-
6250000451 Screw Torx FlangeScrew Torx Flange
-
7705003666 Rubber GrommetRubber Grommet
-
8520000829 Radiator TrimRadiator Trim
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
10549011291 HornHorn
-
11520000567 CapCap
-
1221118 Reflector (Bright)Reflector (Bright)
-
13520000719 LH Front ReflectorLH Front Reflector
-
14520000718 RH Front ReflectorRH Front Reflector
-
1521121 Reflector (Yellow)Reflector (Yellow)
-
16520000871 Reflector SupportReflector Support
-
1727120 Tie-RapTie-Rap
-
18529000054 Tool KitTool Kit
-
19529000004 Screw DriverScrew Driver
-
20529000046 Set Key 16 / 21 MMSet Key 16 / 21 MM
-
21529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
22412500200 Starter Rope, MeterStarter Rope, Meter
-
23529000060 Starter GripStarter Grip
-
24520001028 Spacing ToolSpacing Tool
-
25520000988 Wrench SuspensionWrench Suspension
-
2634017 Wrench 17/19Wrench 17/19
-
27520000842 Tool Kit RackTool Kit Rack
-
28520000528 LatchLatch
-
29520001059 FoamFoam
-
30520001061 FoamFoam
-
31520001062 FoamFoam
-
32520000889 Anchor LinkAnchor Link
-
33250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
