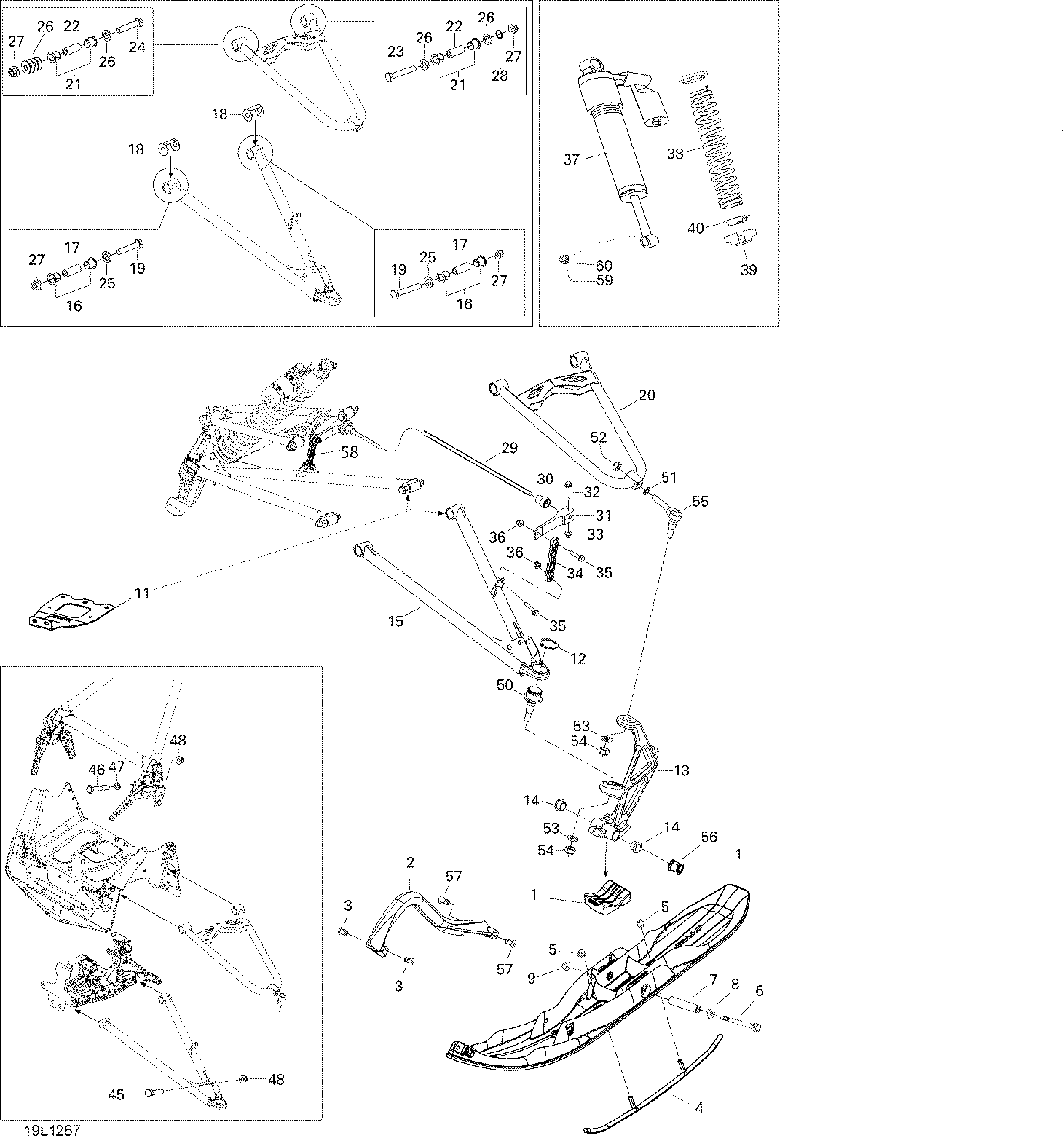

07- Front Suspension And Ski для BRP Lynx Xtrim Boondocker 800R E-TEC - 2012
-
№АртикулНазвание
-
1505072673 Plastic SkiPlastic Ski
-
2505070963 Handle, BlackHandle, Black
-
3505071812 RetainerRetainer
-
4605352643 Carbide KitCarbide Kit
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
640391 Socket head screw M10 x 130Socket head screw M10 x 130
-
7506133300 SpacerSpacer
-
8732900049 WasherWasher
-
933012 Elastic stop nut M10Elastic stop nut M10
-
10505072561 Rubber DamperRubber Damper
-
11505072584 Support plate (Optional)Support plate (Optional)
-
12293370035 CirclipCirclip
-
13505072959 LH Ski LegLH Ski Leg
-
13505072960 RH Ski LegRH Ski Leg
-
14505072690 Leg CushionLeg Cushion
-
15505072497 RH Lower ArmRH Lower Arm
-
15505072498 LH Lower ArmLH Lower Arm
-
16503191766 CushionCushion
-
17505072401 Aluminum BushingAluminum Bushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505072375 Upper ArmUpper Arm
-
21505072250 BushingBushing
-
22505072143 BushingBushing
-
23250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
24250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
29505072444 StabilisatorStabilisator
-
30505072445 BushingBushing
-
31505072446 Stabilisator LeverStabilisator Lever
-
32207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
36233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37505073157 Front Shock (LH)Front Shock (LH)
-
37505073158 Front Shock (RH)Front Shock (RH)
-
38505073228 Spring (300mm - 20N/mm)Spring (300mm - 20N/mm)
-
39503192608 Spring StopperSpring Stopper
-
40505073150 WasherWasher
-
45207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
46207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
47503189564 WasherWasher
-
48233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
50505072682 Lower Ball JointLower Ball Joint
-
51503189276 WasherWasher
-
52250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
53234021410 Flat Washer 12 mmFlat Washer 12 mm
-
54250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
55505072257 Upper Ball JointUpper Ball Joint
-
56505071999 SpacerSpacer
-
57505072133 RetainerRetainer
-
58505073116 Double Ball Joint LinkDouble Ball Joint Link
-
59207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
60505072753 Adjustment KnobAdjustment Knob
