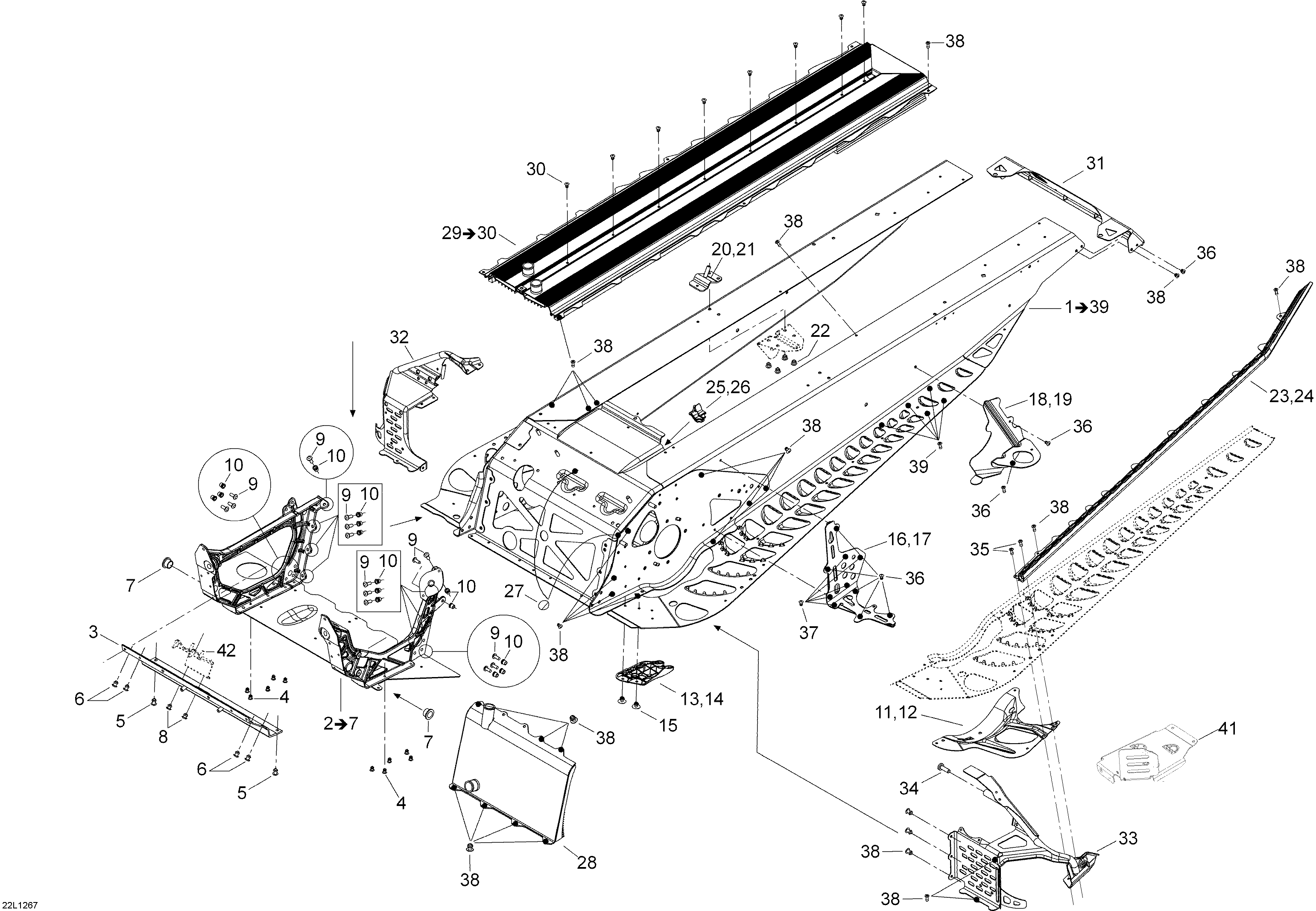

09- Frame для BRP Lynx Xtrim Boondocker 800R E-TEC - 2012
-
№АртикулНазвание
-
1518326837 Frame assy. Includes 1 to 39Frame assy. Includes 1 to 39
-
2518326077 E ModuleE Module
-
3518326198 Front MemberFront Member
-
4390909100 Avex RivetAvex Rivet
-
5293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505072690 Leg CushionLeg Cushion
-
8293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11518324874 RH ReinforcementRH Reinforcement
-
12518324875 LH ReinforcementLH Reinforcement
-
13518325782 RH DeflectorRH Deflector
-
14518325783 LH DeflectorLH Deflector
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18518327085 Angle supportAngle support
-
19518327084 PlatePlate
-
20518326421 RH Rear BaseRH Rear Base
-
21518326443 LH Rear BaseLH Rear Base
-
22293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
23518327068 LH RollerLH Roller
-
24518327069 RH RollerRH Roller
-
25518325653 RH SealRH Seal
-
26518325654 LH SealLH Seal
-
27518325560 Adhesive PatchAdhesive Patch
-
28518326485 Front RadiatorFront Radiator
-
29518326728 Rear Radiator Ass'y, 146''. Includes 29 to 30Rear Radiator Ass'y, 146''. Includes 29 to 30
-
30390909100 Avex RivetAvex Rivet
-
31518325421 Rear CapRear Cap
-
32518326216 RH StirupRH Stirup
-
33518326239 LH StirupLH Stirup
-
34250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
35390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
36390909200 Avex RivetAvex Rivet
-
37390909100 Avex RivetAvex Rivet
-
38390909200 Avex RivetAvex Rivet
-
41518327088 Footrest L.H.Footrest L.H.
-
41518327089 Footrest R.H.Footrest R.H.
-
42518325943 MAG Engine SupportMAG Engine Support
