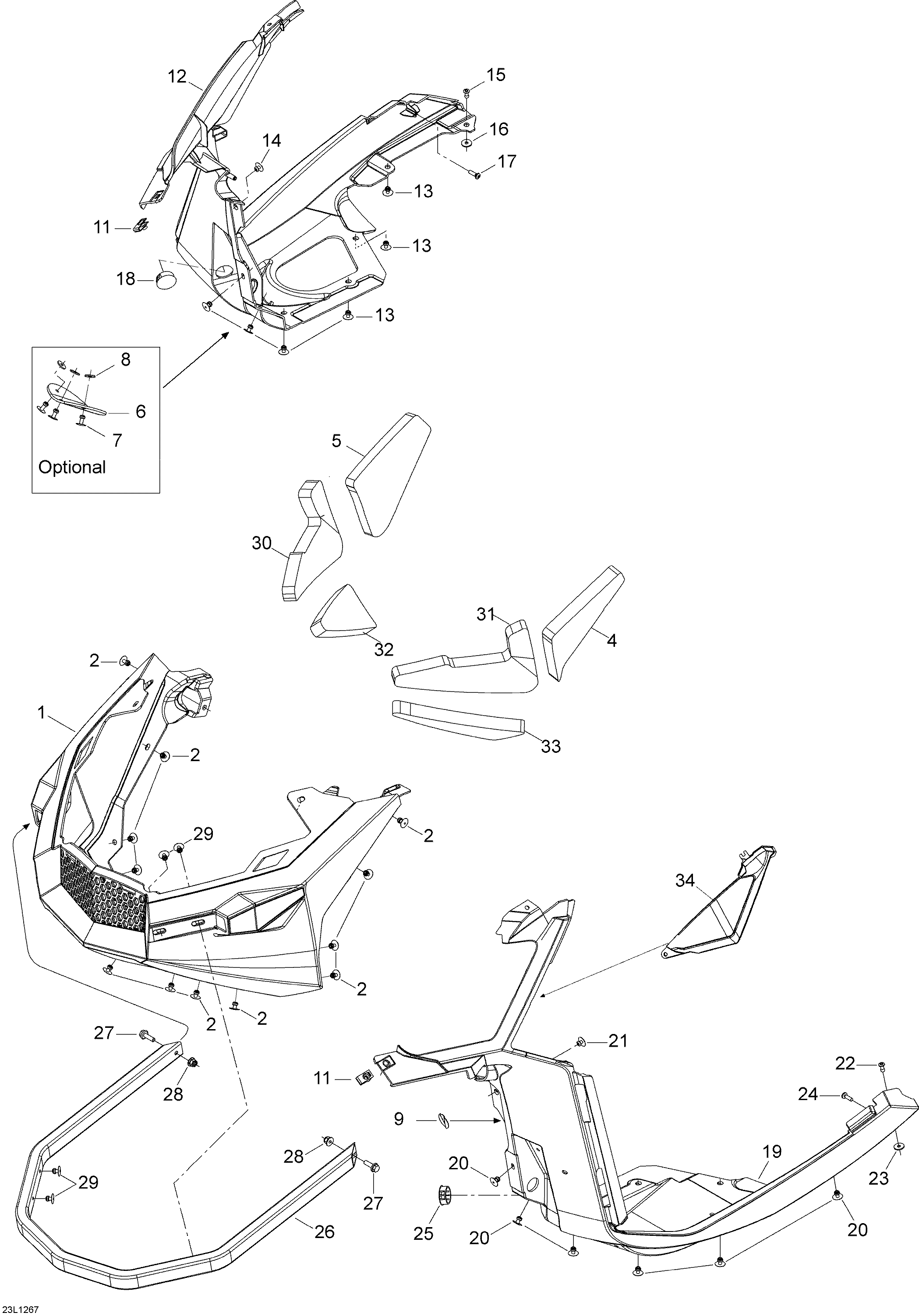

09- Bottom Pan для BRP Lynx Xtrim Boondocker 800R E-TEC - 2012
-
№АртикулНазвание
-
1502006971 Front Bottom Pan, Deep BlackFront Bottom Pan, Deep Black
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4502007210 RH Foam UpperRH Foam Upper
-
5502007211 LH Foam UpperLH Foam Upper
-
6502006935 Snow DeflectorSnow Deflector
-
7293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
8517124300 WasherWasher
-
9293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
11250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
12502006831 RH Bottom PanRH Bottom Pan
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
15390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
16517124300 WasherWasher
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
18414916600 Nylon CapNylon Cap
-
19502006832 LH Bottom PanLH Bottom Pan
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
23517124300 WasherWasher
-
24250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
25414916600 Nylon CapNylon Cap
-
26502007116 Front BumperFront Bumper
-
27207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30502007212 RH Middle FoamRH Middle Foam
-
31502007213 LH Middle FoamLH Middle Foam
-
32502007214 RH Lower FoamRH Lower Foam
-
33502007215 LH Lower FoamLH Lower Foam
-
34502007251 Bottom Pan CapBottom Pan Cap
