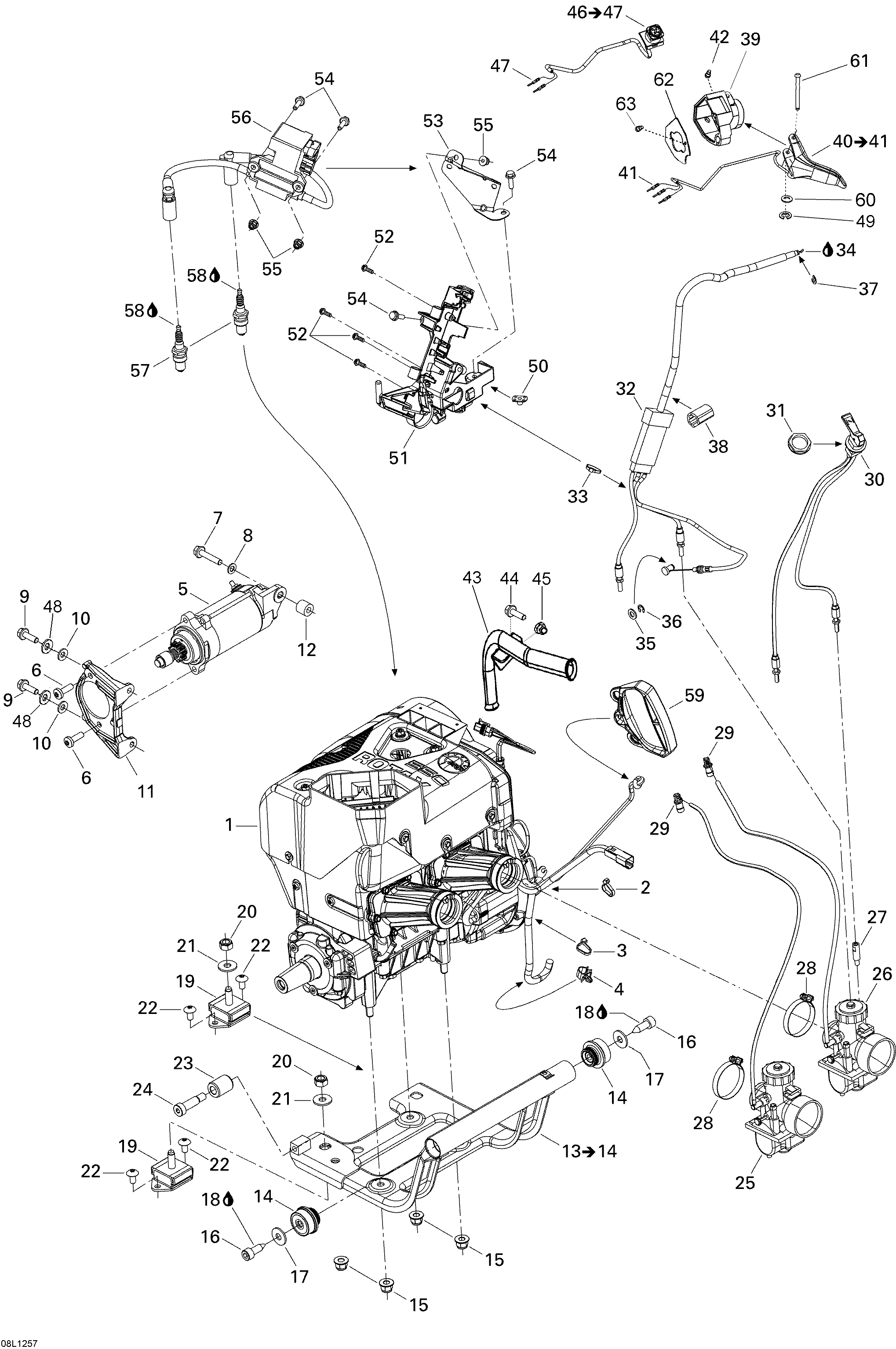

01- Engine And Engine Support для BRP Lynx 59 YETI 550 - 2012

№

Артикул

Название
2

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm

60 ₽
3

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm

60 ₽
4

515176795 Clip

Clip

1 980 ₽
5

515176858 Starter Ass'y. Electric Start

Starter Ass'y. Electric Start

0 ₽
6

250000248 Torx Screw M8 X 25, Scotch Grip. Electric Start

Torx Screw M8 X 25, Scotch Grip. Electric Start

280 ₽
7

207584544 Hex. Flanged Screw M8 X 45, Scotch Grip. Electric Start

Hex. Flanged Screw M8 X 45, Scotch Grip. Electric Start

2 650 ₽
8

250200008 Flat Washer With Teflon 8 mm. Electric Start

Flat Washer With Teflon 8 mm. Electric Start

1 330 ₽
9

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip. Electric Start

Hex. Flanged Screw M8 X 25, Scotch Grip. Electric Start

670 ₽
10

234281474 Conical Spring Washer M8. Electric Start

Conical Spring Washer M8. Electric Start

540 ₽
11

512060328 Support. Electric Start

Support. Electric Start

5 700 ₽
12

515176597 Spacer. Electric Start

Spacer. Electric Start

1 150 ₽
13

512060637 Engine Support Ass'y

Engine Support Ass'y

18 960 ₽
14

512059691 Rubber Mount

Rubber Mount

16 700 ₽
15

233201414 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

810 ₽
16

250000094 Screw M10 X 30

Screw M10 X 30

2 100 ₽
17

250200014 Flat Washer

Flat Washer

540 ₽
18

413703400 Loctite 222, 10 Cc

Loctite 222, 10 Cc

1 810 ₽
19

512060564 Rubber Mount

Rubber Mount

13 300 ₽
20

232500416 Elastic Stop Nut M10

Elastic Stop Nut M10

670 ₽
21

250200014 Flat Washer

Flat Washer

540 ₽
22

250000198 Torx Truss Screw M8 X 16

Torx Truss Screw M8 X 16

310 ₽
23

512060395 Stopper

Stopper

6 020 ₽
24

250000463 Socket Head Screw, Scotch Grip

Socket Head Screw, Scotch Grip

2 650 ₽
25

403138814 Carburetor VM30-219, PTO

Carburetor VM30-219, PTO

101 850 ₽
26

403138813 Carburetor VM30-218, MAG

Carburetor VM30-218, MAG

129 850 ₽
27

512060562 Extension

Extension

1 510 ₽
28

512059834 Gemi Clamp

Gemi Clamp

990 ₽
29

414814100 Male Connector

Male Connector

800 ₽
30

512060674 Choke Cable

Choke Cable

15 470 ₽
31

512060671 Plastic Nut

Plastic Nut

330 ₽
32

512060414 Throttle Cable

Throttle Cable

8 180 ₽
33

293750002 Tie-Rap 142 mm

Tie-Rap 142 mm

380 ₽
34

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g

5 900 ₽
35

234081100 Flat Washer 8 mm, Nylon

Flat Washer 8 mm, Nylon

460 ₽
36

414753500 Circlip

Circlip

260 ₽
37

414274500 Circlip

Circlip

320 ₽
38

512060313 Protector

Protector

800 ₽
39

512060603 Throttle Housing

Throttle Housing

3 500 ₽
40

512060307 Handle Ass'y

Handle Ass'y

8 000 ₽
41

515175232 Male Terminal

Male Terminal

540 ₽
42

414440800 Socket Set Screw M8 X 10

Socket Set Screw M8 X 10

1 330 ₽
43

512060451 Tubing

Tubing

14 250 ₽
44

207662544 Hex. Flanged Screw M6 X 25

Hex. Flanged Screw M6 X 25

240 ₽
45

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
46

515176988 Kill Switch

Kill Switch

6 110 ₽
47

515175232 Male Terminal

Male Terminal

540 ₽
48

224081201 Flat Washer

Flat Washer

330 ₽
49

293370050 Circlip

Circlip

150 ₽
50

293100003 Nut M6

Nut M6

2 690 ₽
51

512060278 Coil Support

Coil Support

1 590 ₽
52

241151640 Hex. Flanged Screw K50 X 16

Hex. Flanged Screw K50 X 16

540 ₽
53

512060460 Support Coils

Support Coils

1 630 ₽
54

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
55

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
56

512060324 Calibrated Module

Calibrated Module

138 320 ₽
57

512059552 Spark Plug, NGK BR9ECS-5

Spark Plug, NGK BR9ECS-5

6 110 ₽
58

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g

5 900 ₽
59

512060136 Starter Grip

Starter Grip

7 250 ₽
60

234051600 Flat Washer M5, Stainless

Flat Washer M5, Stainless

280 ₽
61

414438700 Lever Pin

Lever Pin

950 ₽
62

512060390 Plate

Plate

3 090 ₽
63

250000265 Torx Screw M2.9 X 12

Torx Screw M2.9 X 12

50 ₽
