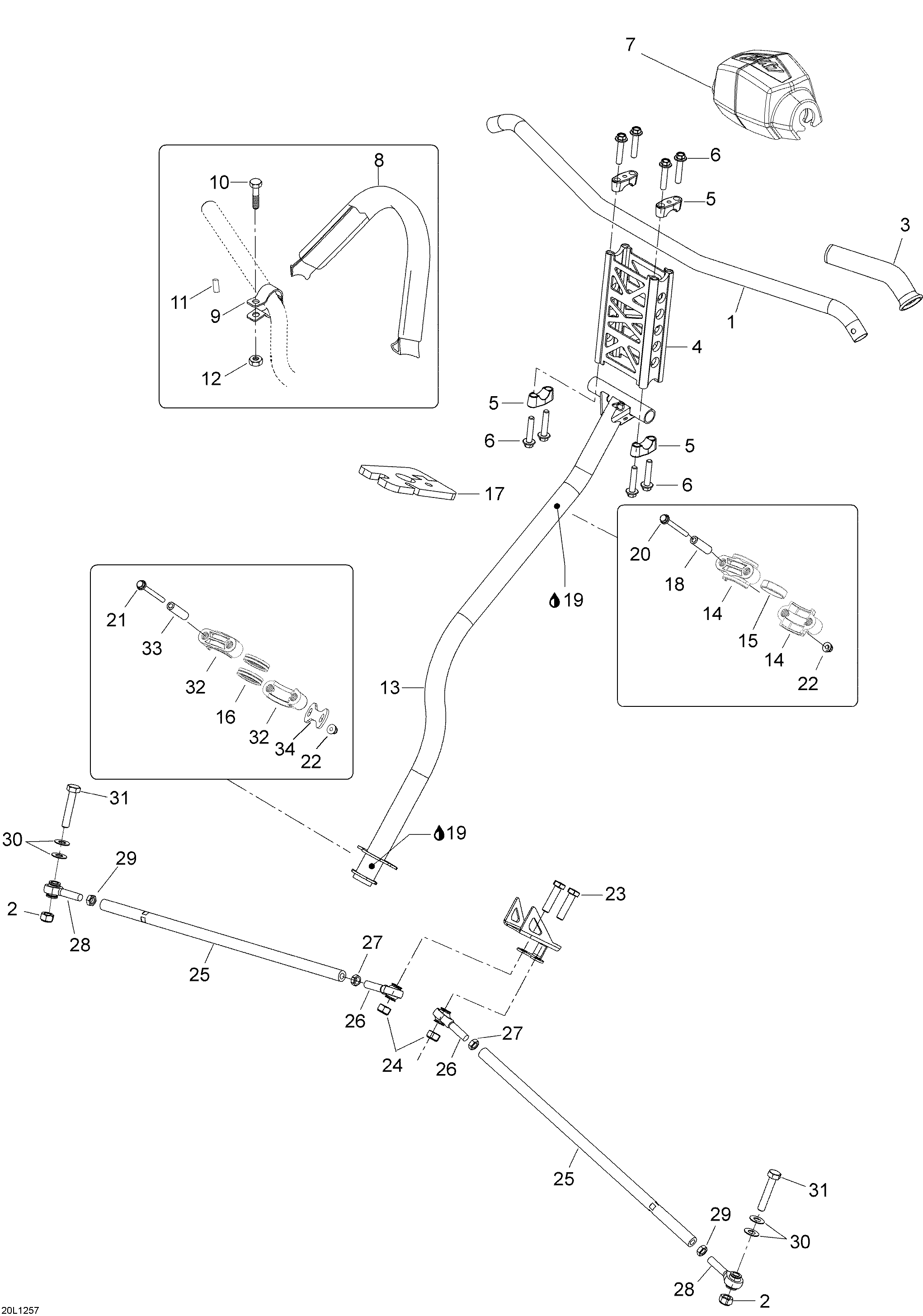

07- Steering System для BRP Lynx 59 YETI 550 - 2012
-
№АртикулНазвание
-
1506152399 Hanlde BarHanlde Bar
-
2232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
3506152483 GripGrip
-
4860200269 Handlebar ExtensionHandlebar Extension
-
5506152395 Steering SupportSteering Support
-
6250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
7506152265 Steering PadSteering Pad
-
8506152115 Strap Ass'yStrap Ass'y
-
9506152536 Painted Support PlatePainted Support Plate
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11506152156 BushingBushing
-
12233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
13506152473 Main TubeMain Tube
-
14506152508 Upper Half-HousingUpper Half-Housing
-
15506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
16506152518 Lower Vibration RingLower Vibration Ring
-
17506152404 CushionCushion
-
18506152297 Housing BushingHousing Bushing
-
19293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
20207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
21207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
22207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
23207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
24232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
25506152436 Tie RodTie Rod
-
26506152081 LH Ball JointLH Ball Joint
-
27250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
28506152019 RH Ball JointRH Ball Joint
-
29732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
30506152194 WasherWasher
-
3140016 Hex Screw M10 X 55Hex Screw M10 X 55
-
32506152217 Lower Half-HousingLower Half-Housing
-
33506152388 Lower Housing BushingLower Housing Bushing
-
34506152389 Stopper PlateStopper Plate
