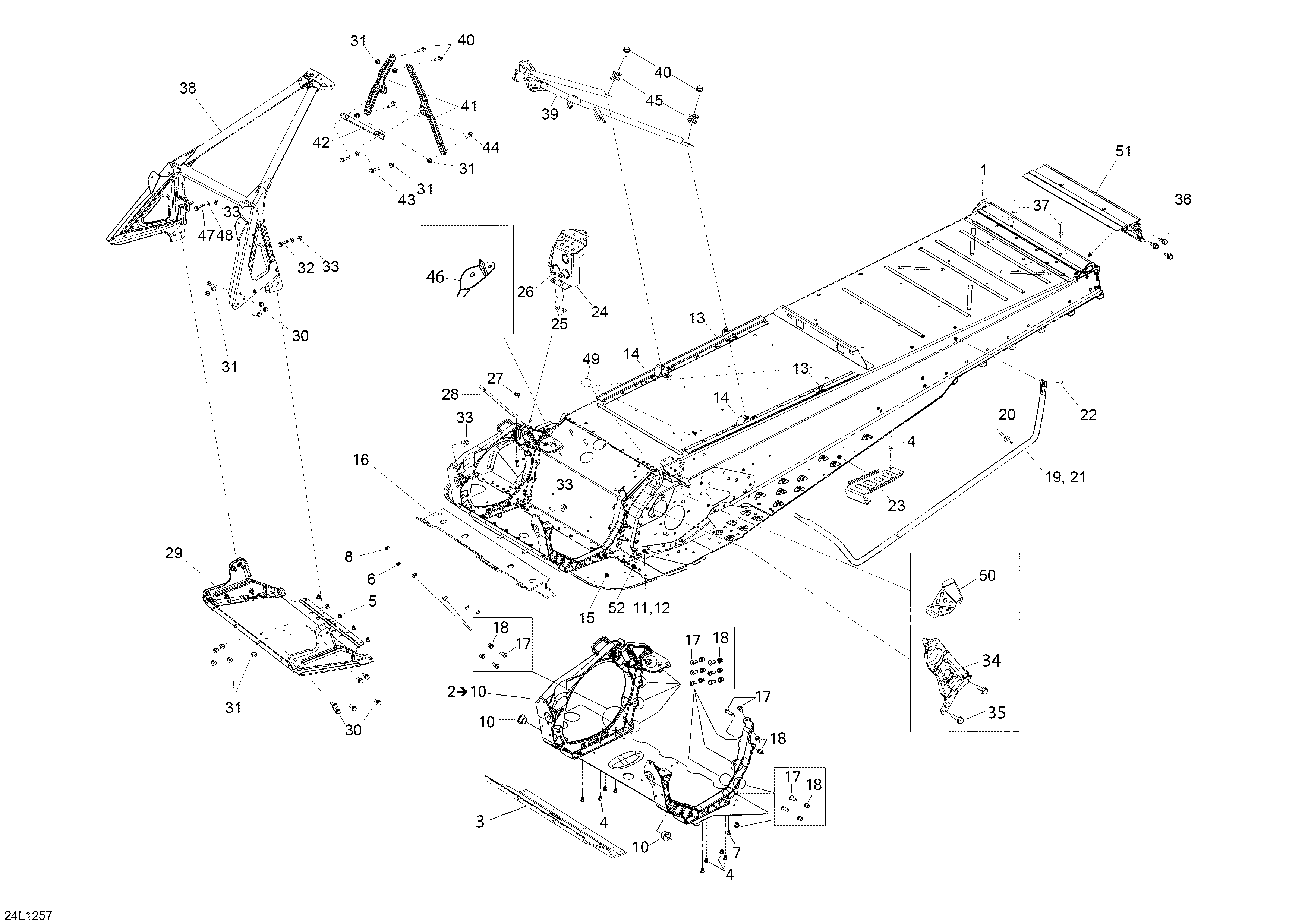

09- Frame для BRP Lynx 59 YETI 550 - 2012
-
№АртикулНазвание
-
1518327050 Frame XU 552 FC PPSFrame XU 552 FC PPS
-
2518326515 Module EModule E
-
3518325818 Front MemberFront Member
-
4390909200 Avex RivetAvex Rivet
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
9390909100 Avex RivetAvex Rivet
-
10505072690 Leg CushionLeg Cushion
-
11518326658 Drive Axle Cover L.H.Drive Axle Cover L.H.
-
12518326659 Drive Axle Cover R.H.Drive Axle Cover R.H.
-
13518325987 Seat Box BracketSeat Box Bracket
-
14518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
14518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
15518325524 Frame Corner LHFrame Corner LH
-
15518325526 Frame Corner RHFrame Corner RH
-
16518326719 Engine Support MachinedEngine Support Machined
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
20293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
21518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
22207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
23520000492 FootrestFootrest
-
24518326671 Toe Hook LHToe Hook LH
-
24518326672 Toe Hook RHToe Hook RH
-
25207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28514054616 Spring BracketSpring Bracket
-
29518326213 S ModuleS Module
-
30207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34518326714 Pulley Support MachinedPulley Support Machined
-
35207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
36250000376 Hex Forming Screw DIN.7500DHex Forming Screw DIN.7500D
-
37293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
38518327004 Front Member assyFront Member assy
-
39518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
40207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
41518325114 Upper Column SupportUpper Column Support
-
42518325115 Center Column SupportCenter Column Support
-
43250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
44250000450 Hex. Flange Screw DIN.6921Hex. Flange Screw DIN.6921
-
46518326520 RH.SupportRH.Support
-
47207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
48224061201 Flat WasherFlat Washer
-
49518325560 Adhesive PatchAdhesive Patch
-
50518325626 Brake Hose CoverBrake Hose Cover
-
51518327194 Rear profileRear profile
-
52414644300 DartDart
