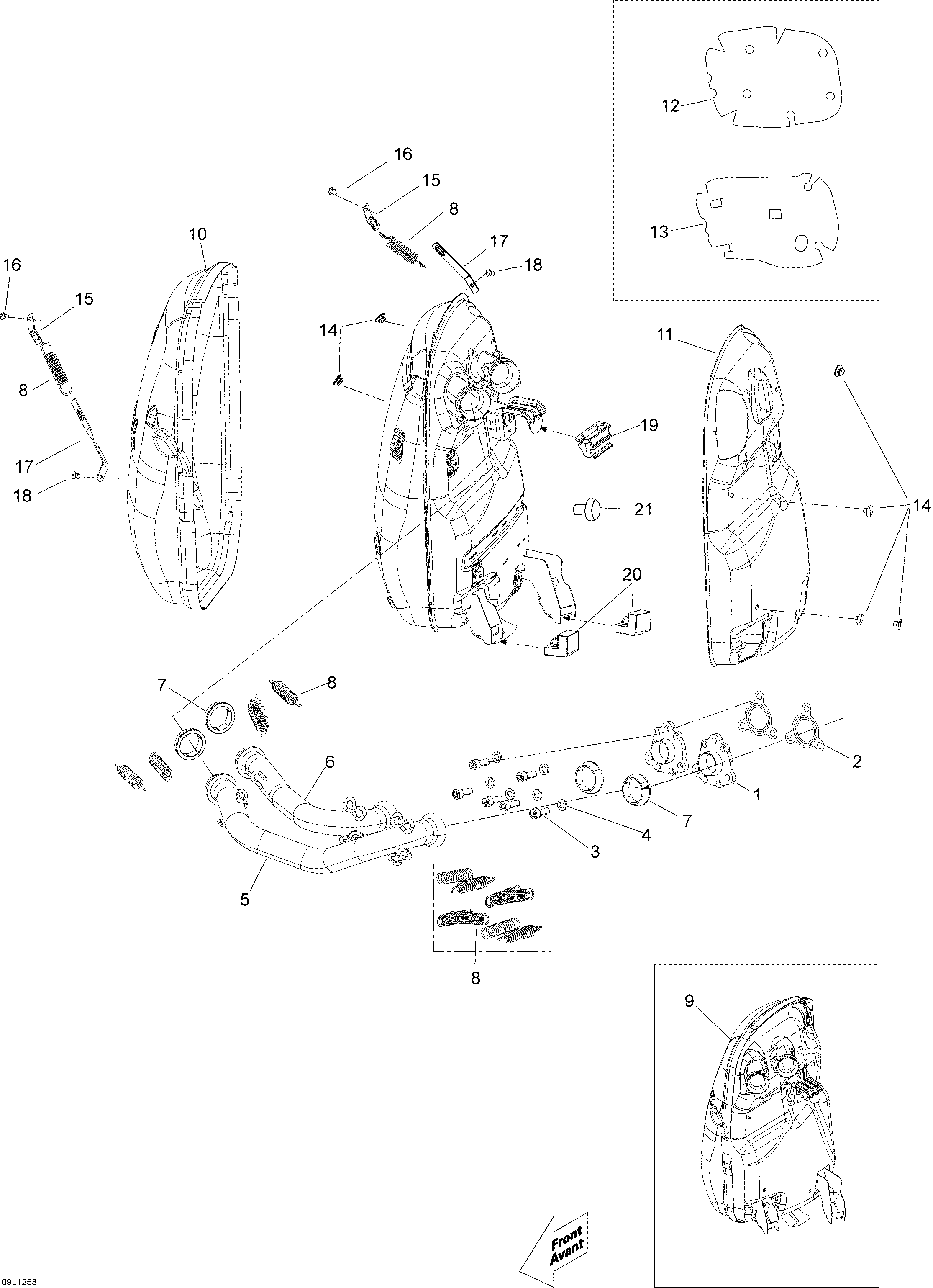

01- Exhaust System для BRP Lynx 59 YETI 600 ACE - 2012
-
№АртикулНазвание
-
1514054673 Exhaust ManifoldExhaust Manifold
-
2514054714 GasketGasket
-
3250000414 Socket Head Screw M8 X 22Socket Head Screw M8 X 22
-
4514053837 WasherWasher
-
5514054733 Welded TubeWelded Tube
-
6514054734 Welded TubeWelded Tube
-
7514054807 Exhaust GasketExhaust Gasket
-
8514054226 SpringSpring
-
9514054852 Muffler Ass'y NTCMuffler Ass'y NTC
-
10514054644 RH Heat ShieldRH Heat Shield
-
11514054645 LH Heat ShieldLH Heat Shield
-
12514054256 Insulating WoolInsulating Wool
-
13514054257 Insulating WoolInsulating Wool
-
14390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
15514054522 Spring BracketSpring Bracket
-
16390909200 Avex RivetAvex Rivet
-
17514054620 Spring BracketSpring Bracket
-
18390909100 Avex RivetAvex Rivet
-
19514054737 Upper StopperUpper Stopper
-
20514054529 Lower StopperLower Stopper
-
21514053654 Rubber BumperRubber Bumper
