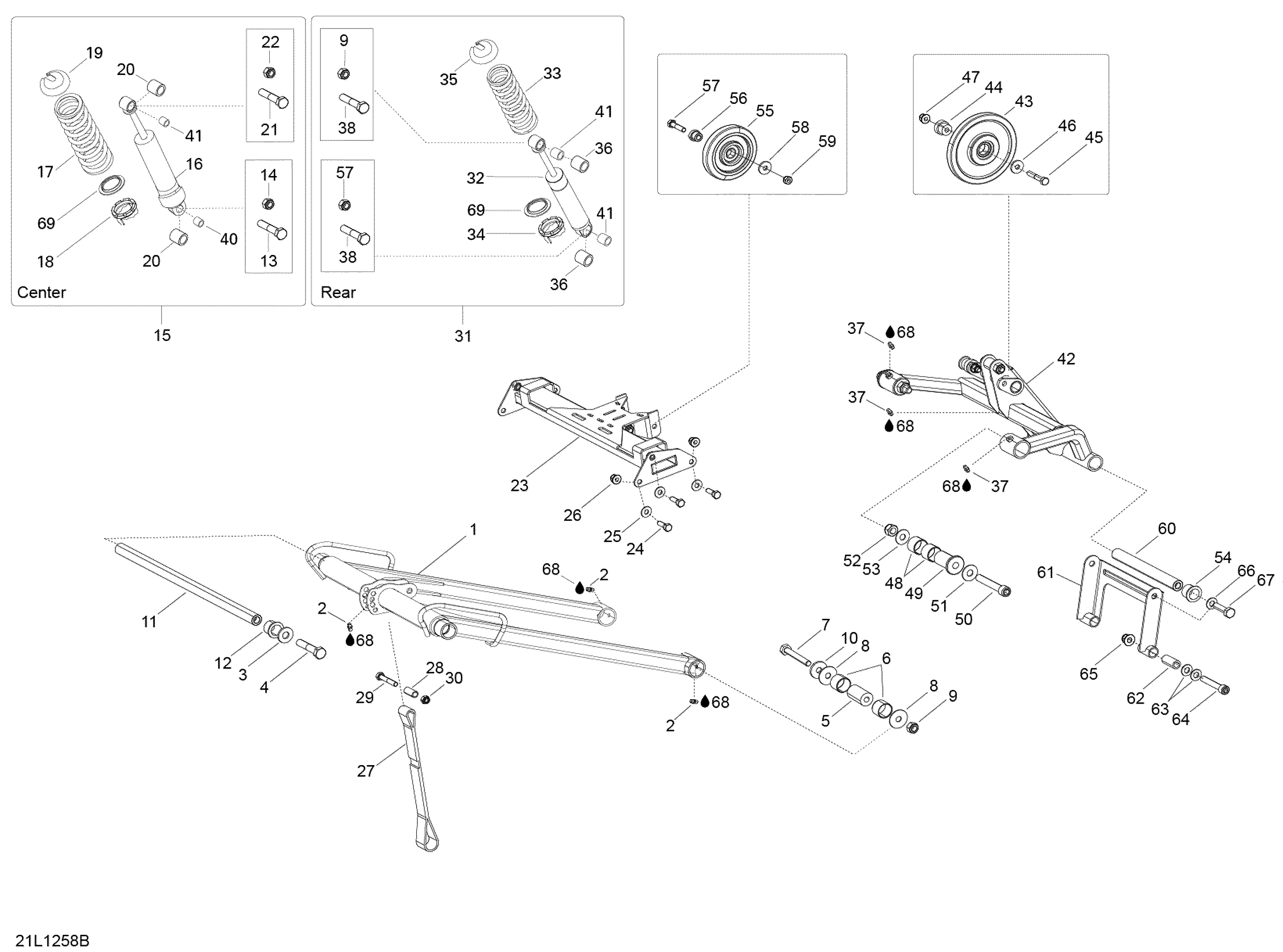

08- Rear Suspension для BRP Lynx 59 YETI 600 ACE - 2012
-
№АртикулНазвание
-
1503193092 Front ArmFront Arm
-
2408200700 Grease FittingGrease Fitting
-
3250200005 Conical Spring Washer M12Conical Spring Washer M12
-
440243 Screw Hex M12 X 60Screw Hex M12 X 60
-
5605354157 ShaftShaft
-
631065 BushingBushing
-
740021 Screw Hex M10 x 70Screw Hex M10 x 70
-
8605355801 WasherWasher
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10503183300 WasherWasher
-
115347719 Upper ShaftUpper Shaft
-
1231024 CushionCushion
-
13250000549 Screw Hex M10 X 45Screw Hex M10 X 45
-
14232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
16503192369 ShockShock
-
17503192788 SpringSpring
-
18230078 Adjusting CamAdjusting Cam
-
19230076 Spring SeatSpring Seat
-
2031094 CushionCushion
-
2140016 Screw Hex M10 X 45Screw Hex M10 X 45
-
22232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
23503192344 Middle BeamMiddle Beam
-
24207182544 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
25605620002 WasherWasher
-
26233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27605355116 Limiter strapLimiter strap
-
28605455335 SleeveSleeve
-
29207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
30232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
32503192371 ShockShock
-
33503192428 SpringSpring
-
34230078 Adjusting CamAdjusting Cam
-
35230076 Spring SeatSpring Seat
-
3631094 CushionCushion
-
37408200700 Grease FittingGrease Fitting
-
3840134 Screw Socket M10 X 45Screw Socket M10 X 45
-
39232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
40503192821 BushingBushing
-
415446652 BushingBushing
-
42503193079 Rear Arm WeldRear Arm Weld
-
43503192675 Idler Wheel 133mmIdler Wheel 133mm
-
44605454461 SleeveSleeve
-
45207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
4620077 WasherWasher
-
47233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4831065 BushingBushing
-
49605354157 ShaftShaft
-
50205006544 Screw Socket M10 X 65Screw Socket M10 X 65
-
51503189564 WasherWasher
-
52232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
53605355801 WasherWasher
-
5431024 CushionCushion
-
55572043500 Idler WheelIdler Wheel
-
56605454167 SleeveSleeve
-
57207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
5820077 WasherWasher
-
59232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
60503192397 ShaftShaft
-
61503192346 Rear SwingRear Swing
-
62503192341 Rear Swing ShaftRear Swing Shaft
-
63234001410 Flat Washer 10 mmFlat Washer 10 mm
-
64205006044 Screw Socket M10 X 60Screw Socket M10 X 60
-
65233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
66234001410 Flat Washer 10 mmFlat Washer 10 mm
-
67207204044 Screw Hex M10 X 45Screw Hex M10 X 45
-
68293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
69230049 Spring guideSpring guide
