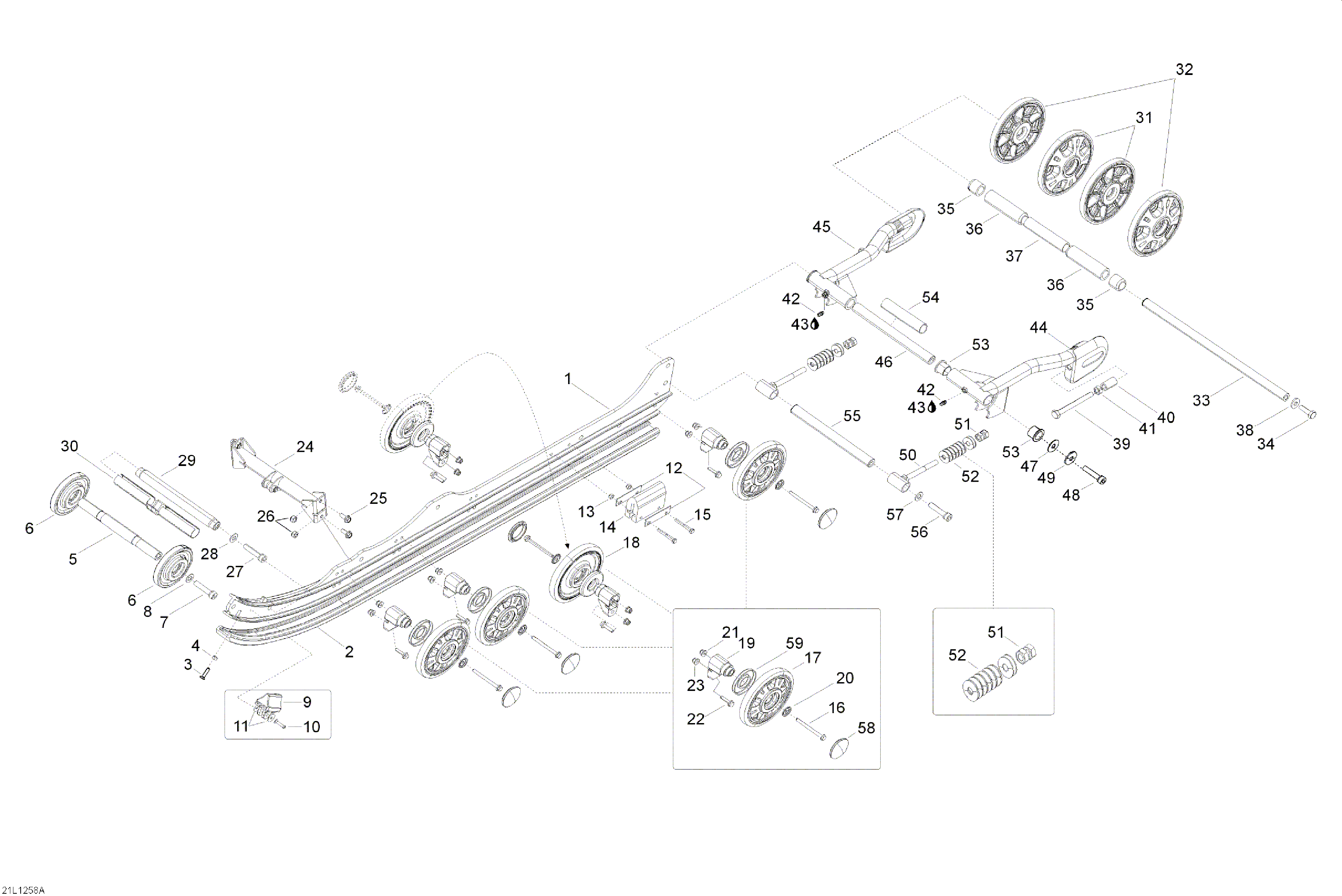

08- Rear Suspension для BRP Lynx 59 YETI 600 ACE - 2012
-
№АртикулНазвание
-
1503192888 Runner PPS 500Runner PPS 500
-
2503192843 Slider ShoeSlider Shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
433010 Nut Stop Elastic M6Nut Stop Elastic M6
-
5503192889 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100Wheel 100
-
7205504544 Screw-Socket M10 X 45Screw-Socket M10 X 45
-
8234001410 Flat Washer 10 mmFlat Washer 10 mm
-
9503192106 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12548387 Support PlateSupport Plate
-
1333010 Nut Stop Elastic M6Nut Stop Elastic M6
-
14570023100 Rubber StopperRubber Stopper
-
15207064044 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
16250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
17503191622 Wheel 141 mm Ass'y, Full MoonWheel 141 mm Ass'y, Full Moon
-
18503191316 Wheel 141 Ass'yWheel 141 Ass'y
-
19503193082 Casted SupportCasted Support
-
20503191820 Wheel Cup M6Wheel Cup M6
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24503192739 Lower Support, Center ShockLower Support, Center Shock
-
25207602587 Screw M10 x 25Screw M10 x 25
-
26232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
27205504544 Screw M10 X 45Screw M10 X 45
-
28234001410 Flat Washer 10 mmFlat Washer 10 mm
-
29503192927 ShaftShaft
-
30605355263 Retainer StrapRetainer Strap
-
31503192140 Wheel 165, BlackWheel 165, Black
-
32503192130 Wheel 165 WhiteWheel 165 White
-
33503191408 Rear AxleRear Axle
-
34250000817 Hex. Screw With NylonHex. Screw With Nylon
-
35503192048 SpacerSpacer
-
36503192671 SpacerSpacer
-
37605448429 SleeveSleeve
-
38503190439 WasherWasher
-
3940239 Screw Hex M10 X 100Screw Hex M10 X 100
-
40503192696 SpacerSpacer
-
41232006414 Hex. Nut M10Hex. Nut M10
-
42408200700 Grease FittingGrease Fitting
-
43293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
44503192053 Extension Swing LHExtension Swing LH
-
45503192054 Extension Swing RHExtension Swing RH
-
465347713 ShaftShaft
-
4720116 Shim 10,5/30X1,5 ZNEShim 10,5/30X1,5 ZNE
-
48205504547 Screw M10 X 45Screw M10 X 45
-
49512056700 Lock WasherLock Washer
-
50503192695 Adjustment ScrewAdjustment Screw
-
51232006414 Hex. Nut M10Hex. Nut M10
-
5225004 Cup SpringCup Spring
-
5331024 CushionCushion
-
54605448429 SleeveSleeve
-
555347717 ShaftShaft
-
56205504547 Screw Socket M10 X 45Screw Socket M10 X 45
-
57234001410 Flat Washer 10 mmFlat Washer 10 mm
-
58570063600 Wheel CapWheel Cap
-
59503190434 Labyrinth SealLabyrinth Seal
