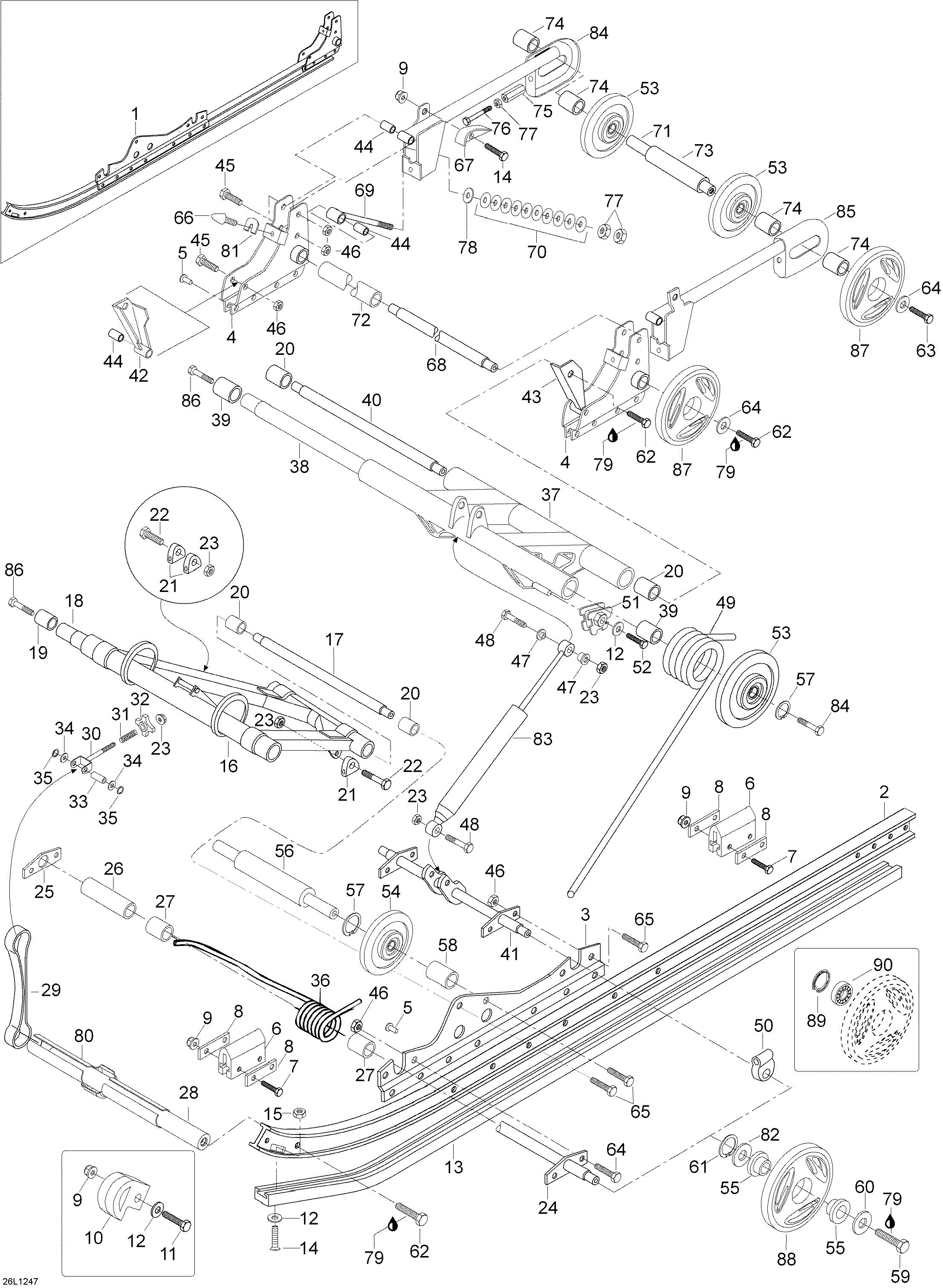

08- Rear Suspension для BRP Lynx YETI Pro Army V-800 - 2012
-
№АртикулНазвание
-
15142866 R.H. Runner ass'y. Includes 1 to 5R.H. Runner ass'y. Includes 1 to 5
-
15142865 L.H. Runner ass'y. Includes 1 to 5L.H. Runner ass'y. Includes 1 to 5
-
25142864 RunnerRunner
-
35344811 R.H. SupportR.H. Support
-
35344810 L.H. SupportL.H. Support
-
4539673 R.H. SupportR.H. Support
-
4539672 L.H. SupportL.H. Support
-
5544212 RivetRivet
-
6570023100 Rubber StopperRubber Stopper
-
740002 Hex. screw M6 x 40Hex. screw M6 x 40
-
8548387 PlatePlate
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10605348954 Runner ProtectorRunner Protector
-
1140031 Hex. screw M6 x 25Hex. screw M6 x 25
-
1220003 Washer A6,4Washer A6,4
-
13549582 Shoe runnerShoe runner
-
1440030 Hex. screw M6 x 20Hex. screw M6 x 20
-
1533010 Elastic stop nut M6Elastic stop nut M6
-
16605254837 Front ArmFront Arm
-
17549695 AxleAxle
-
18542794 AxleAxle
-
19541528 SleeveSleeve
-
20542770 SleeveSleeve
-
21548799 Spring supportSpring support
-
2240014 Hex. screw M10 x 40Hex. screw M10 x 40
-
2333012 Elastic stop nut M10Elastic stop nut M10
-
24539653 AxleAxle
-
25548469 Support plateSupport plate
-
265440313 SleeveSleeve
-
27548841 SleeveSleeve
-
28549718 Cross shaftCross shaft
-
29605454841 Stopper StrapStopper Strap
-
305441643 Eye bolt adjusterEye bolt adjuster
-
31414460600 SpringSpring
-
32572034000 Adjuster KnobAdjuster Knob
-
335441645 PinPin
-
3420005 Washer A10,5Washer A10,5
-
3541035 CirclipCirclip
-
36605354840 RH Front Arm SpringRH Front Arm Spring
-
36605354839 LH Spring Front ArmLH Spring Front Arm
-
375348213 Rear arm weldedRear arm welded
-
385347731 Rear cross shaftRear cross shaft
-
3931023 Slide BearingSlide Bearing
-
40549656 ShaftShaft
-
41539655 ShaftShaft
-
425440350 Lever, R.H.Lever, R.H.
-
435440349 Lever, L.H.Lever, L.H.
-
44545758 SleeveSleeve
-
45207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
46232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
47544417 CushionCushion
-
4840017 Hex. screw M10 x 50Hex. screw M10 x 50
-
495342228 R.H. SpringR.H. Spring
-
495342229 L.H. SpringL.H. Spring
-
505442112 Spring supportSpring support
-
51572030800 LH Adjust CamLH Adjust Cam
-
51572030900 RH Adjust CamRH Adjust Cam
-
5240114 Hex. screw M6 x 10Hex. screw M6 x 10
-
53503189478 Thin Wheel 165Thin Wheel 165
-
54503191029 Wheel 135Wheel 135
-
55503189534 CushionCushion
-
56549680 Shaft SupportShaft Support
-
5731001 CirclipCirclip
-
58546577 SleeveSleeve
-
5940336 Hex. screw M8 x 20Hex. screw M8 x 20
-
60503183100 WasherWasher
-
61293370056 Circlip 20X1.75 DIN471Circlip 20X1.75 DIN471
-
6240335 Hex. screw M10 x 30Hex. screw M10 x 30
-
6340050 Hex. screw with cap M10 x 35Hex. screw with cap M10 x 35
-
64503183300 WasherWasher
-
6540035 Hex. screw M8 x 16Hex. screw M8 x 16
-
66535455 Rubber stopperRubber stopper
-
67548262 ProtectorProtector
-
68541816 ShaftShaft
-
695440377 Bolt-eye adjusterBolt-eye adjuster
-
7025004 PlatePlate
-
715341979 ShaftShaft
-
72541815 SleeveSleeve
-
735441980 SleeveSleeve
-
745440422 SleeveSleeve
-
75605633002 SpacerSpacer
-
7640239 Hex. screw M10 x 100Hex. screw M10 x 100
-
7733004 Nut M10Nut M10
-
7820011 Washer A10,5Washer A10,5
-
79293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
80605355263 Retainer StrapRetainer Strap
-
815440645 Shim plateShim plate
-
8231091 ShimShim
-
83503189997 ShockShock
-
84605252505 Extension Weldeld RHExtension Weldeld RH
-
85605252504 Extension Weldeld LHExtension Weldeld LH
-
8640314 Hex. screw M10 x 30Hex. screw M10 x 30
-
87503190856 Wheel 165 mmWheel 165 mm
-
88503190797 Wheel 135Wheel 135
-
8931002 CirclipCirclip
-
90293350055 Ball BearingBall Bearing
