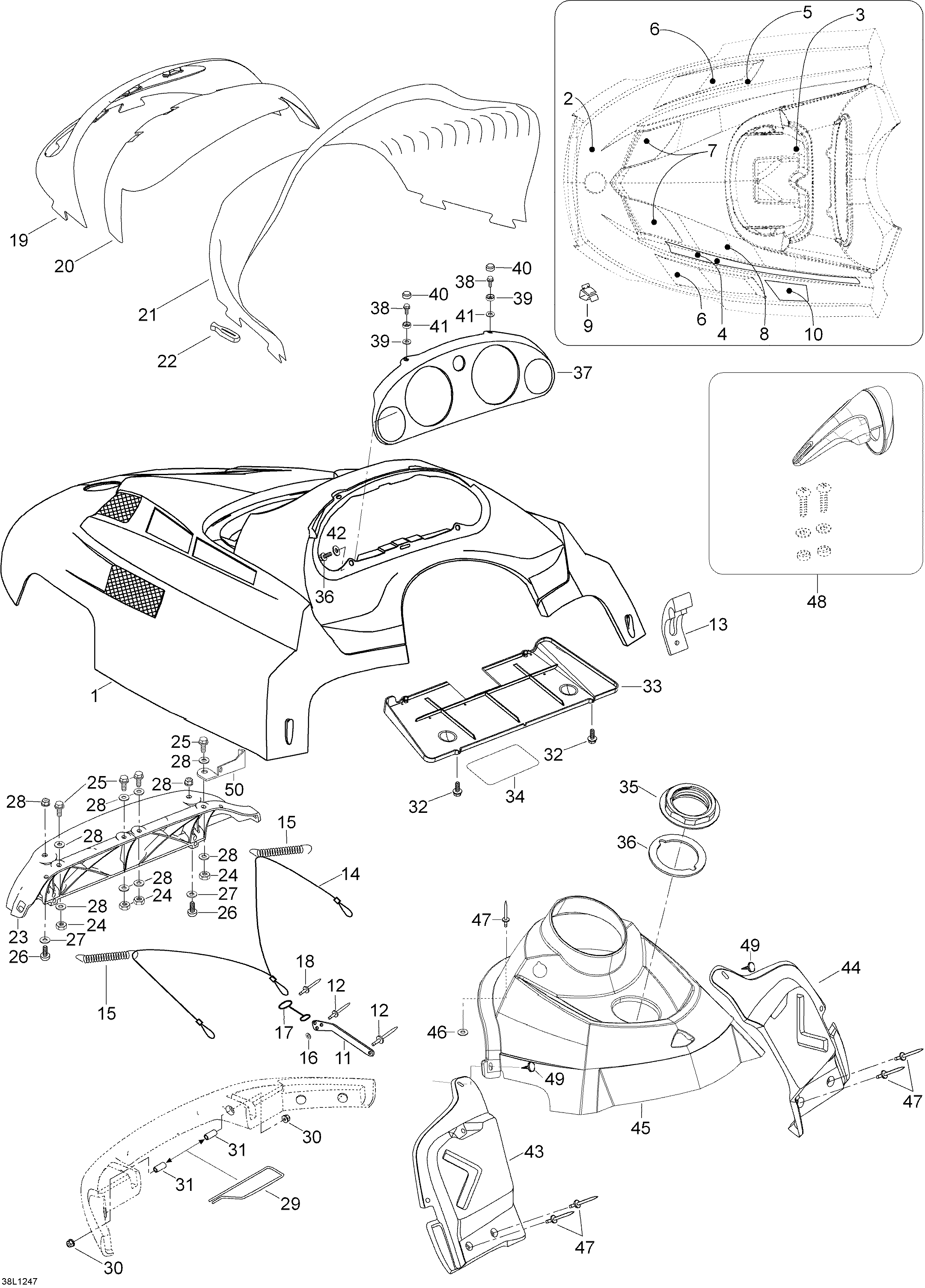

09- Hood And Console для BRP Lynx YETI Pro Army V-800 - 2012
-
№АртикулНазвание
-
1605155487 Hood. pre ass'y, Glossy white. Includes 1 to 12Hood. pre ass'y, Glossy white. Includes 1 to 12
-
2605350919 Heat ProtectorHeat Protector
-
3605350920 Heat ProtectorHeat Protector
-
4605350921 Heat ShieldHeat Shield
-
544001 Heat protectorHeat protector
-
6605350923 LH Upper GrillLH Upper Grill
-
6605350924 RH Upper GrillRH Upper Grill
-
7605350925 LH Lower GrillLH Lower Grill
-
7605350926 RH Lower GrillRH Lower Grill
-
8605350927 LH GrillLH Grill
-
9414227300 ClipClip
-
10605350929 Heat ShieldHeat Shield
-
11605452657 BracketBracket
-
1236002 RivetRivet
-
13517302152 Hood LatchHood Latch
-
14605351372 Retainer CableRetainer Cable
-
155442675 SpringSpring
-
1620001 Washer A4,3Washer A4,3
-
175442870 Retainer cable clipRetainer cable clip
-
1836097 RivetRivet
-
19517302158 Headlamp Moulding, Deep BlackHeadlamp Moulding, Deep Black
-
20517302003 Windshield SupportWindshield Support
-
21605152073 WindshieldWindshield
-
22570023800 Windshield LatchWindshield Latch
-
23517302631 HingeHinge
-
2433010 Elastic stop nut M6Elastic stop nut M6
-
2540030 Hex. screw screw M6 x 20Hex. screw screw M6 x 20
-
2640381 Socket head screw M6 x 20Socket head screw M6 x 20
-
2720117 Washer 6mmWasher 6mm
-
28234062410 Flat Washer 6 mmFlat Washer 6 mm
-
29605454779 PinPin
-
30233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
31605454780 BushingBushing
-
32243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
33605151831 Air Intake PlateAir Intake Plate
-
3444001 Heat protectorHeat protector
-
35517302043 Console NutConsole Nut
-
365447116 GasketGasket
-
37605354134 Indicator SupportIndicator Support
-
3840611 Screw, Plastofast 4 x 10Screw, Plastofast 4 x 10
-
39414436800 Retainer CapRetainer Cap
-
40414436900 Snap Cap, BlackSnap Cap, Black
-
4120037 Washer A4,3Washer A4,3
-
4220039 Washer 4mmWasher 4mm
-
43605251384 LH ConsoleLH Console
-
44605251385 RH ConsoleRH Console
-
45605251387 Console, MiddleConsole, Middle
-
4620008 Washer 5,3 mmWasher 5,3 mm
-
4736037 RivetRivet
-
48517303955 Mirror Kit. Includes 48 to 50Mirror Kit. Includes 48 to 50
-
49414644300 DartDart
-
50605351463 LH Hood SupportLH Hood Support
-
50605351464 RH Hood SupportRH Hood Support
