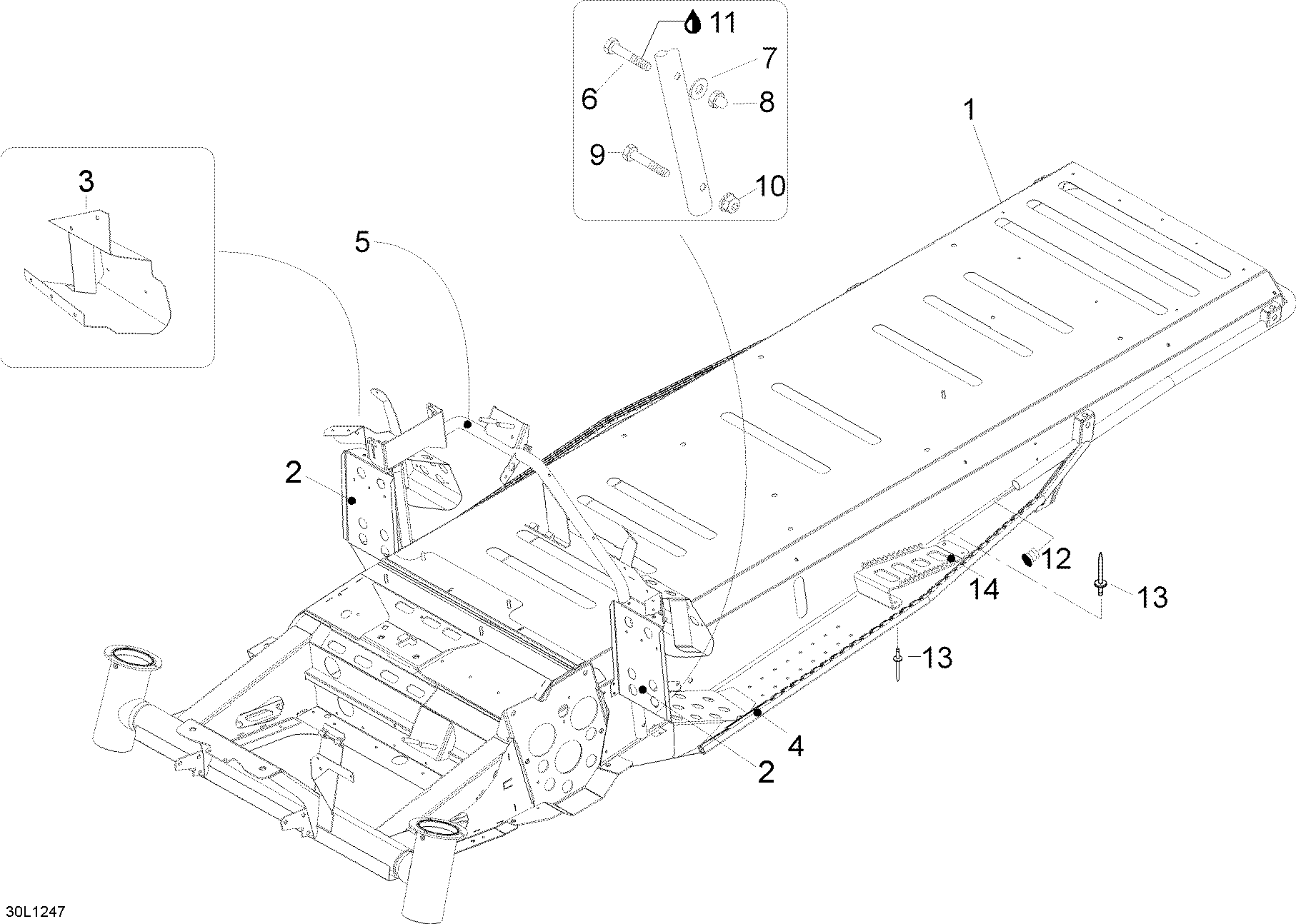

09- Frame для BRP Lynx YETI Pro Army V-800 - 2012
-
№АртикулНазвание
-
1605155168 Frame ass'y PRO ARMY. Includes 1 to 5Frame ass'y PRO ARMY. Includes 1 to 5
-
2605153502 R.H. FootrestR.H. Footrest
-
2605153503 L.H. FootrestL.H. Footrest
-
3605253504 RH Toe RestRH Toe Rest
-
3605253505 LH Toe RestLH Toe Rest
-
4605253507 LH ReinforcementLH Reinforcement
-
4605253506 RH ReinforcementRH Reinforcement
-
5605153465 Bar SupportBar Support
-
640003 Hex. screw M6 x 35Hex. screw M6 x 35
-
720003 Washer A6,4Washer A6,4
-
833051 Nut M6Nut M6
-
940002 Hex. screw M6 x 40Hex. screw M6 x 40
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
1228210 PlugPlug
-
1336489 RivetRivet
-
14605355909 Footrest passangerFootrest passanger
