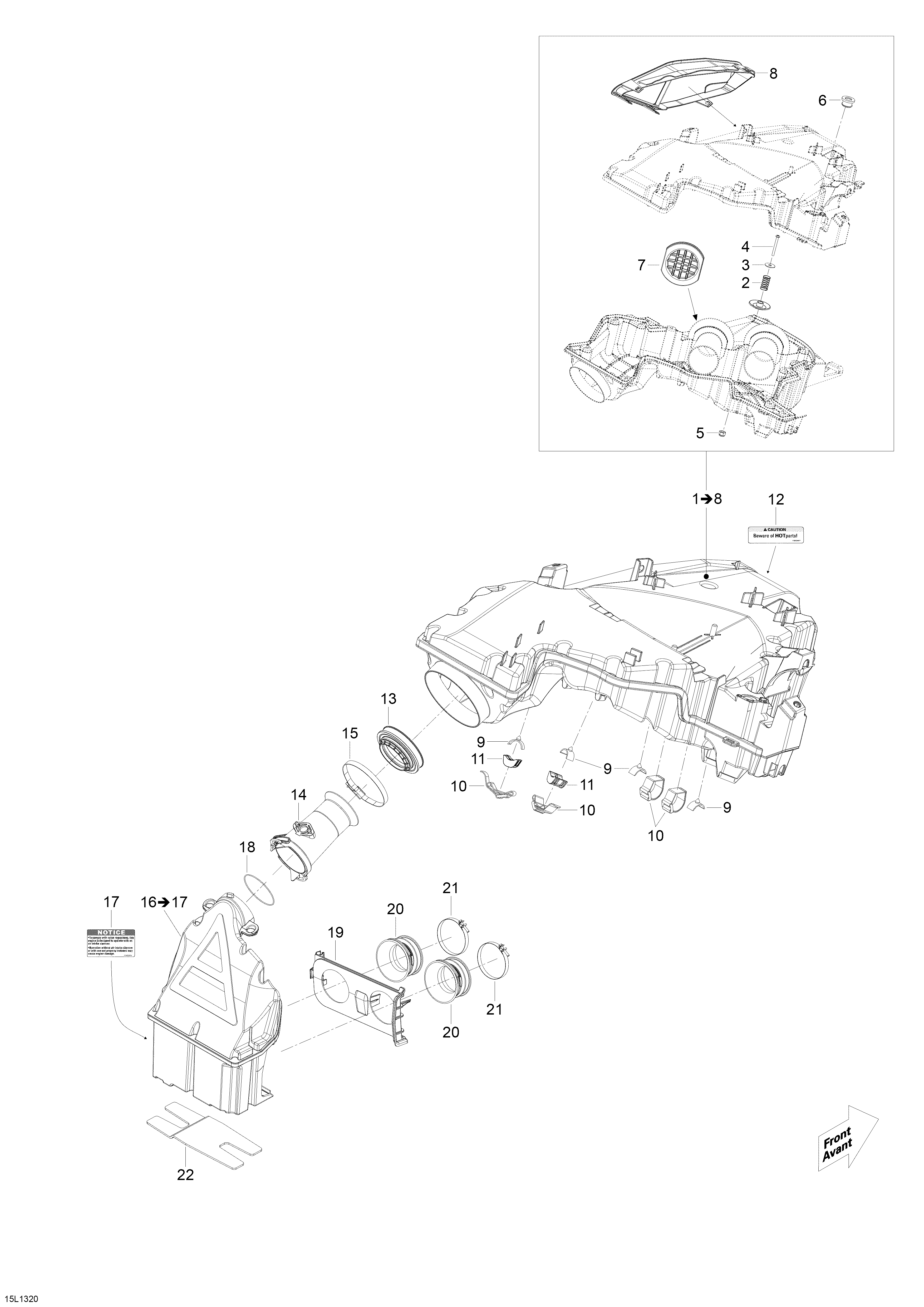

02- Air Intake System для BRP Lynx 49 Ranger 600 E-TEC - 2013
-
№АртикулНазвание
-
1508000625 Secondary Chamber Ass'y. Includes 1 To 8Secondary Chamber Ass'y. Includes 1 To 8
-
2508000576 SpringSpring
-
3224060201 Flat WasherFlat Washer
-
4205444086 Socket Head Screw M4 x 40Socket Head Screw M4 x 40
-
5232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
6508000574 GrommetGrommet
-
7508000590 CapCap
-
8508000568 Air FilterAir Filter
-
9508000537 StopperStopper
-
10508000532 Strip VelcroStrip Velcro
-
11508000572 BumperBumper
-
12516004651 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
13508000567 Intake AdaptorIntake Adaptor
-
14508000662 FluteFlute
-
15514052924 Gear ClampGear Clamp
-
16508000660 Primary Chamber Ass'y. Includes 16 To 17Primary Chamber Ass'y. Includes 16 To 17
-
17516005876 Instr. Label, Air IntakeInstr. Label, Air Intake
-
18293300140 O-RingO-Ring
-
19508000613 Adapter PlateAdapter Plate
-
20508000614 Air Intake AdapterAir Intake Adapter
-
21508000346 ClampClamp
-
22508000739 Insulated FoamInsulated Foam
