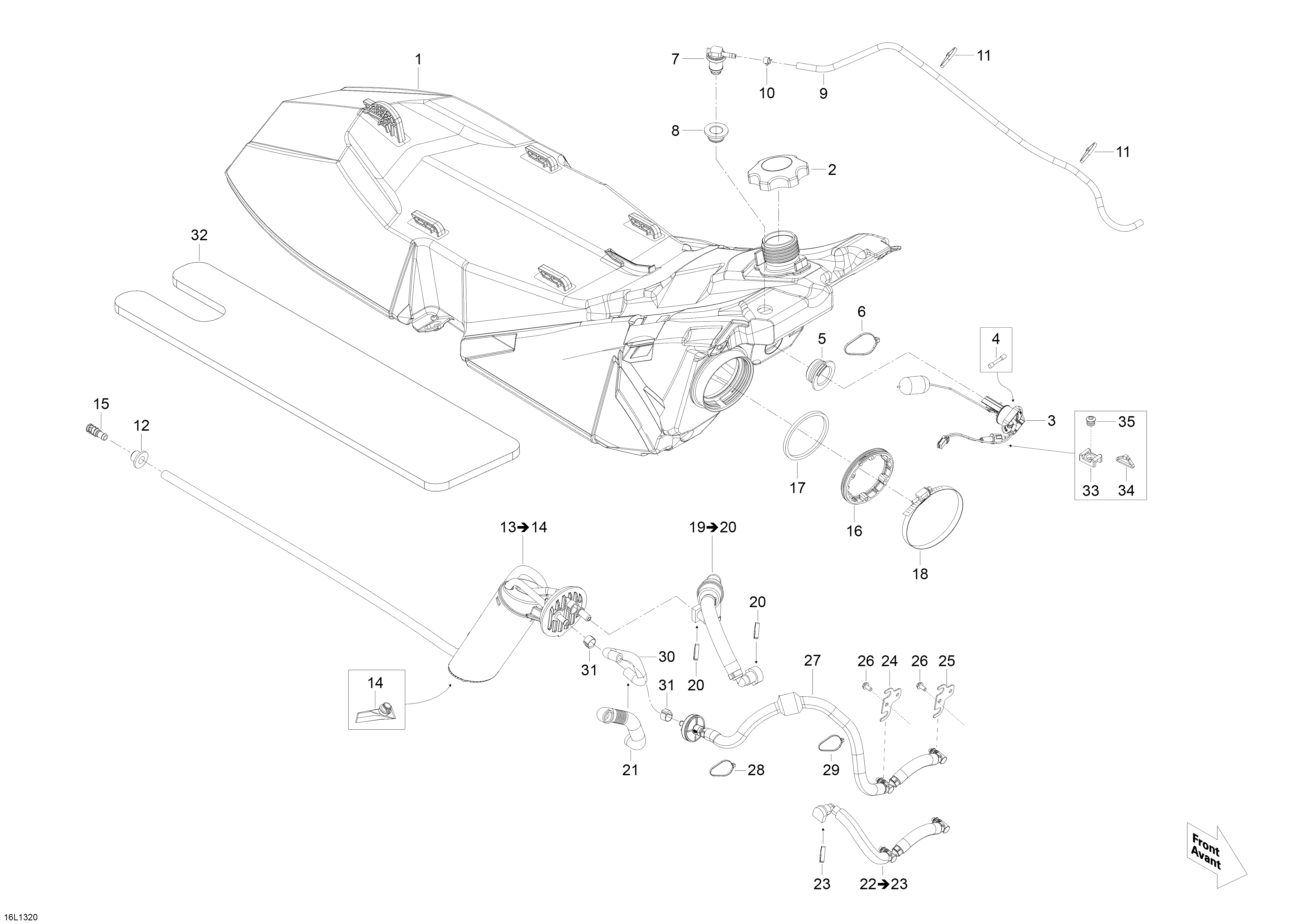

02- Fuel System для BRP Lynx 49 Ranger 600 E-TEC - 2013
-
№АртикулНазвание
-
1513033700 Fuel TankFuel Tank
-
2513033025 CapCap
-
3513033642 Fuel SensorFuel Sensor
-
4710001995 Fuse 0.5AFuse 0.5A
-
5513033606 GrommetGrommet
-
6293750008 Tie Rap 368mmTie Rap 368mm
-
7513033188 Check ValveCheck Valve
-
8513033596 GrommetGrommet
-
9415080200 Polyurethane HosePolyurethane Hose
-
10414554800 Spring ClampSpring Clamp
-
11414115200 Tie-Rap 180mmTie-Rap 180mm
-
1228037 GrommetGrommet
-
13513033643 Fuel Pump. Includes 13 To 14Fuel Pump. Includes 13 To 14
-
14415129451 Fuel Filter, PumpFuel Filter, Pump
-
15414872100 Fuel Filter, HoseFuel Filter, Hose
-
16513033180 RingRing
-
17513033334 GasketGasket
-
18270000892 ClampClamp
-
19513033560 Fuel Hose Ass'y. Includes 19 To 20Fuel Hose Ass'y. Includes 19 To 20
-
20513033135 Locking ClipLocking Clip
-
21415080000 Tubing 16mmTubing 16mm
-
22513033594 Hose Ass'y. Includes 22 To 23Hose Ass'y. Includes 22 To 23
-
23513033135 Locking ClipLocking Clip
-
24513033542 Bracket RHBracket RH
-
25513033593 Bracket LHBracket LH
-
26207551044 Flanged Hex. Screw M5 x 10Flanged Hex. Screw M5 x 10
-
27513033595 Hose Ass'yHose Ass'y
-
28414115200 Tie Rap 180mmTie Rap 180mm
-
29414115200 Tie Rap 180mmTie Rap 180mm
-
30513033544 HoseHose
-
31293650047 ClampClamp
-
32513033588 Insulating FoamInsulating Foam
-
33515176795 Tie Rap MountTie Rap Mount
-
34293750002 Tie Rap 142mmTie Rap 142mm
-
35390402000 Rivet 3/16''Rivet 3/16''
