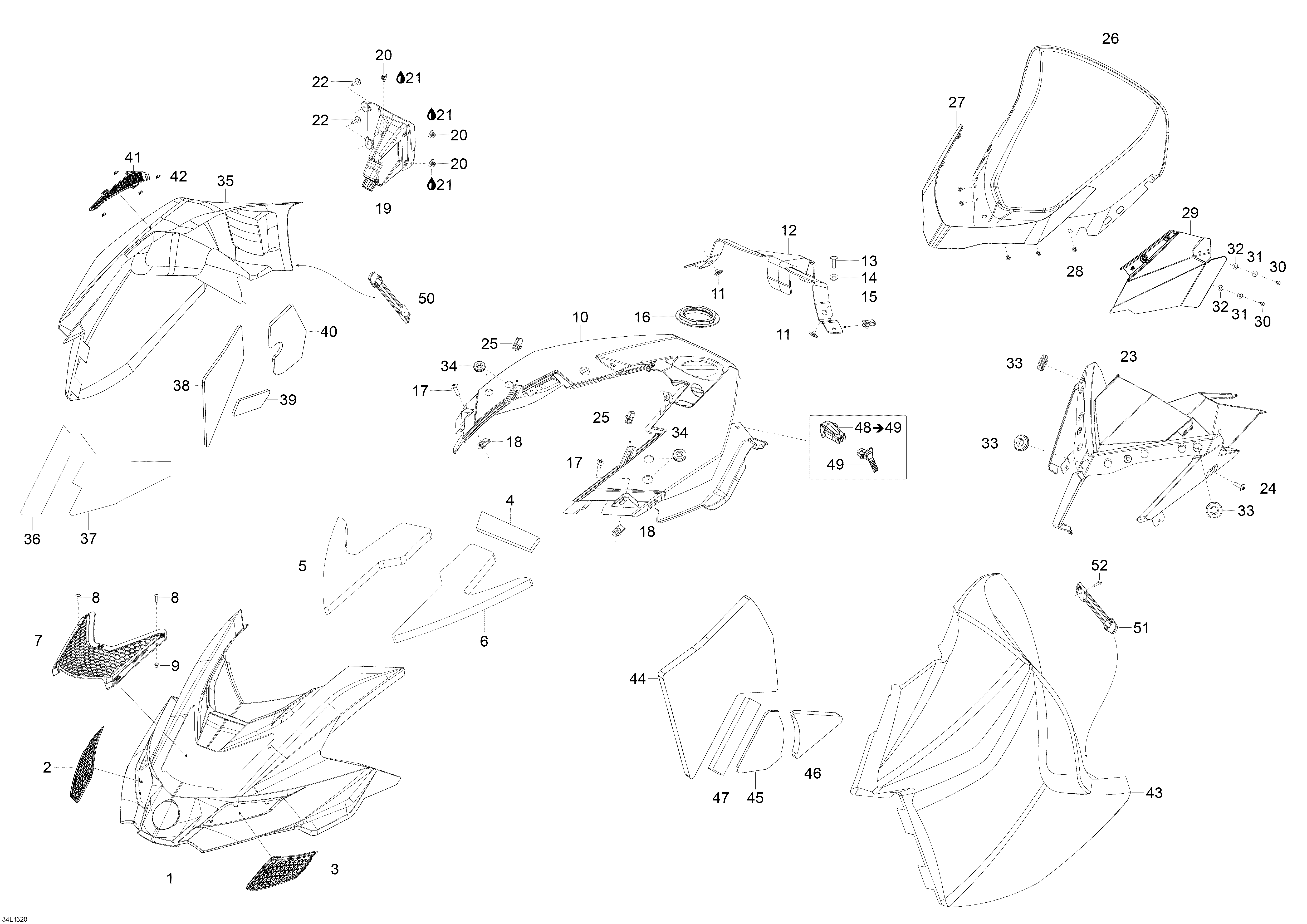

09- Hood для BRP Lynx 49 Ranger 600 E-TEC - 2013
-
№АртикулНазвание
-
1517304853 HoodHood
-
2517304141 Hood Grill RHHood Grill RH
-
3517304008 Hood Grill LHHood Grill LH
-
4517304845 FoamFoam
-
5517304846 FoamFoam
-
6517304847 FoamFoam
-
7517304843 Hood GrillHood Grill
-
8732600030 Forming ScrewForming Screw
-
9233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
10517304647 ConsoleConsole
-
11605452114 Rubber PlugRubber Plug
-
12517305363 Console Support, BlackConsole Support, Black
-
13250000130 Torx Truss M5 x 20Torx Truss M5 x 20
-
14517124300 WasherWasher
-
15250000079 Extruded Panel Nut M5Extruded Panel Nut M5
-
16517304518 Console NutConsole Nut
-
17250000128 Torx Truss M5 x 20Torx Truss M5 x 20
-
18250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
19517304322 Console RHConsole RH
-
20275500241 CapCap
-
21619600020 Loctite 480, 20gLoctite 480, 20g
-
22250000113 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
23517304576 Indicator SupportIndicator Support
-
24250000128 Torx Truss M6 x 20Torx Truss M6 x 20
-
25250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
26517304614 WindshieldWindshield
-
27517303607 SupportSupport
-
28732610072 Push NutPush Nut
-
29517305135 Air Deflector RHAir Deflector RH
-
29517305136 Air Deflector LHAir Deflector LH
-
30250000146 Torx Truss K50 x 16Torx Truss K50 x 16
-
31250200025 Washer M5Washer M5
-
32250200024 Rubber Washer M5Rubber Washer M5
-
33517303756 GrommetGrommet
-
34517303756 GrommetGrommet
-
35517304981 Side Panel RHSide Panel RH
-
36517304264 Aluminium FoilAluminium Foil
-
37517304265 Aluminium FoilAluminium Foil
-
38517304220 FoamFoam
-
39517304306 FoamFoam
-
40517304339 FoamFoam
-
41517304007 GrillGrill
-
42517302785 ClipClip
-
43517304990 Side Panel LHSide Panel LH
-
44517304219 FoamFoam
-
45517304305 FoamFoam
-
46517304340 FoamFoam
-
47517305108 FoamFoam
-
48860200239 Latch Ass?y. Includes 48 To 49Latch Ass?y. Includes 48 To 49
-
49517303981 Latch PanelLatch Panel
-
50517304551 Latch PanelLatch Panel
-
51517303808 Latch Panel LHLatch Panel LH
-
52250000128 Torx Truss M6 x 20Torx Truss M6 x 20
