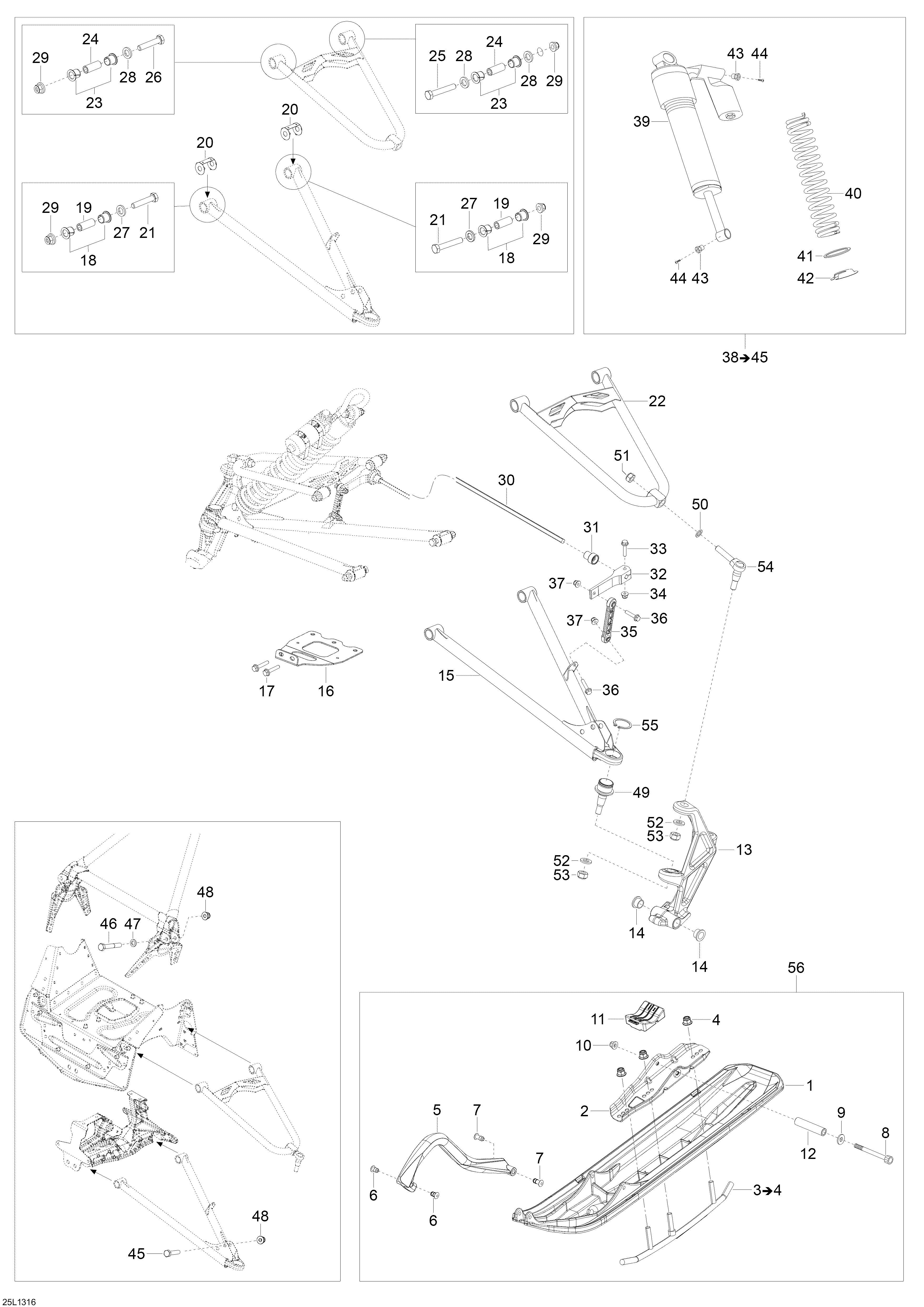

07- Front Suspension And Ski для BRP Lynx Rave RE 800R E-TEC - 2013
-
№АртикулНазвание
-
1505073154 Blade Ski (Black)Blade Ski (Black)
-
2505073240 Ski BridgeSki Bridge
-
3605349378 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5505072976 Handle (Black)Handle (Black)
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Socket HD Screw M10 x 100Socket HD Screw M10 x 100
-
9732900049 WasherWasher
-
10233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
11505073309 Rubber DamperRubber Damper
-
12506133300 SpacerSpacer
-
13505072957 Ski Leg LHSki Leg LH
-
13505072958 Ski Leg RHSki Leg RH
-
14505072690 CushionCushion
-
15505072664 Lower Arm RHLower Arm RH
-
15505072665 Lower Arm LHLower Arm LH
-
16505072584 Lower Reinforcement PlateLower Reinforcement Plate
-
17207182044 Hex. Cap Screw M8 x 20Hex. Cap Screw M8 x 20
-
18503191766 CushionCushion
-
19505072401 Aluminum BushingAluminum Bushing
-
20505072634 Wear PlateWear Plate
-
21250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
22505072455 Upper ArmUpper Arm
-
23503191555 Swivel BushingSwivel Bushing
-
24505072143 Aluminum BushingAluminum Bushing
-
25250000290 Screw Hex. M10 x 60Screw Hex. M10 x 60
-
26250000289 Screw Hex. M10 x 50Screw Hex. M10 x 50
-
27503189564 WasherWasher
-
28505072392 WasherWasher
-
29250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
30505072444 StabilisatorStabilisator
-
31505072445 BushingBushing
-
32505072446 Stabilisator LeverStabilisator Lever
-
33207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
34233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35505072204 Double Ball Joint LinkDouble Ball Joint Link
-
36207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
39505073299 Front Shock RHFront Shock RH
-
39505073300 Front Shock LHFront Shock LH
-
40505073311 Spring 18 Nm.Spring 18 Nm.
-
41505073150 WasherWasher
-
42503192608 Spring StopperSpring Stopper
-
43505072753 Knob AdjusterKnob Adjuster
-
44205031060 Socket Screw M3 x 10Socket Screw M3 x 10
-
45207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
46207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
47503189564 WasherWasher
-
48233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49505072682 Lower Ball JointLower Ball Joint
-
50503189276 WasherWasher
-
51250100089 Nut M12Nut M12
-
52234021410 Flat WasherFlat Washer
-
53250100089 Nut M12Nut M12
-
54505072257 Upper Ball JointUpper Ball Joint
-
55293370035 CirclipCirclip
-
56860200884 Blade Ski Kit (Blade). Includes 1 To 11Blade Ski Kit (Blade). Includes 1 To 11
