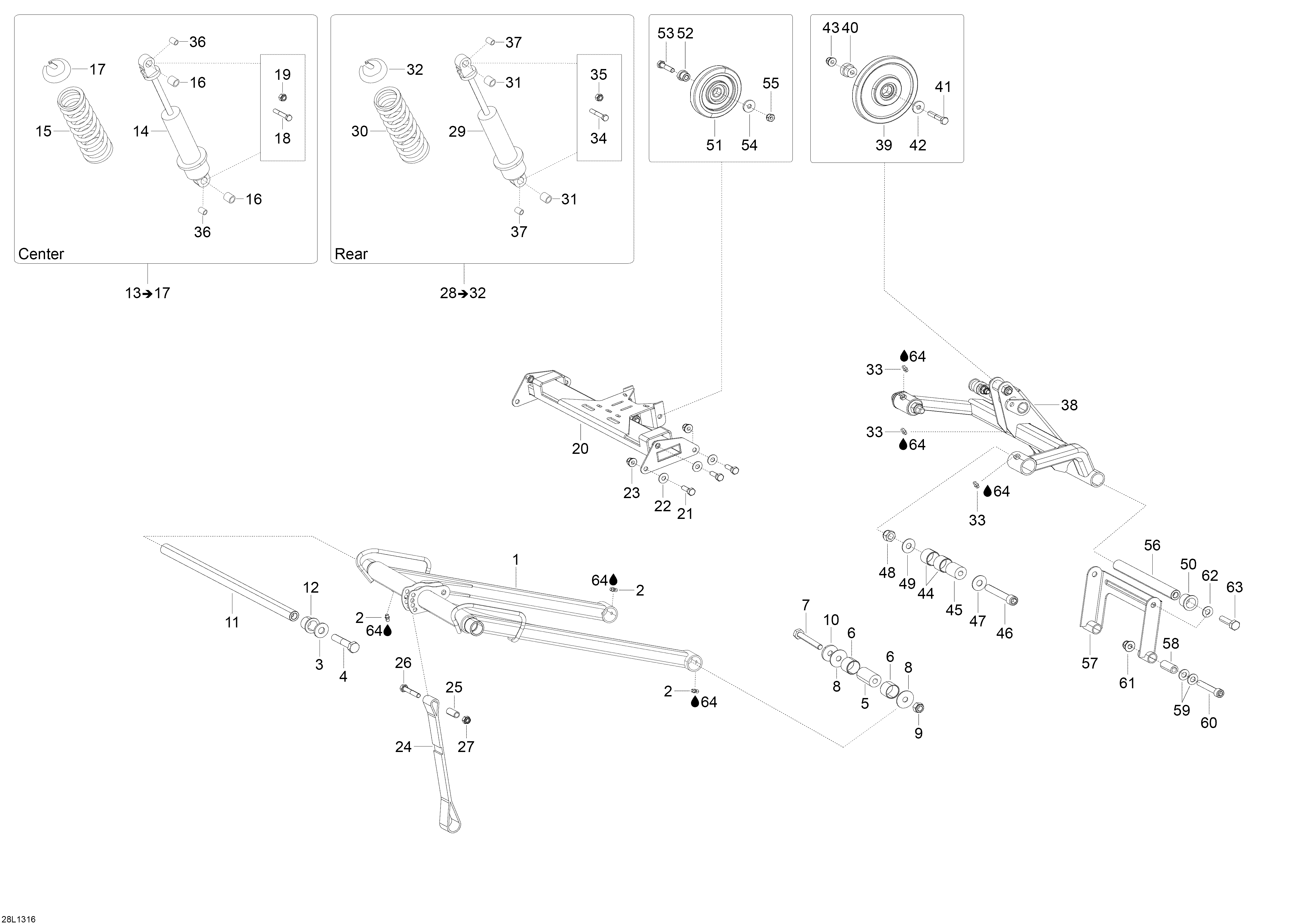

08- Rear Suspension для BRP Lynx Rave RE 800R E-TEC - 2013
-
№АртикулНазвание
-
1503192557 Front ArmFront Arm
-
2408200700 Grease FittingGrease Fitting
-
3250200131 Washer Spring ConicalWasher Spring Conical
-
4250000555 Hex. Cap Screw M12 x 60Hex. Cap Screw M12 x 60
-
5605354157 ShaftShaft
-
631065 BushingBushing
-
7207007044 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
8605355801 WasherWasher
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10503183300 WasherWasher
-
11503192046 ShaftShaft
-
1231024 CushionCushion
-
14503193039 Shock, Front ArmShock, Front Arm
-
15250500011 Spring, Front ArmSpring, Front Arm
-
1631094 Glide BearingGlide Bearing
-
17605354631 Spring LockSpring Lock
-
18207004544 Hex. Screw M10 x 45Hex. Screw M10 x 45
-
19232500416 Nut Stop ElasticNut Stop Elastic
-
20503192566 Middle BeamMiddle Beam
-
21250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
22503193095 WasherWasher
-
23233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
24605355116 Limiter StrapLimiter Strap
-
25605455335 SleeveSleeve
-
26207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
27232581414 Nut Stop Elastic M8Nut Stop Elastic M8
-
29503193041 Shock, Rear ArmShock, Rear Arm
-
30503193513 Spring, Rear ArmSpring, Rear Arm
-
3131094 Glide BearingGlide Bearing
-
32605354631 Spring LockSpring Lock
-
33408200700 Grease FittingGrease Fitting
-
3440134 Allen Screw M10 x 45Allen Screw M10 x 45
-
35232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
365446652 BushingBushing
-
375446652 BushingBushing
-
38503192524 Rear ArmRear Arm
-
39503193644 Idler Wheel 133mmIdler Wheel 133mm
-
40605454461 SleeveSleeve
-
41207084544 Screw M8 x 45Screw M8 x 45
-
4220077 WasherWasher
-
43233281414 Nut M8Nut M8
-
4431065 BushingBushing
-
45605354157 ShaftShaft
-
46250000560 Socket Head Screw M10 x 65Socket Head Screw M10 x 65
-
47503191926 WasherWasher
-
48232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
49605355801 WasherWasher
-
5031024 CushionCushion
-
51572043500 Idler WheelIdler Wheel
-
52503193330 SleeveSleeve
-
53207083544 Screw M8 x 35Screw M8 x 35
-
5420077 WasherWasher
-
55232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
56605355118 ShaftShaft
-
57503192571 Rear SwingRear Swing
-
58503192341 Rear Swing ShaftRear Swing Shaft
-
59234001410 Flat Washer M10Flat Washer M10
-
60205006044 Socket Head Screw M10 x 60Socket Head Screw M10 x 60
-
61233201414 Nut M10Nut M10
-
6220068 Lock WasherLock Washer
-
63207204044 Screw M10 x 40Screw M10 x 40
