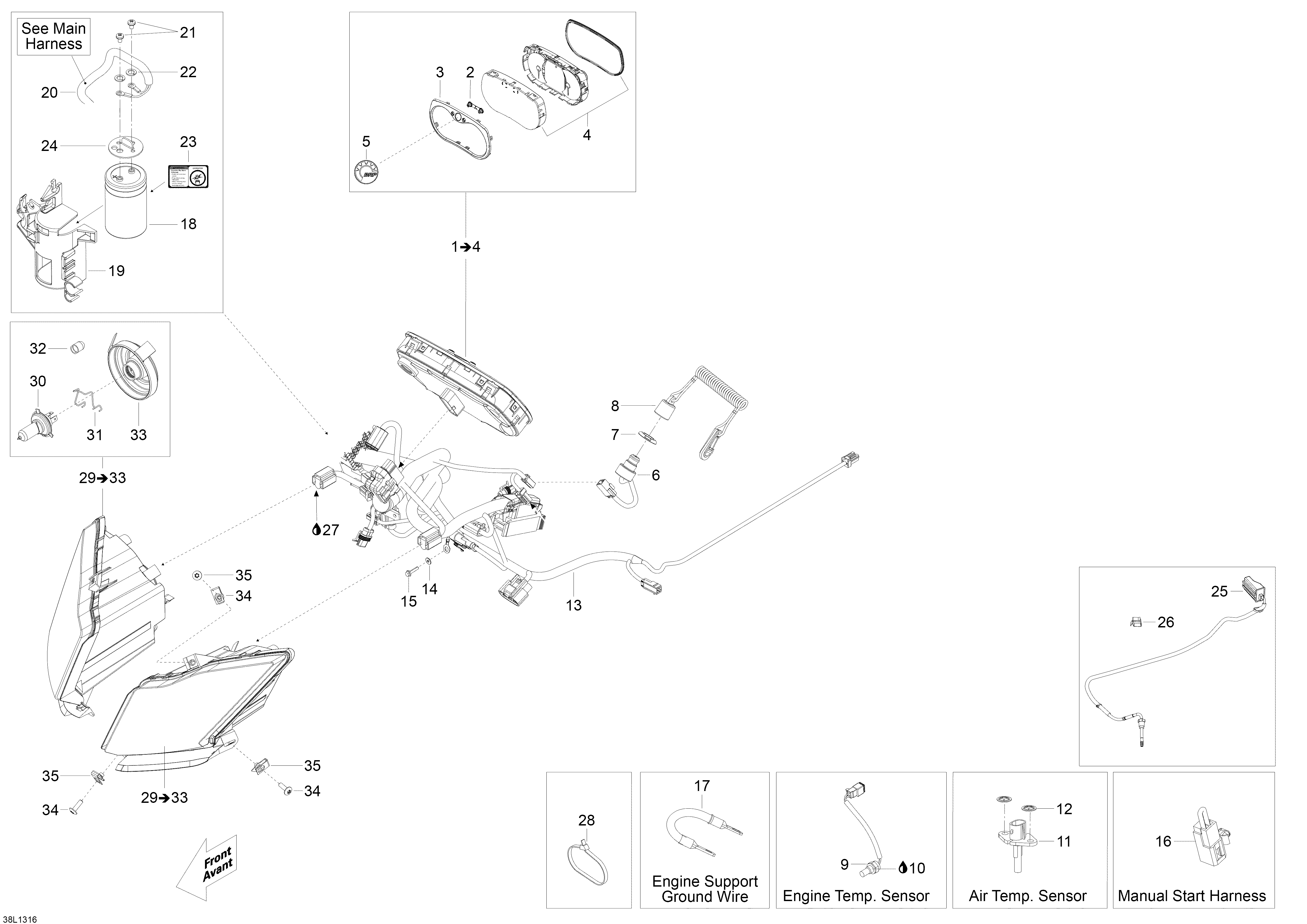

10- Electrical System для BRP Lynx Rave RE 800R E-TEC - 2013
-
№АртикулНазвание
-
1515177470 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 BRP LogoBRP Logo
-
6515177249 Dess SwitchDess Switch
-
7278000508 Safety Switch NutSafety Switch Nut
-
8515177057 DESS CapDESS Cap
-
9515177471 Temperature SensorTemperature Sensor
-
11515176366 Air Temperature SensorAir Temperature Sensor
-
12389804300 Push NutPush Nut
-
13515177098 Main HarnessMain Harness
-
14234141601 Lock Washer M4Lock Washer M4
-
15250000127 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
16515176661 Manual Start HarnessManual Start Harness
-
17515177289 Ground WireGround Wire
-
18515176349 CapacitorCapacitor
-
19515176607 Capacitor SupportCapacitor Support
-
21250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
22250200026 Lock washerLock washer
-
23516005515 Capacitor DecalCapacitor Decal
-
24515177193 CapCap
-
25515177473 ModuleModule
-
26414227300 Spring ClipSpring Clip
-
27619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
28414115200 Tie Rap 180mmTie Rap 180mm
-
28293750008 Tie Rap 350mmTie Rap 350mm
-
28293750001 Tie Rap 94mmTie Rap 94mm
-
29517304194 Headlamp Ass'y RH. Includes 29 To 33Headlamp Ass'y RH. Includes 29 To 33
-
29517304195 Headlamp Ass'y LH. Includes 29 To 33Headlamp Ass'y LH. Includes 29 To 33
-
30515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
32515176141 CapCap
-
33515176499 CoverCover
-
34250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
35250100113 Panel Nut M6Panel Nut M6
