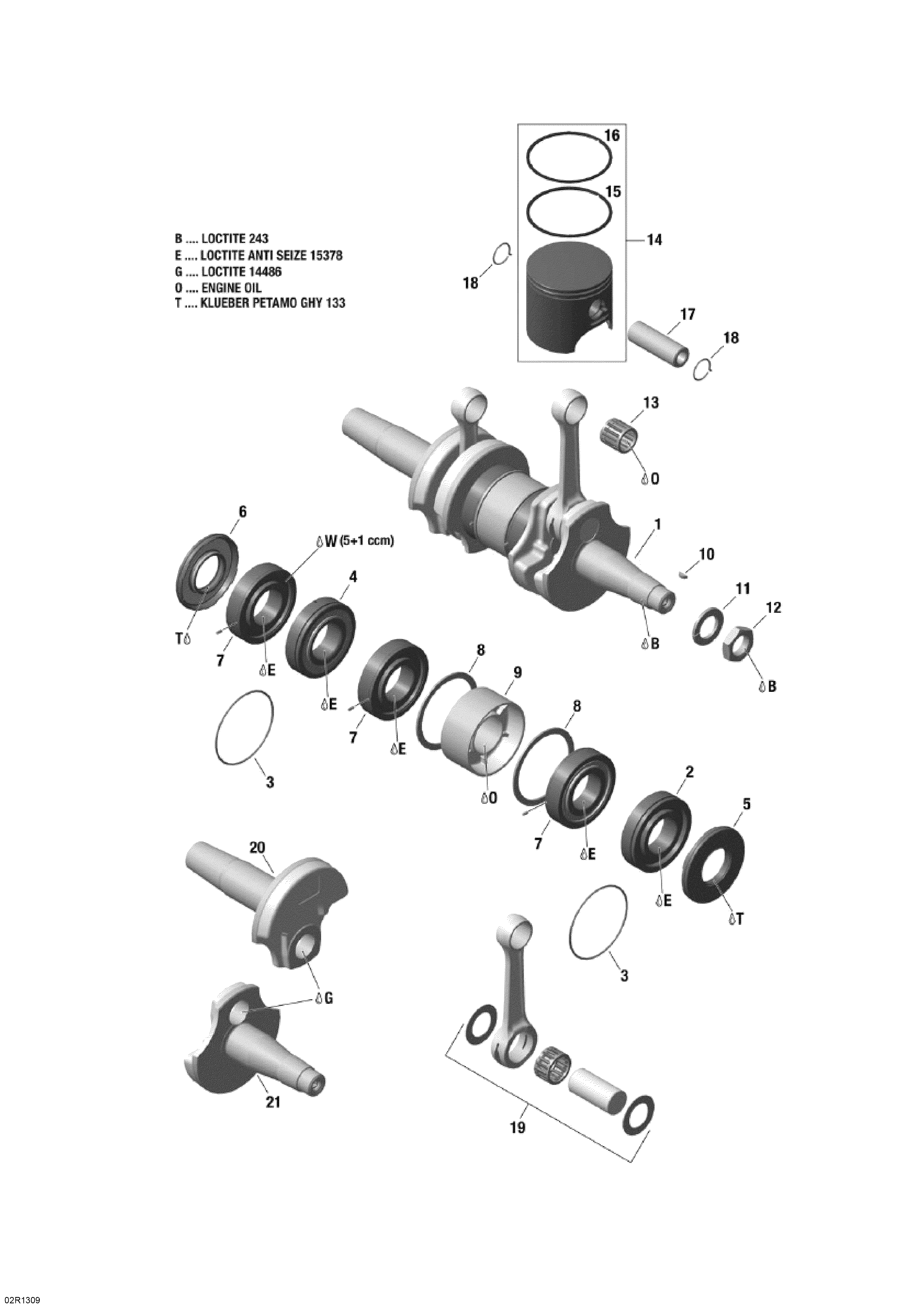

01- Crankshaft для BRP Lynx Xtrim 550 - 2013
-
№АртикулНазвание
-
1420686042 Crankshaft Ass'y. Includes 1 To 8Crankshaft Ass'y. Includes 1 To 8
-
2420832571 Ball BearingBall Bearing
-
3293300022 O Ring (64-2)O Ring (64-2)
-
4420832632 Ball BearingBall Bearing
-
5420831952 Oil SealOil Seal
-
6420831955 Oil SealOil Seal
-
7420832573 Ball BearingBall Bearing
-
8420927710 Retaining DiskRetaining Disk
-
9420850149 Labyrinth SleeveLabyrinth Sleeve
-
10420246055 Woodruff KeyWoodruff Key
-
11420945759 Lock WasherLock Washer
-
12420842239 Nut M22. Tightening Torque 100-110 NmNut M22. Tightening Torque 100-110 Nm
-
13420832445 Piston Pin BearingPiston Pin Bearing
-
14420889050 Piston Ass'y 75.86mm. Includes 14 To 16Piston Ass'y 75.86mm. Includes 14 To 16
-
14420889051 Piston Ass'y 76.11mm. Includes 14 To 16Piston Ass'y 76.11mm. Includes 14 To 16
-
14420889052 Piston Ass'y 76.36mm. Includes 14 To 16Piston Ass'y 76.36mm. Includes 14 To 16
-
15420815300 Rectangular Ring 76.00mmRectangular Ring 76.00mm
-
15420815301 Rectangular Ring 76.25mmRectangular Ring 76.25mm
-
15420815302 Rectangular Ring 76.50mmRectangular Ring 76.50mm
-
16420815155 Semi-Trapez Ring 76.00mmSemi-Trapez Ring 76.00mm
-
16420815156 Semi-Trapez Ring 76.25mmSemi-Trapez Ring 76.25mm
-
16420815157 Semi-Trapez Ring 76.50mmSemi-Trapez Ring 76.50mm
-
17420916407 Piston PinPiston Pin
-
18420845106 Circlip. Included In Gasket KitCirclip. Included In Gasket Kit
-
19420889068 Crankshaft Repair KitCrankshaft Repair Kit
-
20420819181 Crankshaft, PTO SideCrankshaft, PTO Side
-
21420819210 Crankshaft, MAG SideCrankshaft, MAG Side
-
B293800060 Loctite 243, 10mlLoctite 243, 10ml
-
E619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
G619600012 Loctite 648, 50mlLoctite 648, 50ml
-
T619600023 Grease, 400gGrease, 400g
-
W619600026 Isoflex Grease, 400gIsoflex Grease, 400g
