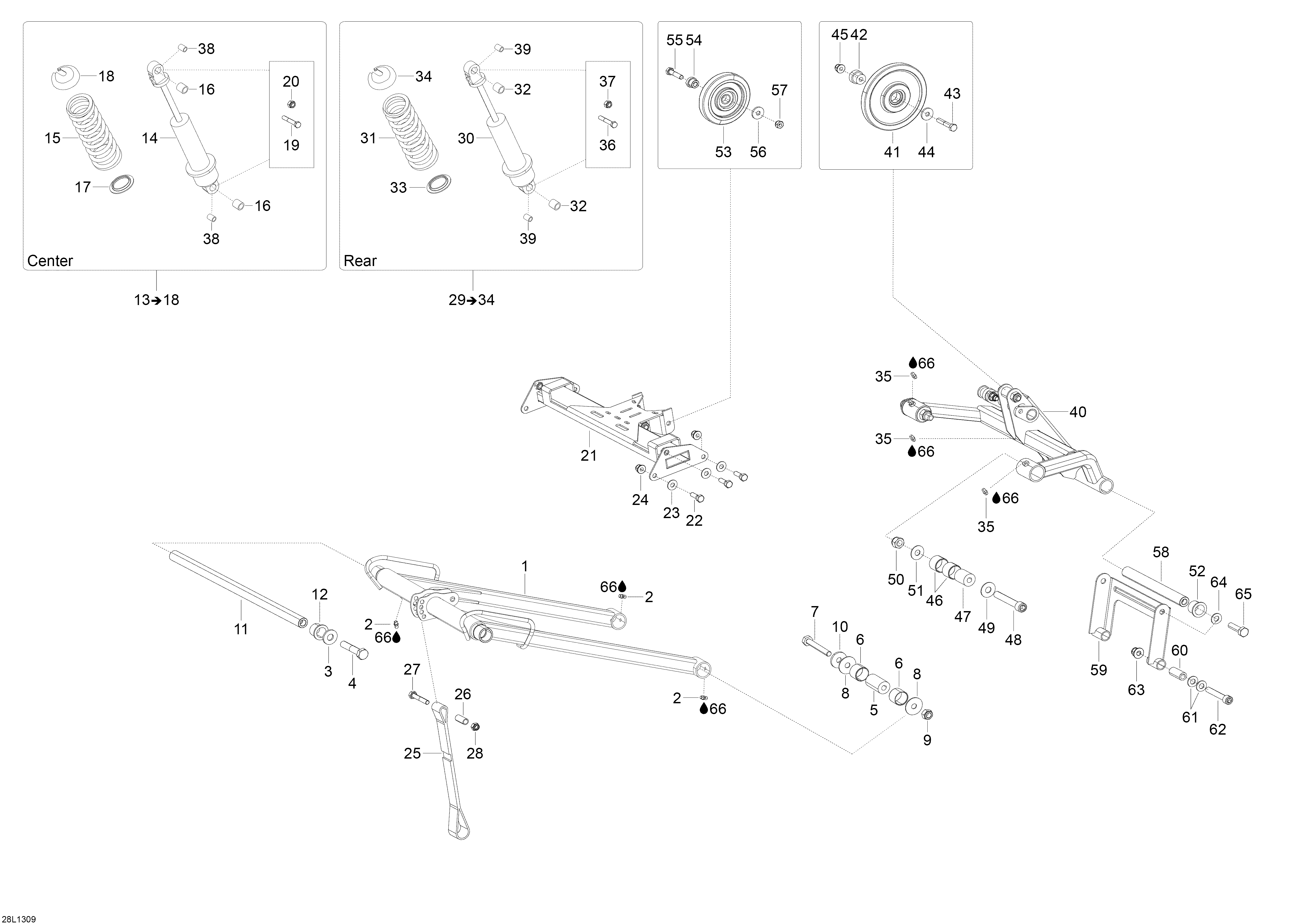

08- Rear Suspension для BRP Lynx Xtrim 550 - 2013
-
№АртикулНазвание
-
1503192557 Front ArmFront Arm
-
2408200700 Grease FittingGrease Fitting
-
3250200131 Washer Spring ConicalWasher Spring Conical
-
4250000555 Hex. Cap Screw M12 x 60Hex. Cap Screw M12 x 60
-
5605354157 ShaftShaft
-
631065 BushingBushing
-
7207007044 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
8605355801 WasherWasher
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10503183300 WasherWasher
-
11503192046 ShaftShaft
-
1231024 CushionCushion
-
14503192389 Shock, Front ArmShock, Front Arm
-
15503192431 Spring, Front ArmSpring, Front Arm
-
1631094 Glide BearingGlide Bearing
-
17230078 Spring SeatSpring Seat
-
18230076 Spring SeatSpring Seat
-
19207004544 Hex. Screw M10 x 45Hex. Screw M10 x 45
-
20232500416 Nut Stop ElasticNut Stop Elastic
-
21503192566 Middle BeamMiddle Beam
-
22250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
23503193095 WasherWasher
-
24233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
25605355116 Limiter StrapLimiter Strap
-
26605455335 SleeveSleeve
-
27207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
28232581414 Nut Stop Elastic M8Nut Stop Elastic M8
-
30503192385 Shock, Rear ArmShock, Rear Arm
-
31503192429 Spring, Rear ArmSpring, Rear Arm
-
3231094 Glide BearingGlide Bearing
-
33230078 Spring SeatSpring Seat
-
34230076 Spring SeatSpring Seat
-
35408200700 Grease FittingGrease Fitting
-
3640134 Allen Screw M10 x 45Allen Screw M10 x 45
-
37232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
385446652 BushingBushing
-
395446652 BushingBushing
-
40503192524 Rear Arm WeldRear Arm Weld
-
41503193644 Idler Wheel 133mmIdler Wheel 133mm
-
42605454461 SleeveSleeve
-
43207084544 Screw M8 x 45Screw M8 x 45
-
4420077 WasherWasher
-
45233281414 Nut M8Nut M8
-
4631065 BushingBushing
-
47605354157 ShaftShaft
-
48250000560 Socket Head Screw M10 x 65Socket Head Screw M10 x 65
-
49503191926 WasherWasher
-
50232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
51605355801 WasherWasher
-
5231024 CushionCushion
-
53572043500 Idler WheelIdler Wheel
-
54503193330 SleeveSleeve
-
55207083544 Screw M8 x 35Screw M8 x 35
-
5620077 WasherWasher
-
57232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
58605355118 ShaftShaft
-
59503192571 Rear SwingRear Swing
-
60503192341 Rear Swing ShaftRear Swing Shaft
-
61234001410 Flat Washer M10Flat Washer M10
-
62205006044 Socket Head Screw M10 x 60Socket Head Screw M10 x 60
-
63233201414 Nut M10Nut M10
-
6420068 Lock WasherLock Washer
-
65207204044 Screw M10 x 40Screw M10 x 40
