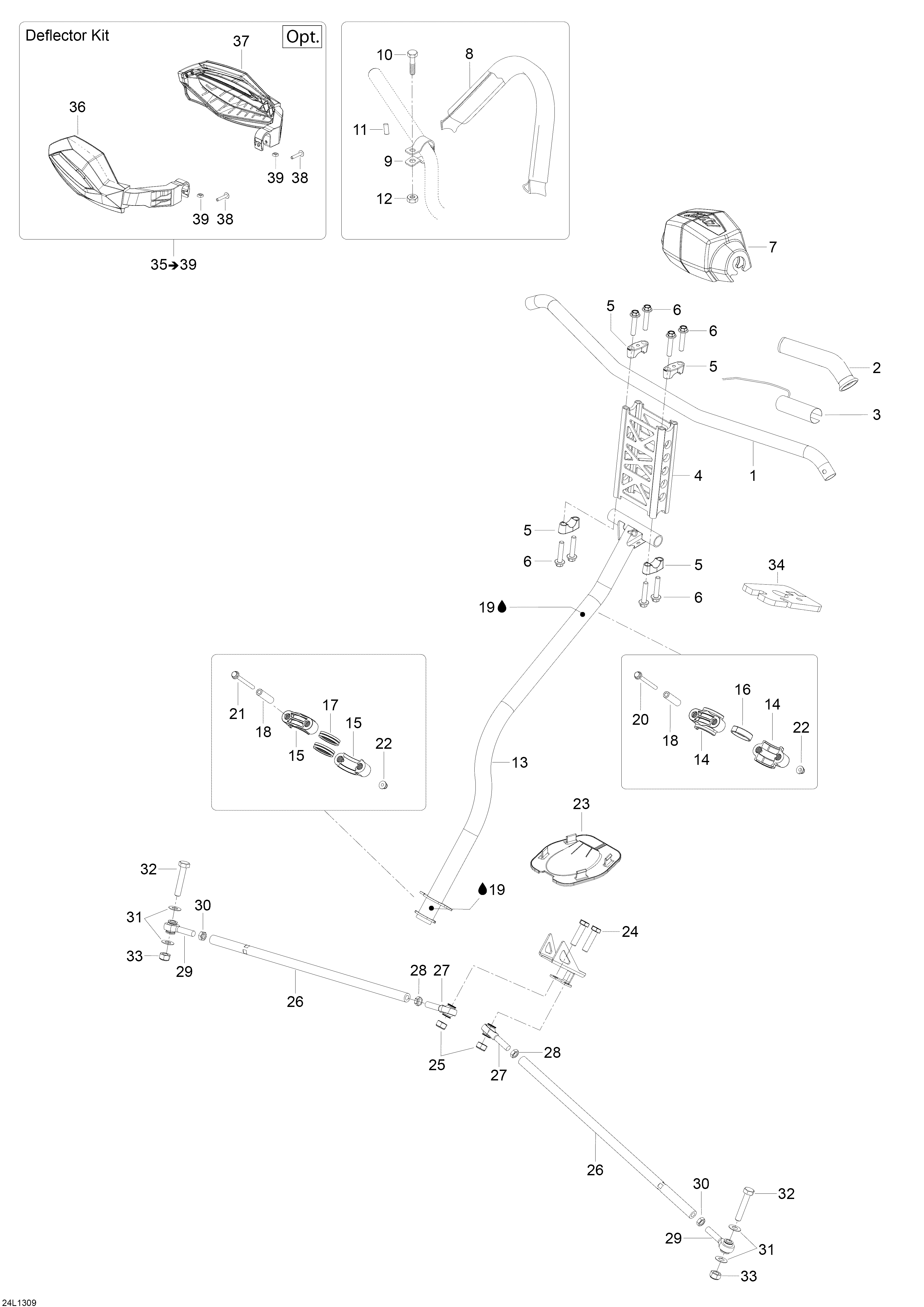

07- Steering System для BRP Lynx Xtrim 550 - 2013
-
№АртикулНазвание
-
1506152399 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152467 Heated FilmHeated Film
-
4506152457 ExtensionExtension
-
5506152395 Steering SupportSteering Support
-
6250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
7506152265 Steering PadSteering Pad
-
8506152115 Strap Ass?yStrap Ass?y
-
9506152536 Support PlateSupport Plate
-
10207662084 Screw M6 x 20Screw M6 x 20
-
11506152156 BushingBushing
-
12233261494 Elastic Flange Nut M6Elastic Flange Nut M6
-
13506152586 Main TubeMain Tube
-
14506152508 Half Housing UpperHalf Housing Upper
-
15506152217 Half Housing LowerHalf Housing Lower
-
16506152509 Vibrat. Gasket UpperVibrat. Gasket Upper
-
17506152518 Vibrat. Gasket LowerVibrat. Gasket Lower
-
18506152297 Housing BushingHousing Bushing
-
20207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
21207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23506152163 PlatePlate
-
24207004044 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
25232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
26506152498 Tie RodTie Rod
-
27506152081 Ball JointBall Joint
-
28250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
29506152019 Ball JointBall Joint
-
30732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
31506152194 WasherWasher
-
32207005544 Hex Screw M10 x 55Hex Screw M10 x 55
-
33232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
34506152521 CushionCushion
-
35517305053 Deflector Kit, White (Opt.). Includes 35 To 39Deflector Kit, White (Opt.). Includes 35 To 39
-
38250000501 Screw M6 x 35Screw M6 x 35
-
39250000498 Square Nut M6Square Nut M6
