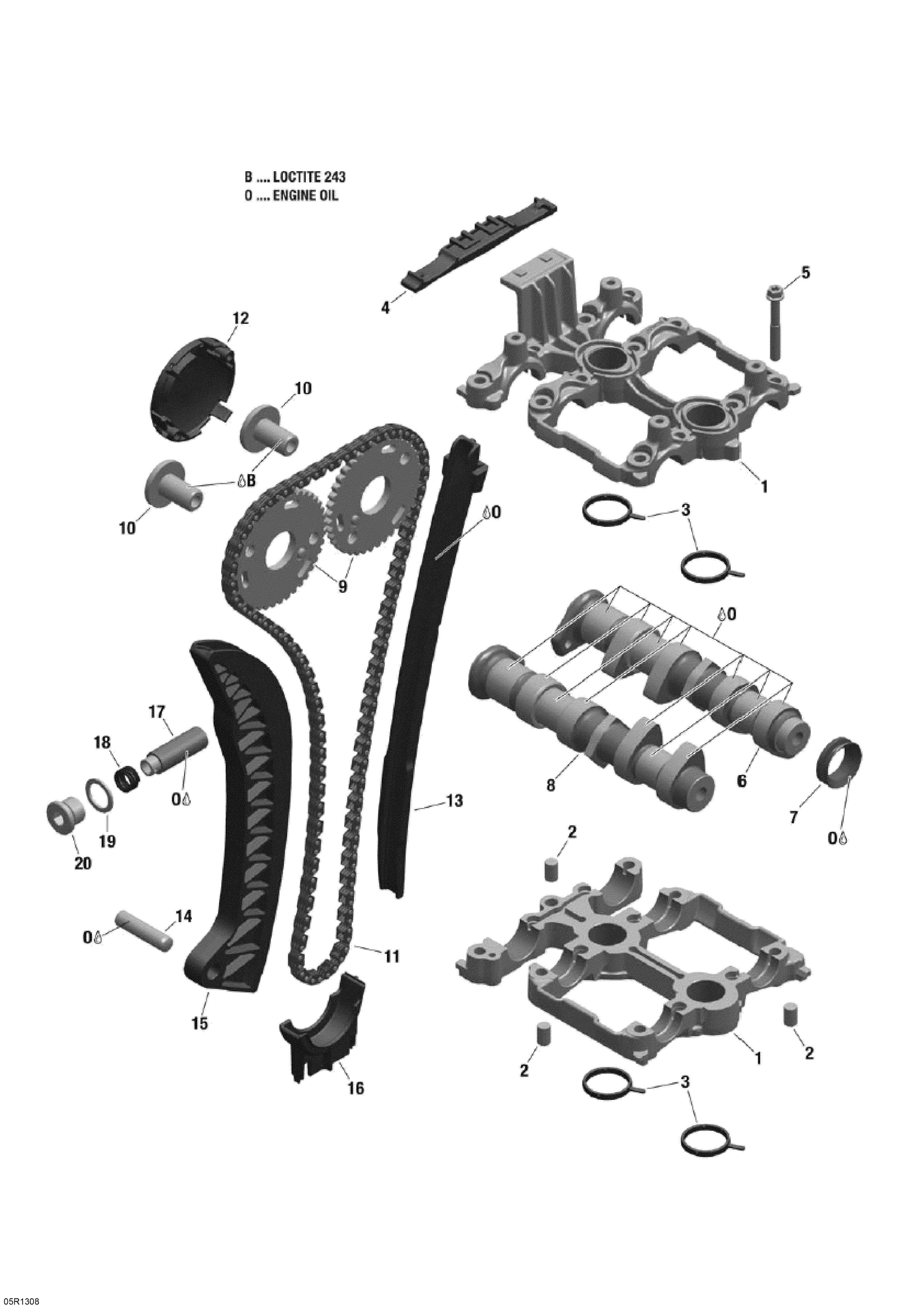

01- Camshafts And Timing Chain для BRP Lynx Xtrim 600 ACE - 2013

№

Артикул

Название
1

420911035 Camshaft Housing Ass'y. Includes 1 To 2

Camshaft Housing Ass'y. Includes 1 To 2

33 440 ₽
2

420632010 Pin 8 x 12

Pin 8 x 12

1 450 ₽
3

420431760 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

1 120 ₽
4

420936500 Chain Guide, Upper

Chain Guide, Upper

710 ₽
5

420440324 Hex./Torx Flange Screw M6 x 45. Tightening Torque 11 Nm +/- 12%

Hex./Torx Flange Screw M6 x 45. Tightening Torque 11 Nm +/- 12%

360 ₽
6

420820111 Camshaft Exhaust

Camshaft Exhaust

14 660 ₽
7

420630127 V-Ring. Included In Gasket Kit

V-Ring. Included In Gasket Kit

1 030 ₽
8

420820101 Camshaft Intake

Camshaft Intake

14 660 ₽
9

420855120 Camshaft Sprocket 40 T

Camshaft Sprocket 40 T

6 690 ₽
10

420441360 Flat Head Screw M14 x 1,5. Tightening Torque 50 Nm +/- 7%

Flat Head Screw M14 x 1,5. Tightening Torque 50 Nm +/- 7%

2 210 ₽
11

420297086 Camshaft Chain

Camshaft Chain

6 900 ₽
12

420460920 Cover

Cover

1 890 ₽
13

420936010 Chain Guide

Chain Guide

3 780 ₽
14

420929937 Needle Pin

Needle Pin

590 ₽
15

420936020 Chain Tension Guide

Chain Tension Guide

4 520 ₽
16

420936510 Chain Guide

Chain Guide

590 ₽
17

420236256 Chain Tensioner Ass' y

Chain Tensioner Ass' y

16 770 ₽
18

420238732 Compression Spring

Compression Spring

1 890 ₽
19

420430622 Sealing Ring. Included In Gasket Kit

Sealing Ring. Included In Gasket Kit

1 540 ₽
20

420840591 Plug Screw M16 x 1,5. Tightening Torque 25 Nm +/- 12%

Plug Screw M16 x 1,5. Tightening Torque 25 Nm +/- 12%

710 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
