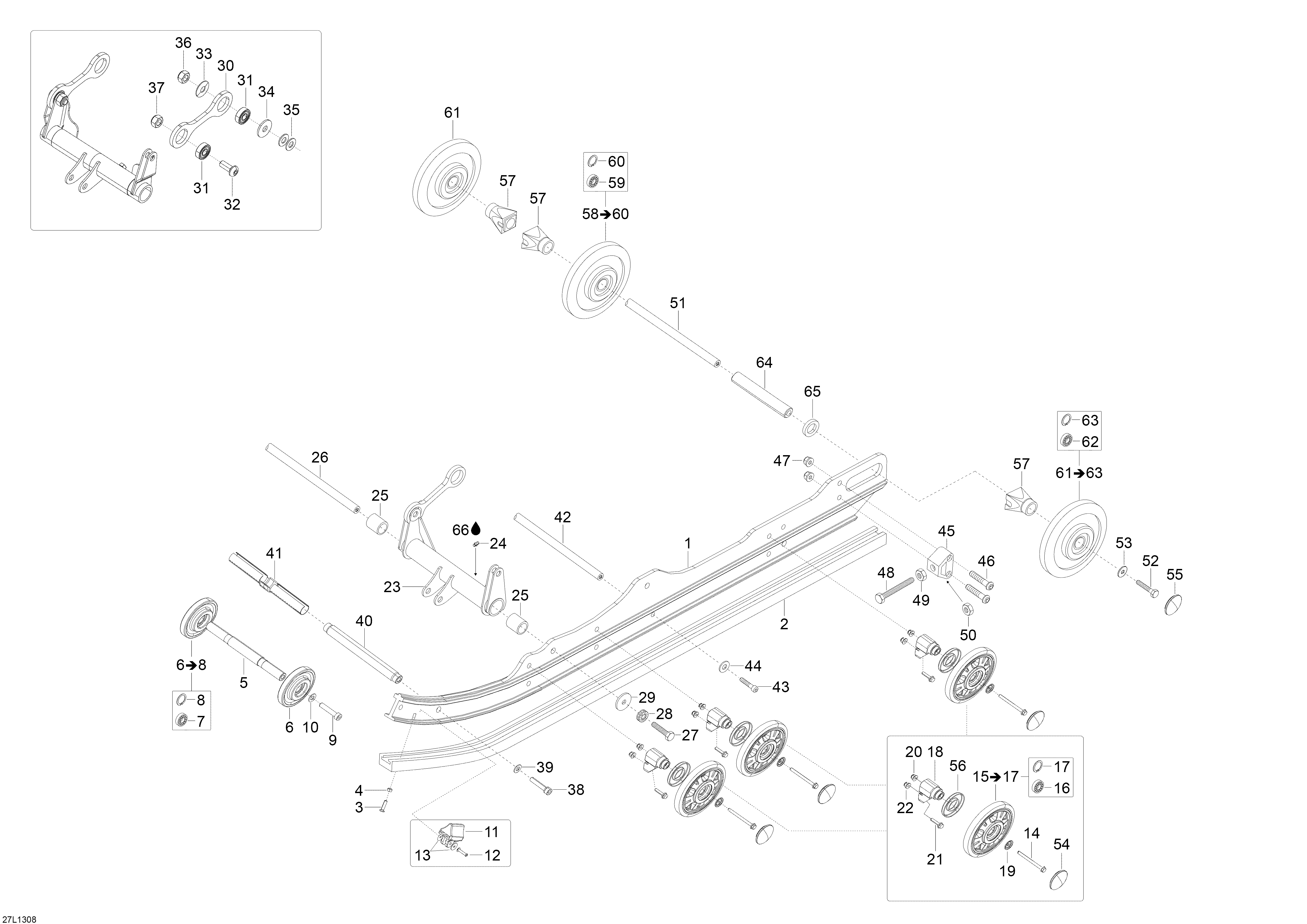

08- Rear Suspension для BRP Lynx Xtrim 600 ACE - 2013
-
№АртикулНазвание
-
1503193169 RunnerRunner
-
2503193170 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100mm. Includes 6 To 8Wheel 100mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket Screw M10 x 45Socket Screw M10 x 45
-
10234001410 Flat Washer M10Flat Washer M10
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16Pop Rivet 3/16
-
13503191273 WasherWasher
-
14250000475 Hex. Screw M6 x 70Hex. Screw M6 x 70
-
15503191942 Wheel 141mm. Includes 15 To 17Wheel 141mm. Includes 15 To 17
-
16503190396 Ball BearingBall Bearing
-
18503193082 SupportSupport
-
19503191820 Cup WasherCup Washer
-
20233261466 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
21250000522 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
22233261466 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23503192518 Swing WeldSwing Weld
-
24408200700 Grease FittingGrease Fitting
-
2531024 CushionCushion
-
26605355800 ShaftShaft
-
27205505547 Screw M10 x 55Screw M10 x 55
-
28512056700 Lock WasherLock Washer
-
2920068 Lock WasherLock Washer
-
30605254159 Connecting RodConnecting Rod
-
31605631003 Ball BearingBall Bearing
-
32205402546 Socket Head Screw M10 x 25Socket Head Screw M10 x 25
-
3325004 Spring CupSpring Cup
-
34234002600 Washer M10Washer M10
-
35234001410 Washer M10Washer M10
-
36233401414 Lock Spring M10Lock Spring M10
-
37232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
38205505044 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
39234001410 Washer M10Washer M10
-
40605353958 ShaftShaft
-
41605355096 LimiterLimiter
-
425343471 ShaftShaft
-
43205505044 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
44234001410 Flat Washer M10Flat Washer M10
-
455341633 Tensioner HousingTensioner Housing
-
46205484546 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
47233281414 Nut M8Nut M8
-
48230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
49232006414 Nut M10Nut M10
-
50232500416 Nut M10Nut M10
-
51503190429 AxleAxle
-
52207303544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
53503190439 WasherWasher
-
54503192771 Cap WheelCap Wheel
-
55503192771 Cap WheelCap Wheel
-
56503190434 Labyrinth SealLabyrinth Seal
-
57503190428 SpacerSpacer
-
58503192140 Wheel 165mm. Includes 58 To 60Wheel 165mm. Includes 58 To 60
-
59503190396 Ball BearingBall Bearing
-
60415129371 CirclipCirclip
-
61503192676 Wheel 165mm. Includes 61 To 63Wheel 165mm. Includes 61 To 63
-
62503190396 Ball BearingBall Bearing
-
63415129371 CirclipCirclip
-
64503190430 SpacerSpacer
-
65503190432 WasherWasher
