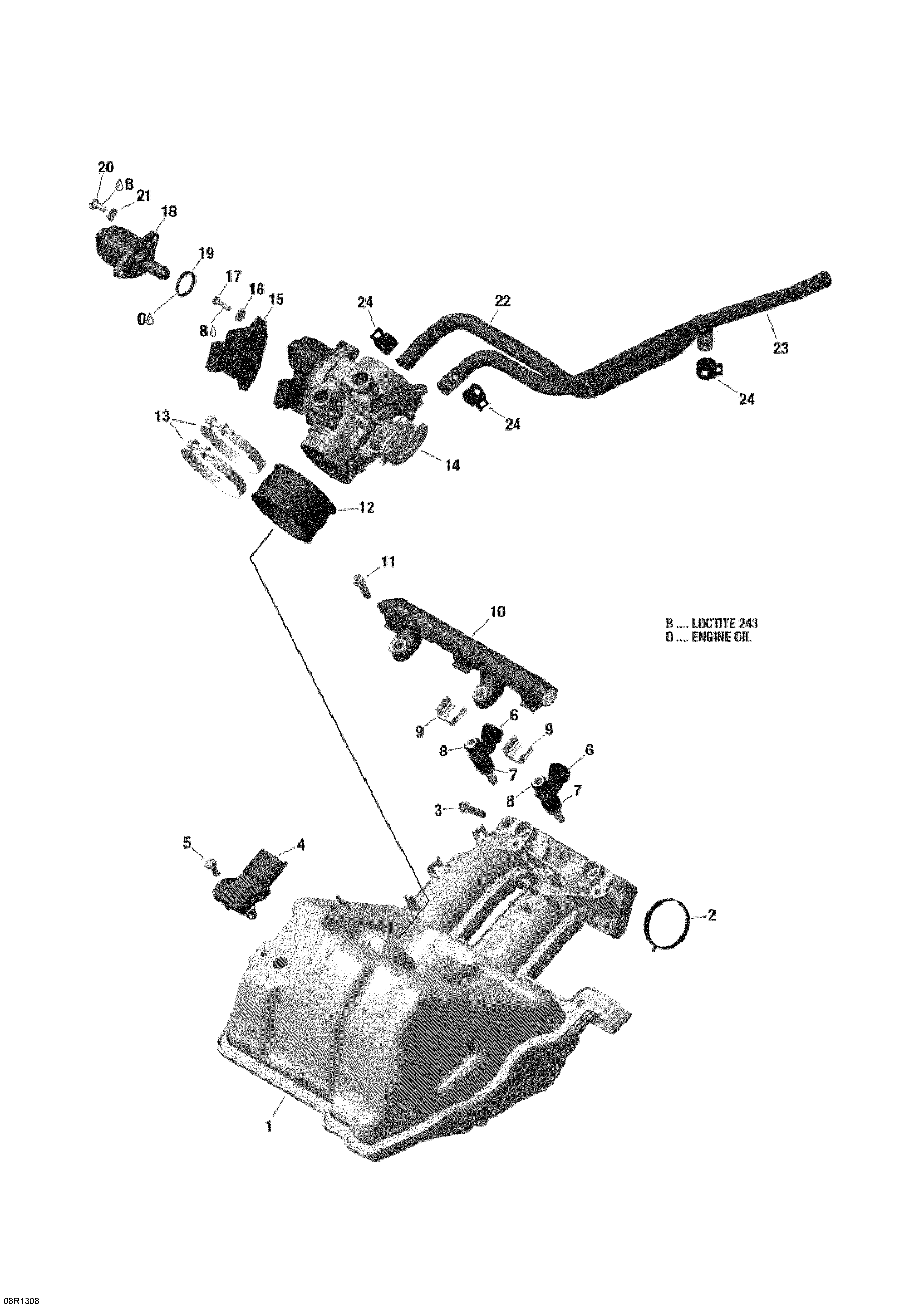

02- Air Intake Manifold And Throttle Body для BRP Lynx Xtrim 600 ACE - 2013

№

Артикул

Название
1

420867020 Airbox Ass'y. Includes 1 To 2

Airbox Ass'y. Includes 1 To 2

68 530 ₽
2

420431660 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

900 ₽
3

420440647 Hex./Torx Flange Screw M6 x 30. Tightening Torque 11 Nm +/- 12%

Hex./Torx Flange Screw M6 x 30. Tightening Torque 11 Nm +/- 12%

740 ₽
4

707000995 Pressure/Temp Sensor

Pressure/Temp Sensor

18 180 ₽
5

420641583 Torx PT Screw M6 x 16. Tightening Torque 6 Nm +/- 12%

Torx PT Screw M6 x 16. Tightening Torque 6 Nm +/- 12%

850 ₽
6

420874838 Injection Valve Deka VII Type 0. Includes 6 To 8

Injection Valve Deka VII Type 0. Includes 6 To 8

15 600 ₽
7

420431890 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

2 260 ₽
8

420631220 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

4 900 ₽
9

420853030 Injector Clip

Injector Clip

1 120 ₽
10

420874960 Fuel Rail

Fuel Rail

1 200 ₽
11

420440234 Hex./Torx Flange Screw M6 x 25. Tightening Torque 11 Nm +/- 12%

Hex./Torx Flange Screw M6 x 25. Tightening Torque 11 Nm +/- 12%

1 120 ₽
12

420460495 Connecting Socket

Connecting Socket

3 090 ₽
13

420251480 Hose Clamp. Tightening Torque 0,7 Nm +/- 12%

Hose Clamp. Tightening Torque 0,7 Nm +/- 12%

4 900 ₽
14

420296879 Throttle Body Ass'y. Includes 14 To 21

Throttle Body Ass'y. Includes 14 To 21

30 710 ₽
18

420665940 Idle Air Control Valve

Idle Air Control Valve

14 180 ₽
19

420631780 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

1 540 ₽
20

420440911 Binding Head Screw M5 x 16. Tightening Torque 4,5 Nm +/- 12%

Binding Head Screw M5 x 16. Tightening Torque 4,5 Nm +/- 12%

1 280 ₽
21

420845710 Snap Ring

Snap Ring

380 ₽
22

420460910 Molded Hose

Molded Hose

1 590 ₽
23

420460915 Molded Hose

Molded Hose

2 180 ₽
24

420853511 Spring Type Clamp

Spring Type Clamp

2 440 ₽
B

293800060 Loctite 243, 10ml

Loctite 243, 10ml

2 760 ₽
