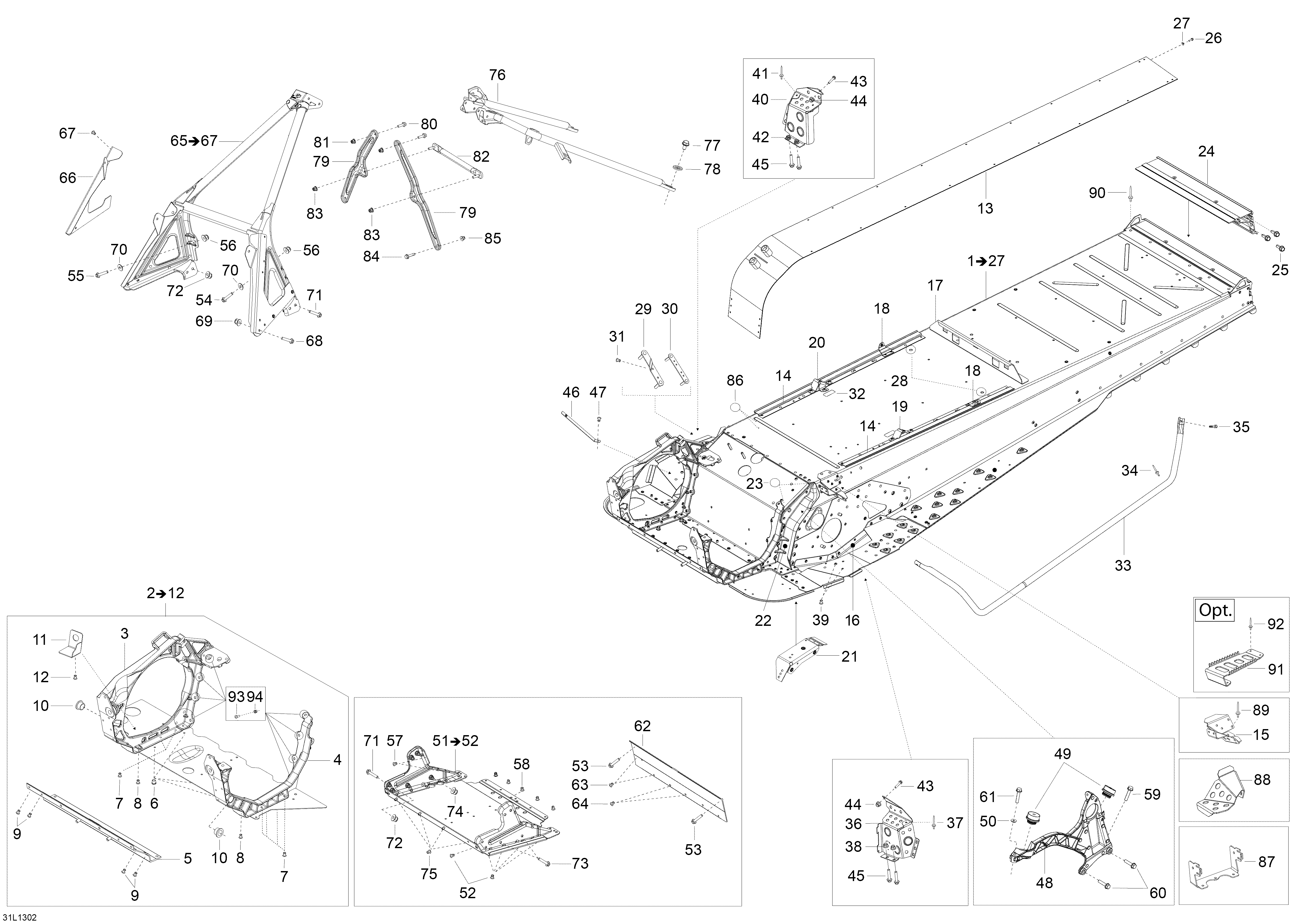

09- Frame для BRP Lynx 59 YETI 600 ACE - 2013
-
№АртикулНазвание
-
1518326987 Frame. Includes 1 To 27Frame. Includes 1 To 27
-
2518326518 Module E. Includes 2 To 12Module E. Includes 2 To 12
-
3518326328 RH MemberRH Member
-
4518326330 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 CushionCushion
-
11518327185 Muffler SupportMuffler Support
-
12293150163 RivetRivet
-
13509000645 Tunnel RadiatorTunnel Radiator
-
14518326107 Fastening RailFastening Rail
-
15605355235 Fastening BracketFastening Bracket
-
17518325986 Battery SupportBattery Support
-
18518327457 Seat Box BracketSeat Box Bracket
-
19518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
20518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
21518326430 Clinch Nut PlateClinch Nut Plate
-
22518325524 Frame Corner LHFrame Corner LH
-
22518325526 Frame Corner RHFrame Corner RH
-
23518325560 Adhesive PatchAdhesive Patch
-
24518327194 Rear ProfileRear Profile
-
25207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
26205061244 Socket Screw M6 x 12Socket Screw M6 x 12
-
28518325560 Adhesive PatchAdhesive Patch
-
29518326123 Gearbox Counter Plate FrontGearbox Counter Plate Front
-
30518326124 Gearbox Counter Plate RearGearbox Counter Plate Rear
-
31390402200 Pop Rivet 3/16Pop Rivet 3/16
-
32518326357 Rubber CoverRubber Cover
-
33518326963 Footboard Support Tube LHFootboard Support Tube LH
-
33518326964 Footboard Support Tube RHFootboard Support Tube RH
-
34390909100 RivetRivet
-
35207662086 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
36518326671 Toe Hook LHToe Hook LH
-
37390909200 RivetRivet
-
38605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
39414644300 DartDart
-
40518326672 Toe Hook RHToe Hook RH
-
41390909200 RivetRivet
-
42605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
43207662086 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
44233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
45250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
46514054616 Spring BracketSpring Bracket
-
47390909200 RivetRivet
-
48518327534 Pulley SupportPulley Support
-
49512060295 Rubber MountRubber Mount
-
50234281474 Washer-Spring ConicalWasher-Spring Conical
-
51518326213 Module S Cross Member. Includes 51 To 52Module S Cross Member. Includes 51 To 52
-
52390909200 RivetRivet
-
53210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
54207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
55207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
56233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
57390909100 RivetRivet
-
58390909200 RivetRivet
-
59207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
60207583586 Hex. Flange Screw M8 x 35Hex. Flange Screw M8 x 35
-
61207584044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
62518326140 Engine SupportEngine Support
-
63390909100 RivetRivet
-
64293150119 RivetRivet
-
65518326754 Front Member Ass'y. Includes 65 To 67Front Member Ass'y. Includes 65 To 67
-
66502007077 Bumper Fastener LHBumper Fastener LH
-
66502007078 Bumper Fastener RHBumper Fastener RH
-
67390909200 RivetRivet
-
68207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
69233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
70224061201 Flat WasherFlat Washer
-
71207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
72233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
73207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
74233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
75390909200 RivetRivet
-
76518326103 Upper Support TubeUpper Support Tube
-
77207662086 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
79518326848 Upper ColumnUpper Column
-
80207662086 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
81233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
82518326355 Upper ColumnUpper Column
-
83233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
84250000522 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
85233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
86518325560 Adhesive PatchAdhesive Patch
-
87515177073 Fusebox SupportFusebox Support
-
88518325626 Brake Hose CoverBrake Hose Cover
-
89390909200 RivetRivet
-
90293150174 RivetRivet
-
91520000492 Footrest (Opt.)Footrest (Opt.)
-
92390909100 RivetRivet
-
93207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
94233261414 Elastic Flange Nut M6Elastic Flange Nut M6
