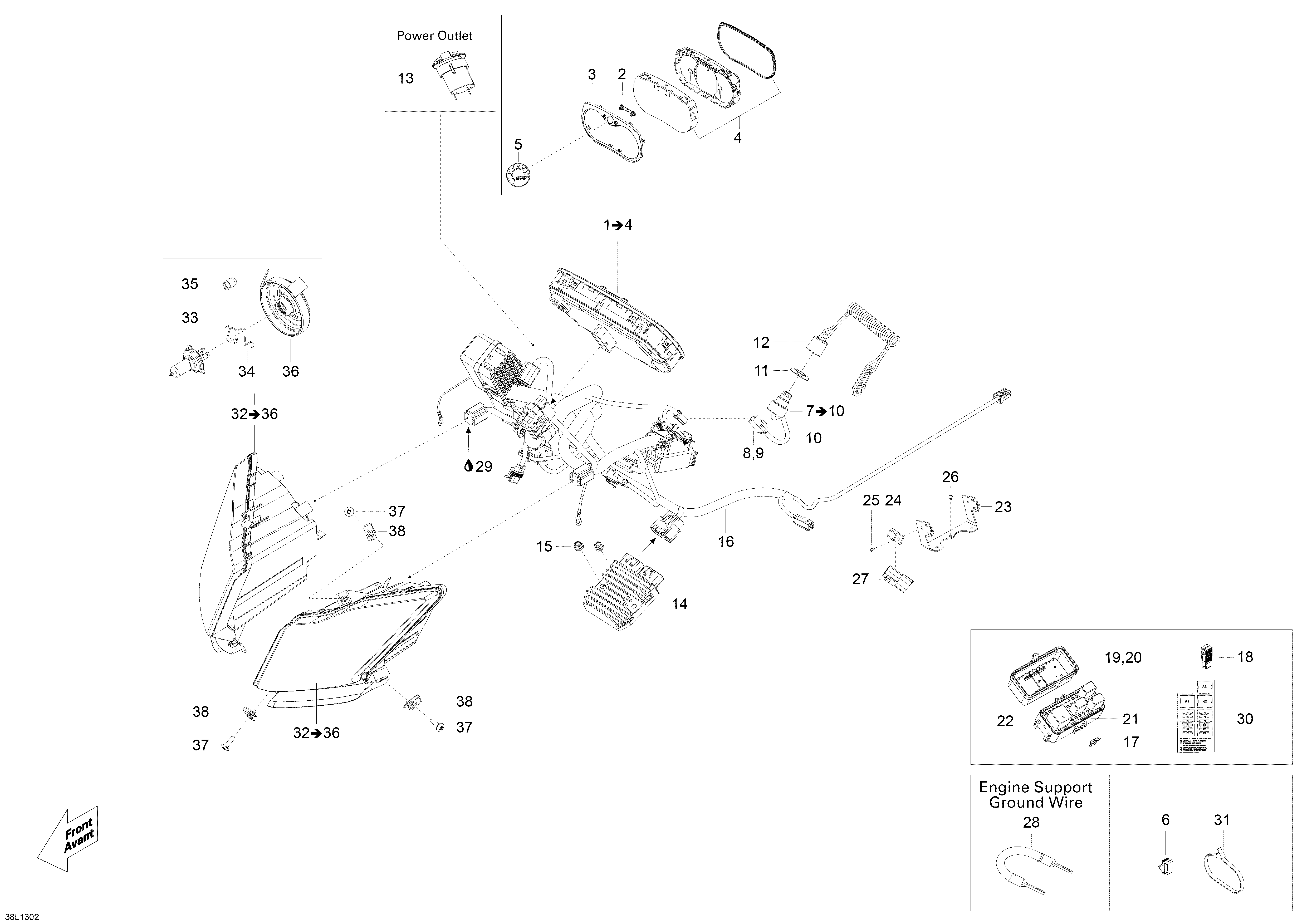

10- Electrical System для BRP Lynx 59 YETI 600 ACE - 2013
-
№АртикулНазвание
-
1515177395 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5219902677 BRP LogoBRP Logo
-
6414227300 Spring ClipSpring Clip
-
7515177249 Dess Switch. Includes 7 To 10Dess Switch. Includes 7 To 10
-
8515175232 Male TerminalMale Terminal
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10409902000 Tubing 12mmTubing 12mm
-
11278000508 Safety Switch NutSafety Switch Nut
-
12515177057 DESS CapDESS Cap
-
13710001248 Power Outlet DCPower Outlet DC
-
14515177325 RegulatorRegulator
-
15233261414 Nut Elastic Flange M6Nut Elastic Flange M6
-
16515177075 Main HarnessMain Harness
-
17710000742 Fuse 5AFuse 5A
-
17710000743 Fuse 7,5AFuse 7,5A
-
17710000744 Fuse 10AFuse 10A
-
17710000745 Fuse 15AFuse 15A
-
17710000746 Fuse 20AFuse 20A
-
17710000747 Fuse 30AFuse 30A
-
18710000781 Fuse Puller ToolFuse Puller Tool
-
19710001026 Fuse Box CoverFuse Box Cover
-
20278002172 FoamFoam
-
21710000660 Fuse Box Base Ass'yFuse Box Base Ass'y
-
22515176775 Relay 50ARelay 50A
-
22515176774 Relay 30ARelay 30A
-
23515177073 Fusebox SupportFusebox Support
-
24270000141 ClipClip
-
25293150037 RivetRivet
-
26390402200 Pop Rivet 3/16Pop Rivet 3/16
-
27515176234 Female Terminal HousingFemale Terminal Housing
-
28515176883 Ground WireGround Wire
-
29293550004 Dielectric GreaseDielectric Grease
-
30516004376 Decal, FuseboxDecal, Fusebox
-
31414115200 Tie Rap 180mmTie Rap 180mm
-
31293750001 Tie-Rap 94mmTie-Rap 94mm
-
31293750002 Tie-Rap 130mmTie-Rap 130mm
-
32517304194 Headlamp RH. Includes 32 To 36Headlamp RH. Includes 32 To 36
-
32517304195 Headlamp LH. Includes 32 To 36Headlamp LH. Includes 32 To 36
-
33515176274 Halogen Bulb, 60/55W, 12VHalogen Bulb, 60/55W, 12V
-
35515176498 CapCap
-
36515176499 CoverCover
-
37250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
38250100113 Pannel Nut M6 x 1.0Pannel Nut M6 x 1.0
