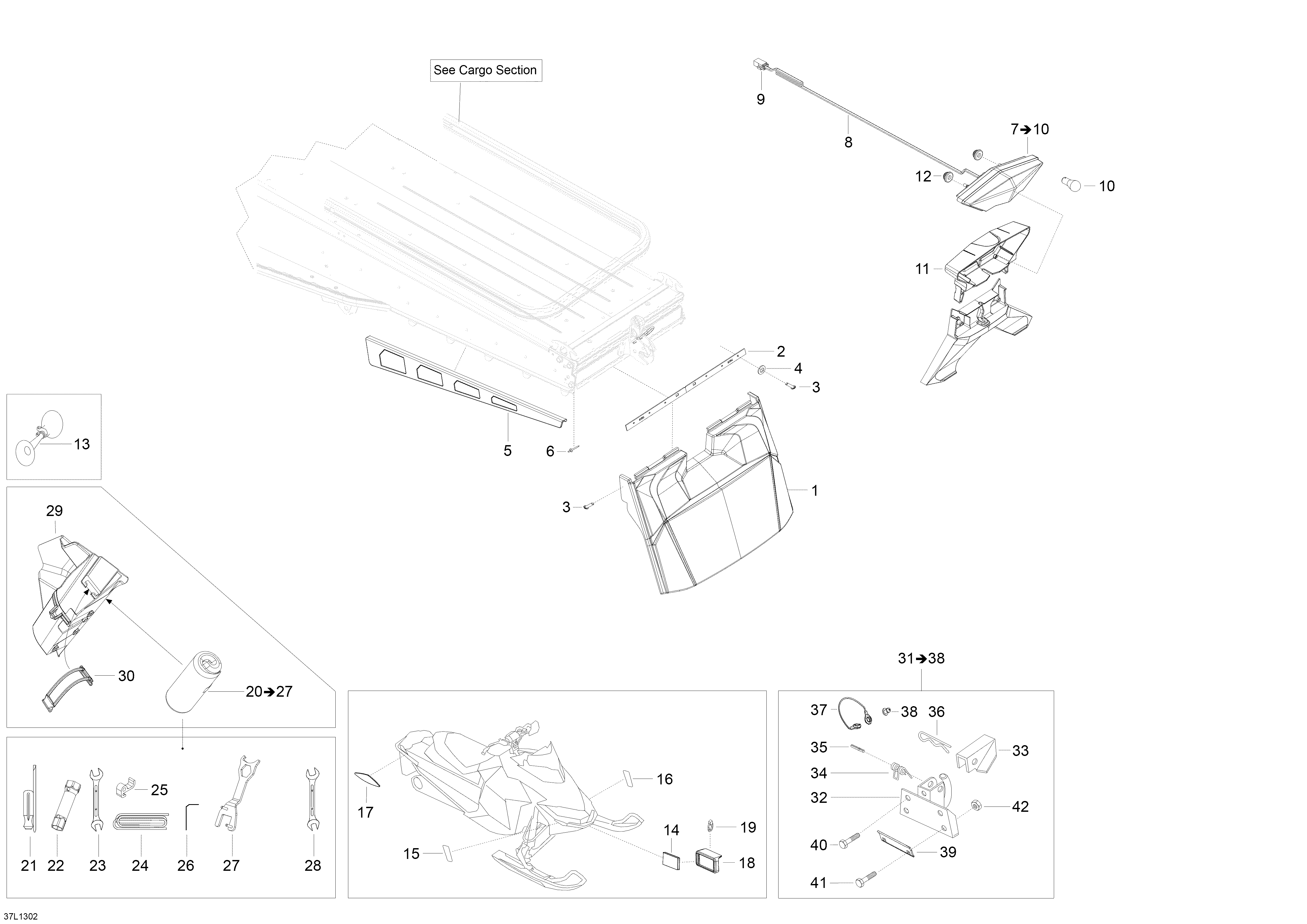

09- Utilities для BRP Lynx 59 YETI 600 ACE - 2013
-
№АртикулНазвание
-
1520000989 Snow GuardSnow Guard
-
2520001021 Fastening PlateFastening Plate
-
3732600030 Forming ScrewForming Screw
-
4250200025 Washer M5Washer M5
-
5520000693 Protector RHProtector RH
-
5520000694 Protector LHProtector LH
-
6293150163 RivetRivet
-
7520000848 Rear Light. Includes 7 To 10Rear Light. Includes 7 To 10
-
8520000849 Wiring HarnessWiring Harness
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10520000758 BulbBulb
-
11511000764 Rear Light SupportRear Light Support
-
12705003666 GrommetGrommet
-
13549011291 HornHorn
-
1421118 Reflector BrightReflector Bright
-
15520000843 Reflector RHReflector RH
-
16520000844 Reflector LHReflector LH
-
17705002423 Reflector AMBERReflector AMBER
-
18520000871 Reflector SupportReflector Support
-
1927120 Tie RapTie Rap
-
20529000065 Tool Kit. Includes 20 To 27Tool Kit. Includes 20 To 27
-
21529000004 Screw DriverScrew Driver
-
22529000046 Socket WrenchSocket Wrench
-
23529000002 Fork WrenchFork Wrench
-
24412500200 Starter RopeStarter Rope
-
25529000060 Starter GripStarter Grip
-
26520001142 KeyKey
-
27520000988 WrenchWrench
-
2834017 WrenchWrench
-
29520000894 Tool Kit RackTool Kit Rack
-
30520000528 LatchLatch
-
31520001039 Hitch Ass'y. Includes 31 To 38Hitch Ass'y. Includes 31 To 38
-
32520001040 HookHook
-
33520001041 Locking PlateLocking Plate
-
34545693 SpringSpring
-
3541012 Spring Pin 6 x 30Spring Pin 6 x 30
-
3641029 Cotter SpringCotter Spring
-
375446839 Retainer CableRetainer Cable
-
38390909100 RivetRivet
-
39520000727 PlatePlate
-
40207782544 Screw M8 x 25Screw M8 x 25
-
41207784044 Screw M8 x 40Screw M8 x 40
-
42233281414 Elastic Flange Nut M8Elastic Flange Nut M8
