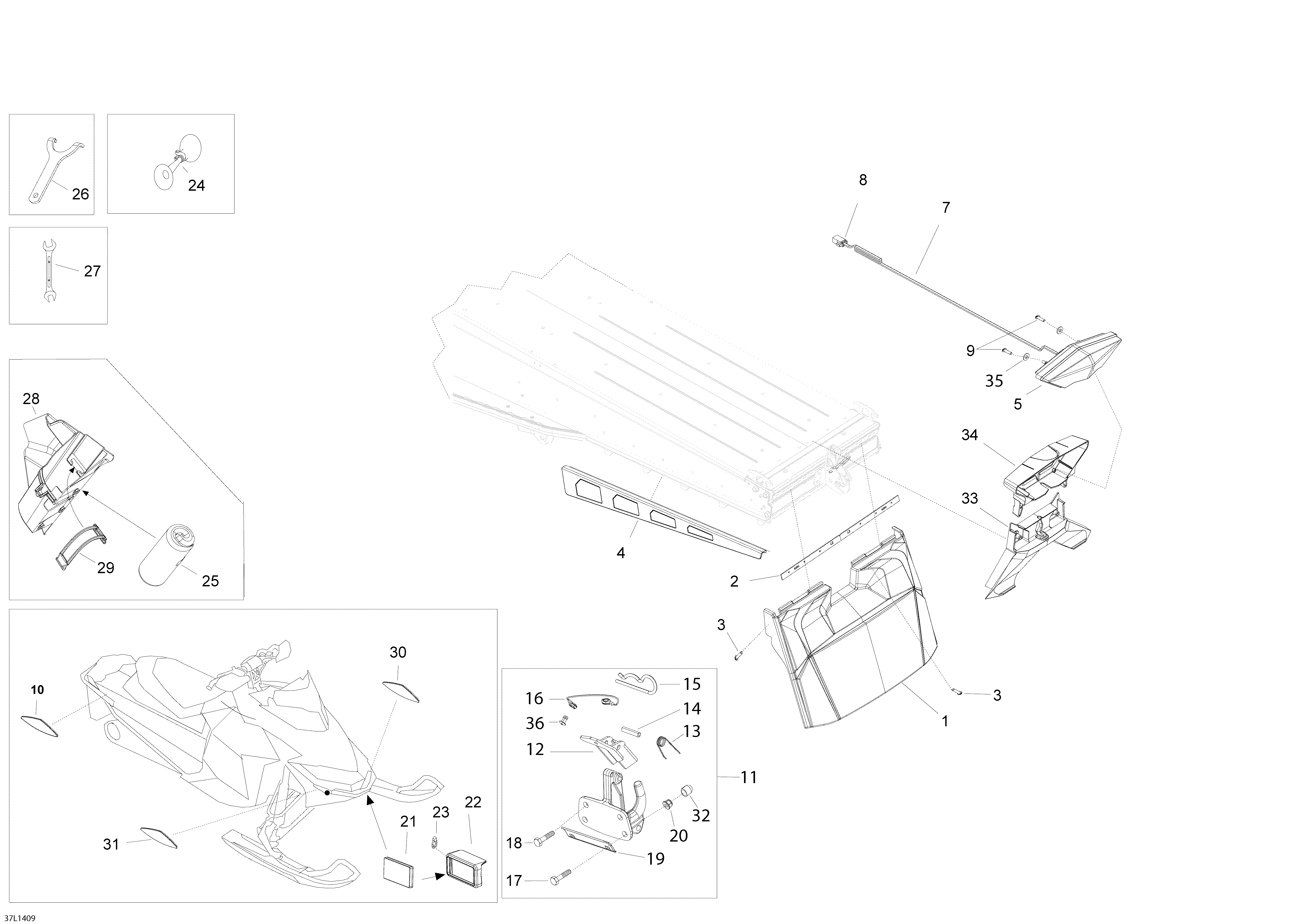

09- Utilities для BRP Lynx Adventure GT 600 E-TEC - 2014
-
№АртикулНазвание
-
1520001407 Snow Guard Lynx 500 Long BlackSnow Guard Lynx 500 Long Black
-
2520001021 Fastening Plate 500Fastening Plate 500
-
3250000676 Screw formingScrew forming
-
4520000693 Snow guard R.H.Snow guard R.H.
-
4520000694 Snow guard L.H.Snow guard L.H.
-
5520000692 Rear lightRear light
-
7520000849 Wiring HarnessWiring Harness
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
940611 Screw plastofaxScrew plastofax
-
10705002423 ReflectorReflector
-
11520001040 HookHook
-
12520001041 Locking PlateLocking Plate
-
13545693 SpringSpring
-
1441012 Spring Pin 6 x 30Spring Pin 6 x 30
-
1541029 Cotter SpringCotter Spring
-
165446839 Retainer CableRetainer Cable
-
17207784044 Bolt 8 x 40Bolt 8 x 40
-
18207782544 Bolt 8 x 25Bolt 8 x 25
-
19520000727 Bolt plateBolt plate
-
20233281414 Flanged nut M8Flanged nut M8
-
2121118 Reflector brightReflector bright
-
22520000871 Reflector supportReflector support
-
2327120 Tie rapTie rap
-
24549011291 HornHorn
-
25529000065 Tool kitTool kit
-
26529035582 Adjusting wrenchAdjusting wrench
-
2734017 WrenchWrench
-
28520000720 Tool kit rackTool kit rack
-
29520000528 Fastening rubberFastening rubber
-
30520000844 Reflector LHReflector LH
-
31520000843 Reflector RHReflector RH
-
3228056 Cover plugCover plug
-
33511000559 SupportSupport
-
34511000763 Rear light coverRear light cover
-
35250200025 Washer M5Washer M5
-
36390909100 Avex RivetAvex Rivet
