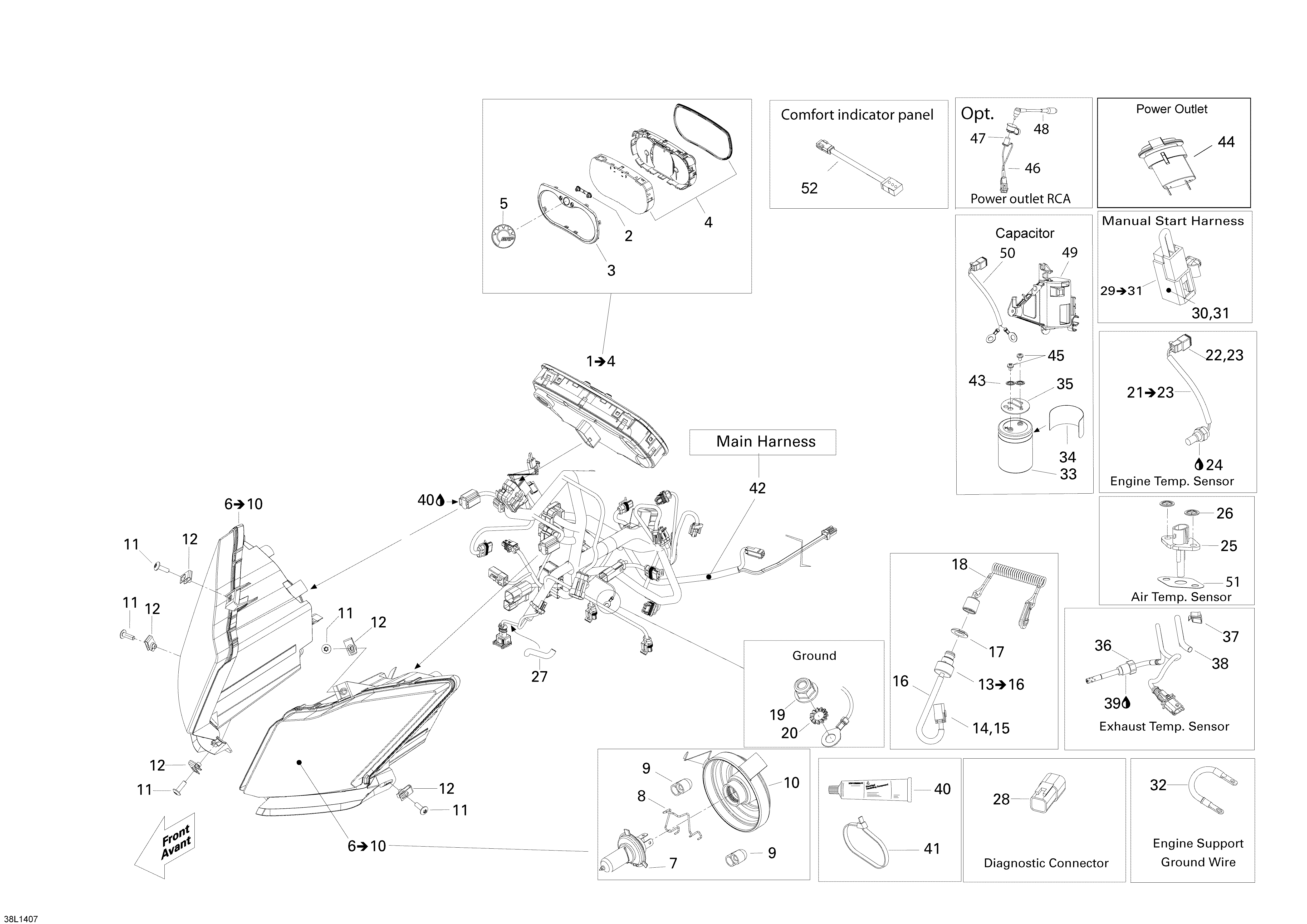

10- Electrical System для BRP Lynx Adventure GT 600 E-TEC - 2014
-
№АртикулНазвание
-
1515177524 Speedometer Ass'y. Includes 1 to 4Speedometer Ass'y. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6517304194 Headlamp RH. Includes 6 to 10Headlamp RH. Includes 6 to 10
-
6517304195 Headlamp LH. Includes 6 to 10Headlamp LH. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250100113 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
13515177249 Dess Switch. Includes 13 to 16Dess Switch. Includes 13 to 16
-
14515175232 Male TerminalMale Terminal
-
15515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
16409902000 Tubing 12 mmTubing 12 mm
-
17278002963 Safety Switch NutSafety Switch Nut
-
18515177057 DESS CapDESS Cap
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
21515177471 Temperature Sensor. Includes 21 to 23Temperature Sensor. Includes 21 to 23
-
22515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
23278000632 Female TerminalFemale Terminal
-
24293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
25515176366 Air Temperature SensorAir Temperature Sensor
-
26389804300 Push NutPush Nut
-
27515175442 Tubing 6 mmTubing 6 mm
-
28278002704 Diagnostic Connector CapDiagnostic Connector Cap
-
29515176661 Manual Start Harness. Includes 29 to 31Manual Start Harness. Includes 29 to 31
-
30515175232 Male TerminalMale Terminal
-
31710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
32515177289 Ground WireGround Wire
-
33515177272 CapacitorCapacitor
-
34516005515 Capacitor DecalCapacitor Decal
-
35515177193 CapCap
-
36514054641 Temperature SensorTemperature Sensor
-
37414227300 ClipClip
-
38515175442 Tubing 6 mmTubing 6 mm
-
39293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
40293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
41293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
41293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
42515177502 Main HarnessMain Harness
-
43250200026 Lock washerLock washer
-
44710001248 Power Outlet-DCPower Outlet-DC
-
45250000462 Screw 10-32 X 5/16''Screw 10-32 X 5/16''
-
46515177187 Power outlet harness RCA, Opt.Power outlet harness RCA, Opt.
-
47572103300 Cap, Opt.Cap, Opt.
-
48515175851 Extension harness RCA, Opt.Extension harness RCA, Opt.
-
49515176607 Capacitor supportCapacitor support
-
50515176605 Capacitor harnessCapacitor harness
-
51508000769 Seal ringSeal ring
-
52515177377 Comfort incidator panelComfort incidator panel
