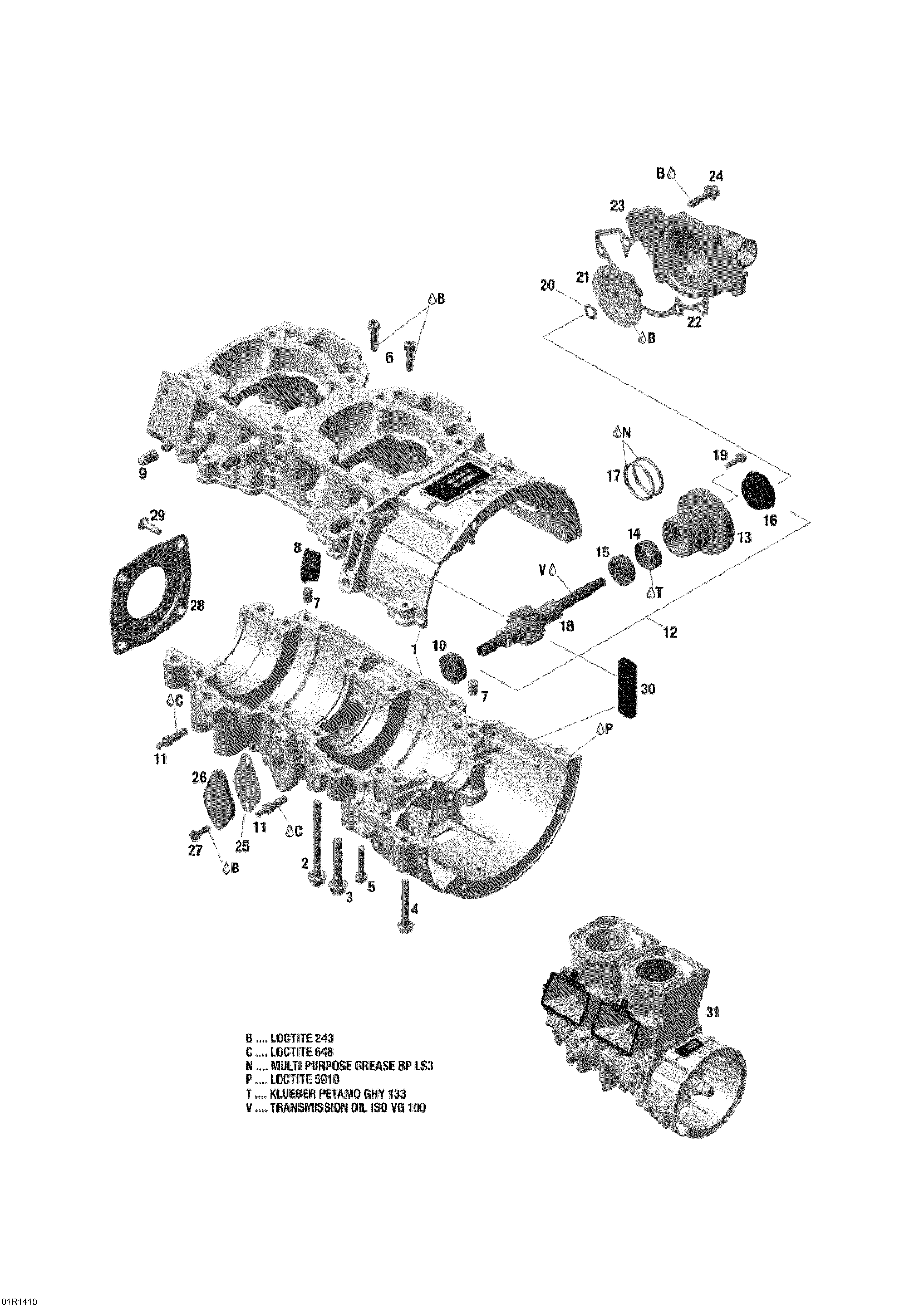

01- Crankcase And Water Pump для BRP Lynx 49 Ranger 600 E-TEC - 2014
-
№АртикулНазвание
-
1420890222 Crankcase Ass'y. Includes 1 To 10Crankcase Ass'y. Includes 1 To 10
-
2420640836 Hex. Collar Screw M8 x 75. Tightening Torque 28-30 NmHex. Collar Screw M8 x 75. Tightening Torque 28-30 Nm
-
3420640431 Hex. Collar Screw M8 x 45. Tightening Torque 28-30 NmHex. Collar Screw M8 x 45. Tightening Torque 28-30 Nm
-
4420640311 Hex. Collar Screw M6 x 45. Tightening Torque 8-10 NmHex. Collar Screw M6 x 45. Tightening Torque 8-10 Nm
-
5205063044 Socket Head Screw M6 x 30. Tightening Torque 8-10 NmSocket Head Screw M6 x 30. Tightening Torque 8-10 Nm
-
6420840401 Socket Head Screw M6 x 22. Tightening Torque 8-10 NmSocket Head Screw M6 x 22. Tightening Torque 8-10 Nm
-
7420632010 Pin 8 x 12Pin 8 x 12
-
8420660890 Cable GrommetCable Grommet
-
9420960770 CapCap
-
10420232100 Ball BearingBall Bearing
-
11420956070 Check ValveCheck Valve
-
12420837421 Water Pump/Oil Pump Ass'y. Includes 12 To 18Water Pump/Oil Pump Ass'y. Includes 12 To 18
-
14420230195 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
15420232100 Ball BearingBall Bearing
-
16420650370 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
17420950890 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
19420840511 Allen Screw M5 x 16. Tightening Torque 5-6 NmAllen Screw M5 x 16. Tightening Torque 5-6 Nm
-
20420227945 WasherWasher
-
21420222505 Water Impeller. Tightening Torque 4-5 NmWater Impeller. Tightening Torque 4-5 Nm
-
22420931810 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
23420922630 Water Pump HousingWater Pump Housing
-
24420240034 Hex. Screw M6 x 25. Tightening Torque 12-14 NmHex. Screw M6 x 25. Tightening Torque 12-14 Nm
-
25420931566 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
26420810825 Cover PlateCover Plate
-
27420941925 Tapping Screw M5 x 16. Tightening Torque 5-6 NmTapping Screw M5 x 16. Tightening Torque 5-6 Nm
-
28420812420 Oil Seal CoverOil Seal Cover
-
29420941436 Socket Head Screw M6 x 20. Tightening Torque 10-12 NmSocket Head Screw M6 x 20. Tightening Torque 10-12 Nm
-
30420960925 Rubber StopperRubber Stopper
-
31300059353 Short Block 593 HO E-TECShort Block 593 HO E-TEC
-
B293800060 Loctite 243, 10mlLoctite 243, 10ml
-
C619600012 Loctite 648, 50mlLoctite 648, 50ml
-
P293800081 Loctite 5910, 300mlLoctite 5910, 300ml
-
T619600023 Grease, 400 gGrease, 400 g
