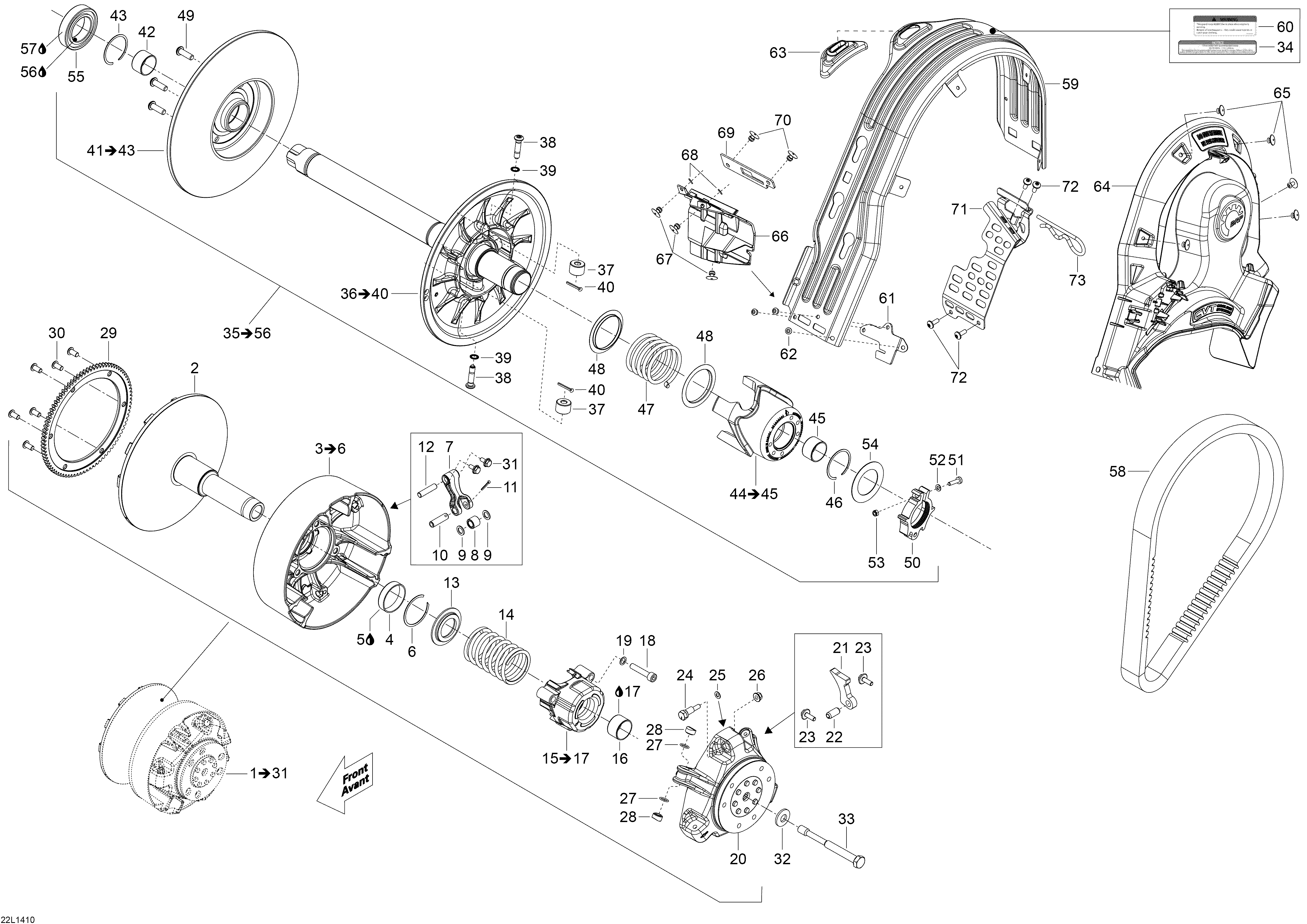

05- Pulley System для BRP Lynx 49 Ranger 600 E-TEC - 2014
-
№АртикулНазвание
-
2417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 To 6Sliding Flange Ass'y. Includes 3 To 6
-
4417222758 BushingBushing
-
5619600012 Loctite 609, 50mlLoctite 609, 50ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass?yLever Ass?y
-
8417222947 Roller Ass?yRoller Ass?y
-
9417004302 Stopper WasherStopper Washer
-
10417222594 PinPin
-
11250400060 Cotter PinCotter Pin
-
12417223164 Axle LeverAxle Lever
-
13417222312 Spring SeatSpring Seat
-
14414689800 Spring (Red / Red, 311-756N)Spring (Red / Red, 311-756N)
-
15417007500 Spring Cover Ass'y. Includes 15 To 17Spring Cover Ass'y. Includes 15 To 17
-
16417009204 BushingBushing
-
17619600012 Loctite 609, 50mlLoctite 609, 50ml
-
18205084044 Socket Head Screw M8 x 40Socket Head Screw M8 x 40
-
19250200009 Lock Washer 8mmLock Washer 8mm
-
20417223669 Governor CupGovernor Cup
-
21417222799 Ramp 433Ramp 433
-
22250400050 Spring Pin M10 x 22Spring Pin M10 x 22
-
23250000418 Hex. Flanged Screw M6 x 18, Scotch GripHex. Flanged Screw M6 x 18, Scotch Grip
-
24417223501 Calibration ScrewCalibration Screw
-
25417005600 WasherWasher
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27732401030 O RingO Ring
-
28417223271 Slider ShoeSlider Shoe
-
29417223042 Ring GearRing Gear
-
30250000533 Hex. Flanged Screw M8 x 16, Scotch GripHex. Flanged Screw M8 x 16, Scotch Grip
-
31250000412 Hex. Flanged Screw M6 x 12, Scotch GripHex. Flanged Screw M6 x 12, Scotch Grip
-
32250200144 Spring WasherSpring Washer
-
33417120000 Drive Pulley BoltDrive Pulley Bolt
-
34516005503 Decal, Notice, Drive Pulley BoltDecal, Notice, Drive Pulley Bolt
-
36417127389 Fixed Flange Ass'y. Includes 36 To 40Fixed Flange Ass'y. Includes 36 To 40
-
37417127016 RollerRoller
-
38417127294 StudStud
-
39250200009 Lock Washer 8mmLock Washer 8mm
-
40250400063 Spring Pin M3 x 30Spring Pin M3 x 30
-
41417127317 Sliding Flange Ass'y. Includes 41 To 43Sliding Flange Ass'y. Includes 41 To 43
-
42417127318 BushingBushing
-
43293370049 CirclipCirclip
-
44417127386 Cam Ass'y (40?XT). Includes 44 To 45Cam Ass'y (40?XT). Includes 44 To 45
-
45417127318 BushingBushing
-
46293370049 CirclipCirclip
-
47417127137 Spring (Green / Green, 800 / 1350N)Spring (Green / Green, 800 / 1350N)
-
48417127116 Swivel AbutmentSwivel Abutment
-
49250000283 Button Head Torx Screw M8 x 25Button Head Torx Screw M8 x 25
-
50415129604 Pulley Adjuster Ass'yPulley Adjuster Ass'y
-
51205052544 Socket HD Screw M5 x 25Socket HD Screw M5 x 25
-
52234051410 Flat Washer M5Flat Washer M5
-
53232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
54417127155 WasherWasher
-
55504152574 Ball BearingBall Bearing
-
56619600012 Loctite 609, 50mlLoctite 609, 50ml
-
57619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
58417300383 BeltBelt
-
59417300357 Belt GuardBelt Guard
-
60516004649 Warning Decal, Security Belt GuardWarning Decal, Security Belt Guard
-
61417300423 ReinforcementReinforcement
-
62390909200 RivetRivet
-
63417300381 GuideGuide
-
64417300439 CVT Air DuctCVT Air Duct
-
65293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
66417300422 Front Belt Guard BracketFront Belt Guard Bracket
-
67293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
68517225900 Flat WasherFlat Washer
-
69417300421 ReinforcementReinforcement
-
70390909100 RivetRivet
-
71417300448 Belt Guard BracketBelt Guard Bracket
-
72250000145 Torx Screw M5 x 14Torx Screw M5 x 14
-
73114045200 Hair PinHair Pin
